Name: Universal Seal with Barcode
SKU: 01-05-2501-01
Price: 181.50 EUR
Availability: InStock

Sealing a drum (drums) with Universal M Seal + Barcode

Sample jar seal - Universal M Seal + Barcode

Specifications

Property	Red · 28,5 cm	Red · 38,5 cm	Blue · 28,5 cm	Blue · 38,5 cm	Yellow · 28,5 cm	Yellow · 38,5 cm	Orange · 28,5 cm	Orange · 38,5 cm	Green · 28,5 cm	Green · 38,5 cm	White · 28,5 cm	White · 38,5 cm
Article number	01-05-2501-01	01-05-2502-01	01-05-2501-02	01-05-2502-02	01-05-2501-03	01-05-2502-03	01-05-2501-05	01-05-2502-05	01-05-2501-06	01-05-2502-06	01-05-2501-04	01-05-2502-04
Breaking strength	15 kg	15 kg	15 kg	15 kg	15 kg	15 kg	15 kg	15 kg	15 kg	15 kg	15 kg	15 kg
Colour	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White
Diameter	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm
Length	28,5 cm	38,5 cm	28,5 cm	38,5 cm	28,5 cm	38,5 cm	28,5 cm	38,5 cm	28,5 cm	38,5 cm	28,5 cm	38,5 cm
Material	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene
Numbering	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending
Printing	UM SEAL	UML SEAL	UM SEAL	UML SEAL	UM SEAL	UML SEAL	UM SEAL	UML SEAL	UM SEAL	UML SEAL	UM SEAL	UML SEAL
Size	28,5 cm	38,5 cm	28,5 cm	38,5 cm	28,5 cm	38,5 cm	28,5 cm	38,5 cm	28,5 cm	38,5 cm	28,5 cm	38,5 cm
Usable length	20 cm	30 cm	20 cm	30 cm	20 cm	30 cm	20 cm	30 cm	20 cm	30 cm	20 cm	30 cm
Industry	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics	Charity, Delivery, Industry, Retail and Supermarkets, Transport & Logistics
Application	Barrels, Collection tins	Barrels, Collection tins	Barrels, Collection tins	Barrels, Collection tins	Barrels, Collection tins	Barrels, Collection tins	Barrels, Collection tins	Barrels, Collection tins	Barrels, Collection tins	Barrels, Collection tins	Barrels, Collection tins	Barrels, Collection tins

Description

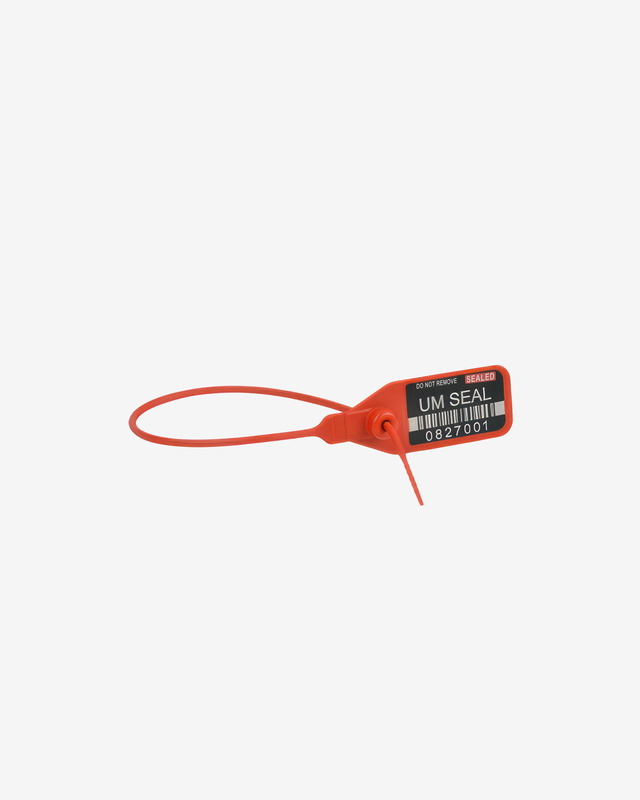

The Universal Seal with barcode is a versatile plastic security seal featuring a smooth 2.3 mm tail and an integrated 128C barcode for fast and error-free registration. By combining a unique serial number with a scannable code, administrative processing becomes faster and more reliable. The seal is available in two lengths: Medium (28 cm) and Large (39 cm), making it ideal for sealing tankers, IBC containers, and collection boxes.

128C Barcode for Accurate Registration

The Universal Seal is equipped with a 128C barcode printed on the flag of the seal. This barcode matches the unique serial number that is also visible in plain text. Each seal can therefore be verified manually or scanned electronically. The 128C barcode format is compatible with nearly all standard barcode scanners, eliminating the risk of registration errors.

Strong Seal with Smooth Tail

The Universal Seal has a 2.3 mm diameter and a smooth tail, allowing easy insertion through narrow openings without scratching or damaging surfaces. Subtle ridges at the end provide extra grip when tightening, ensuring a secure fit.

Reliable Stainless Steel Locking Mechanism

The internal locking mechanism consists of a stainless steel ring with hook-shaped teeth. This design ensures that the tail can only move in one direction and cannot be pulled back once inserted, preventing reuse and offering reliable tamper evidence.

Durable Polypropylene (PP) Construction

The Universal Seal with barcode is made from high-quality Polypropylene (PP), a material resistant to most chemicals and capable of withstanding temperatures from -40°C to +80°C. PP combines rigidity with flexibility, making the seal strong enough for industrial applications while remaining easy to handle.

Average Breaking Strength of 15 kg

With a breaking strength of 15 kg, the Universal Seal strikes the perfect balance between security and ease of use. The seal is difficult to open by hand and is classified as an indicative seal of medium strength — ideal for transport and storage purposes.

Excellent Readability and Customization

The white barcode and text are laser-engraved on a black background, ensuring high contrast and optimal legibility both visually and when scanned. Each seal features a unique serial number produced only once. On request, the Universal Seal can be customized with your company logo, name, or desired color.

Your Own Text or Logo?

Product Name: Universal Seal with Barcode
Seal Color: Red, Blue, White, Yellow, Orange, Green
Print Color: White
Text Printing Available: Yes
Logo Available: Yes
Unique Numbering Available: Yes
Barcode Available: Yes
Minimum Order Quantity: 1,000 pieces
Estimated Lead Time: Approximately 4–6 weeks

Please contact us for the current lead time.

Proven in practice

Free samples

Request free samples of this product and experience the quality for yourself.

Frequently asked questions

A Universal Seal with barcode is a plastic pull-tight seal (a seal you insert through an opening and pull tight) with a barcode on the flag and a breaking strength of 15 kg. This barcode corresponds to the seal's unique number and can be read with a scanner.

Alongside the barcode, the number also appears as a printed sequence on the seal, so it can be checked both by scanning and visually. The seal is made of polypropylene (PP) and is resistant to temperatures from -40 to +80°C.

Applications:

tanker trucks
IBC containers
logistics processes with registration

A seal with a barcode is used when numbers need to be registered quickly and without errors. Scanning the barcode prevents mistakes that occur when noting numbers down by hand.

For example, in transport. Instead of copying the number by hand, you scan the seal directly at departure and arrival. This saves time and prevents errors in registration.

Typical applications:

logistics and transport
inventory management
processes with tracking and control

The barcode on the seal contains the same number as the printed sequence. Scanning the barcode with a barcode scanner registers this number digitally right away.

The Universal Seal uses barcode type 128C. This is a widely used standard supported by most scanners.

In practice:

you scan the barcode
the number is registered automatically
manual entry isn't needed

You choose a Universal Seal with barcode when you need to register, check or trace seals. The barcode makes it possible to work quickly and prevent errors.

The seal is suitable for situations where many seals are used and noting them down by hand is too error-prone or time-consuming.

Typical situations:

transport with registration at departure and arrival
processes with many seals per day
situations where traceability matters
