Deck sockets

Navacqs offers high-quality deck sockets that allow twistlocks and lashing eyes to be mounted in a detachable configuration. This makes it possible to keep the deck of ships, trailers, or offshore structures free from protruding components when they are not in use. Ideal for situations requiring flexibility; such as alternating between transporting containers and heavy machinery.

Compatible with DF-31 and DF-66 twistlock systems

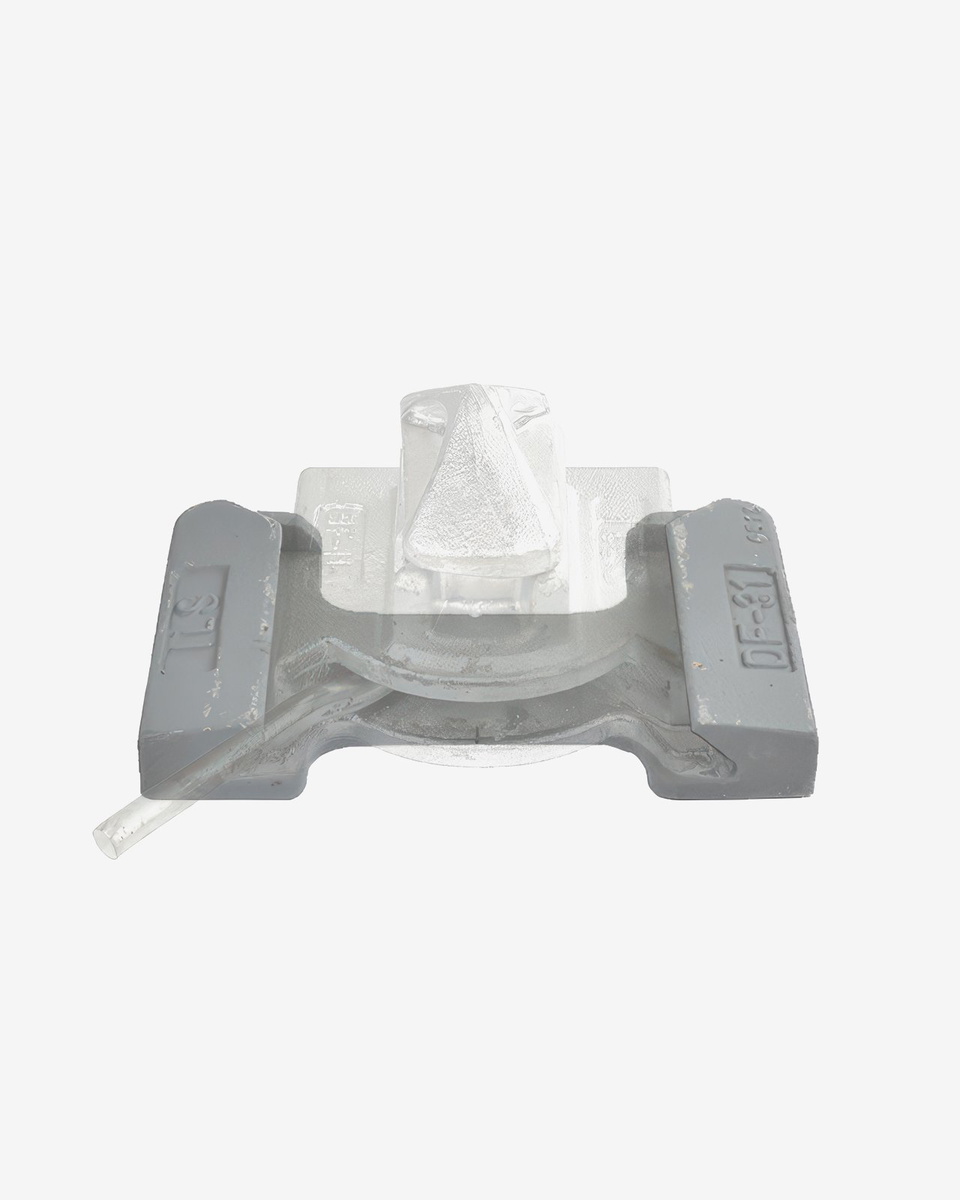

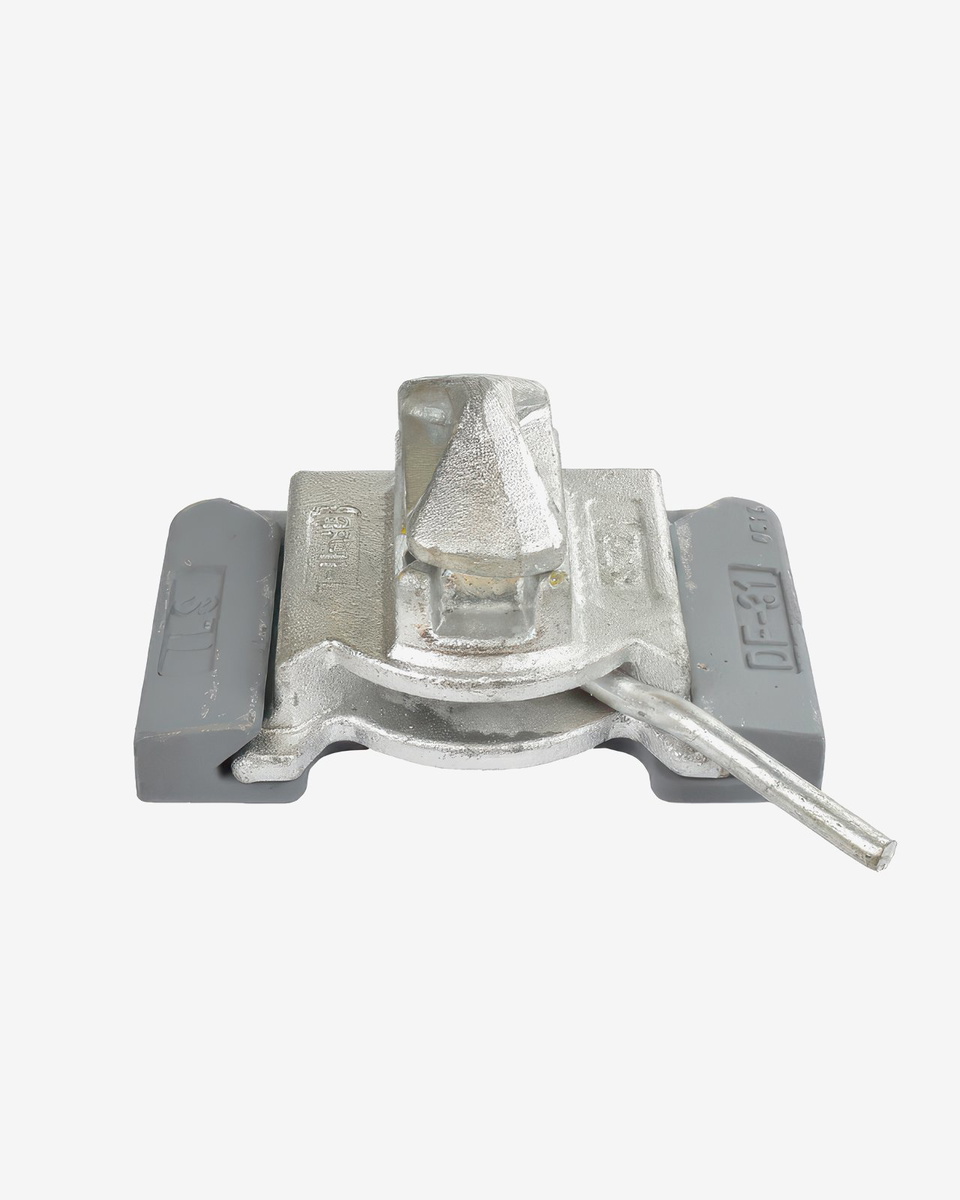

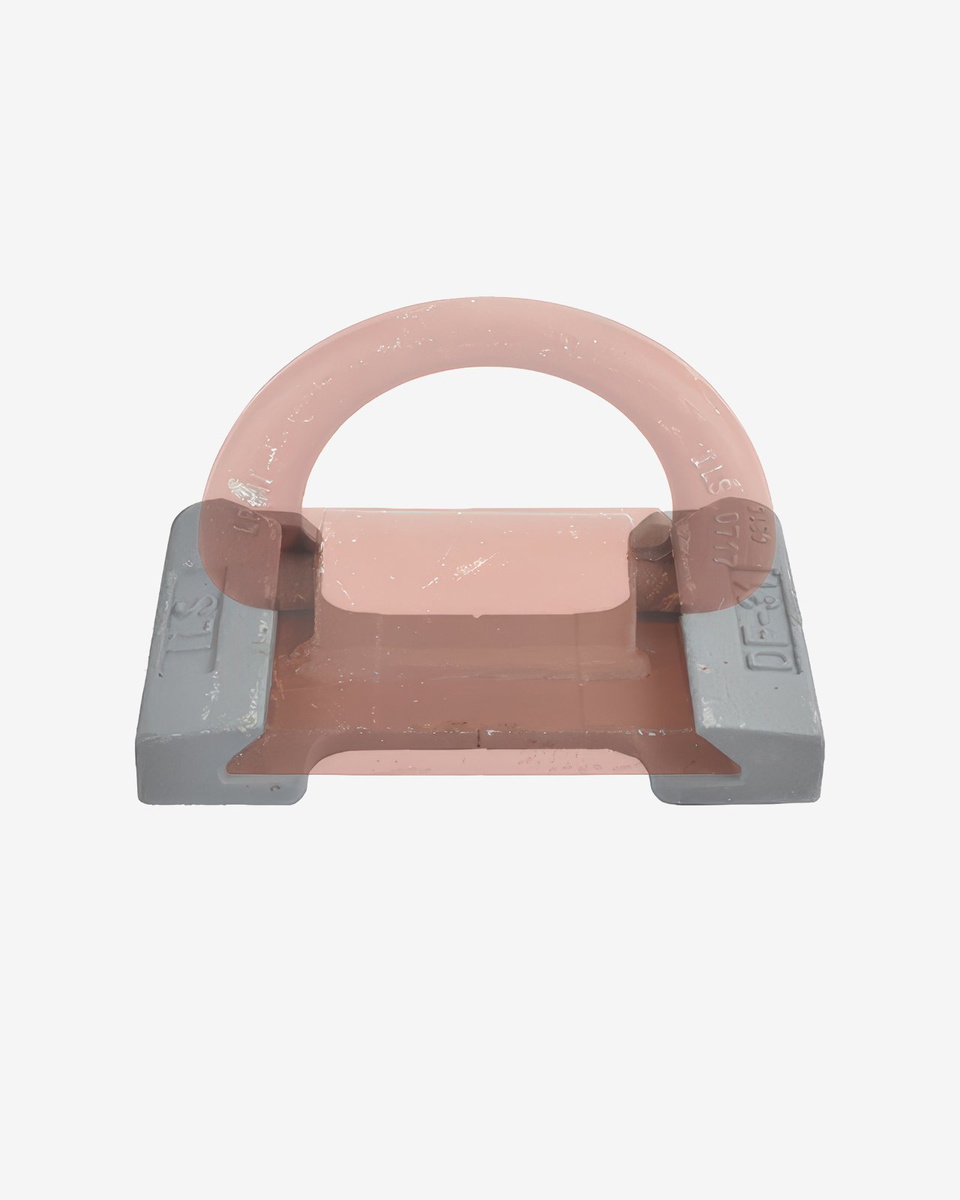

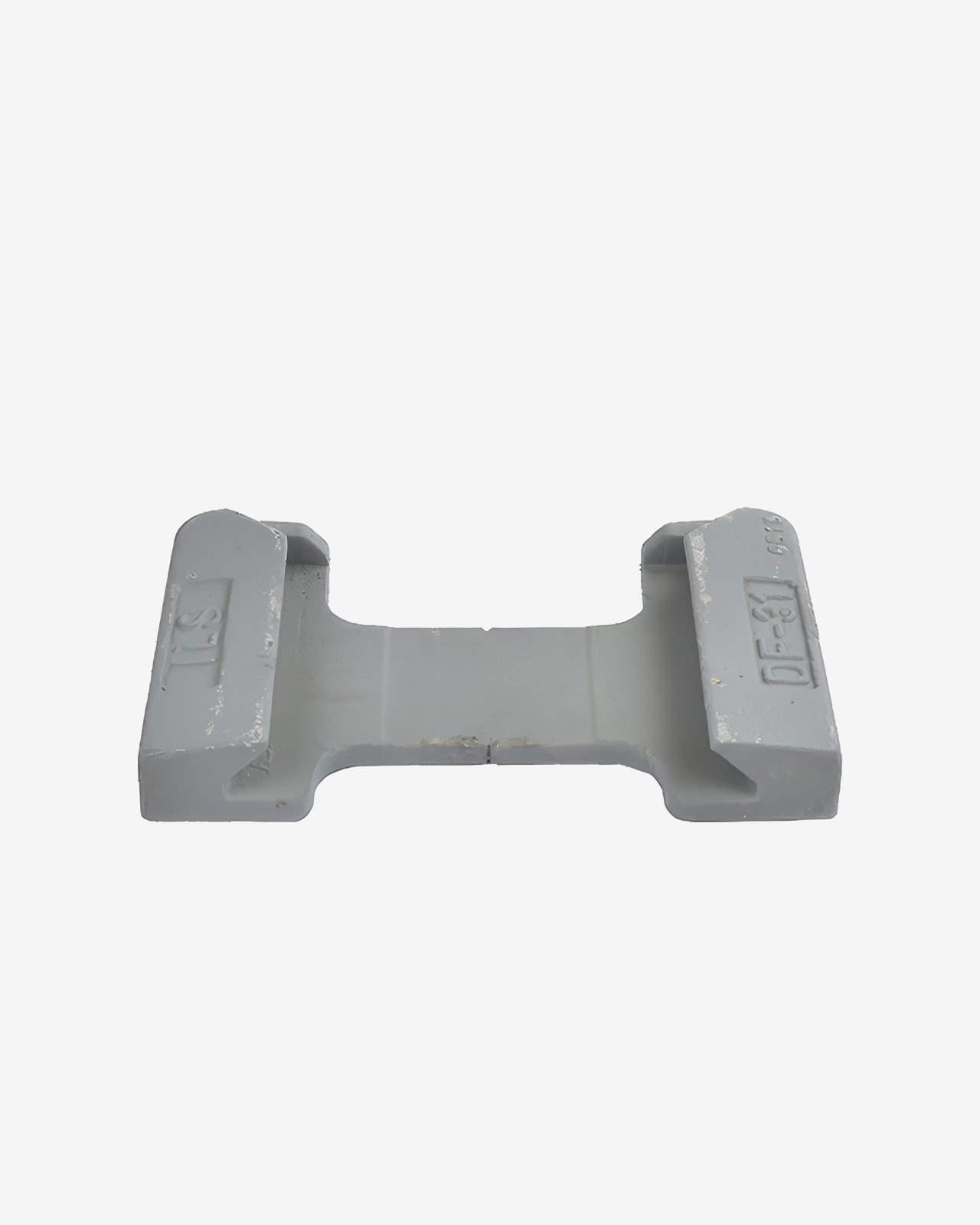

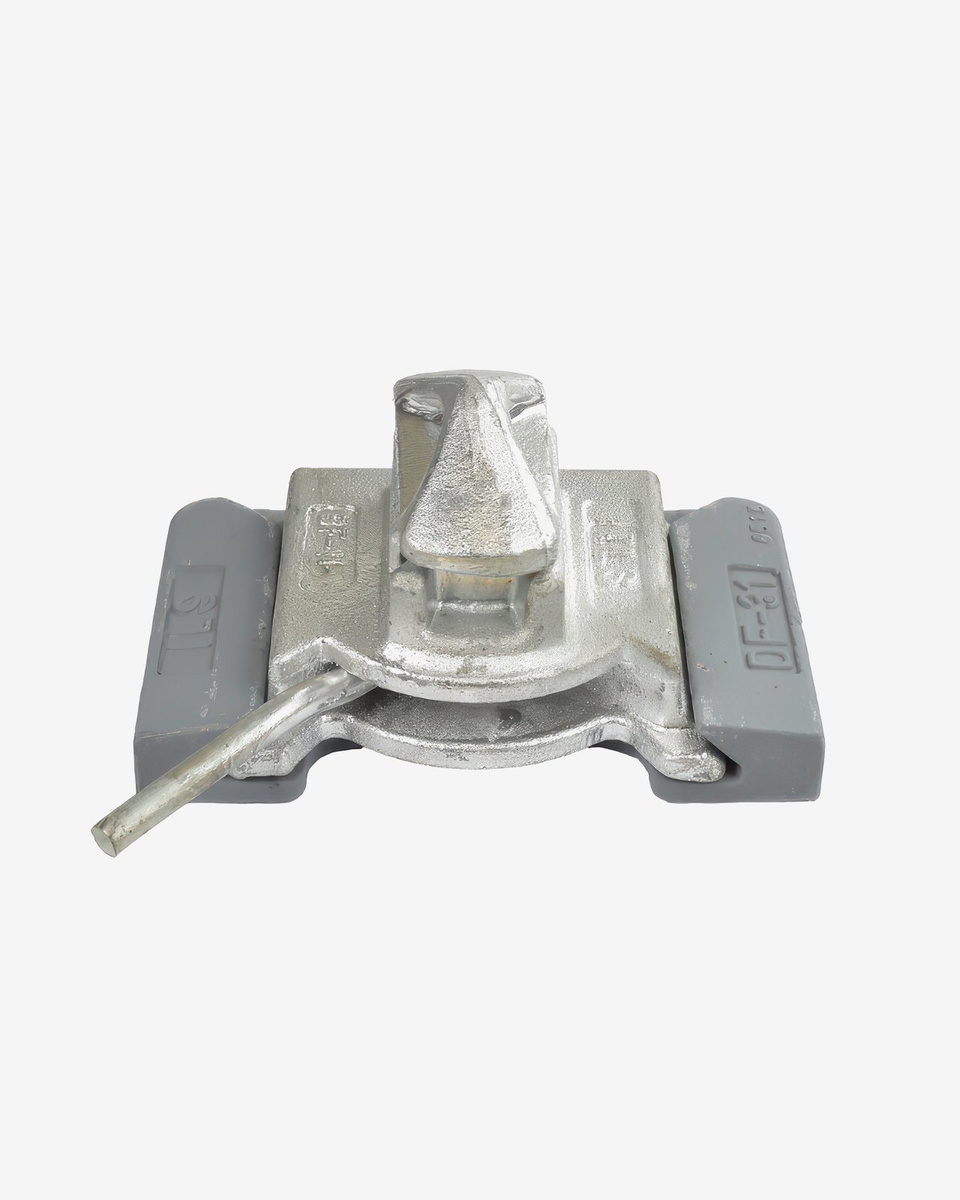

The Deck Socket DF-31 is compatible with the Dovetail Twistlock BF-11 and the LP-91-45 lashing eye. These components are inserted sideways into the plate and welded in opposite directions to prevent shifting.

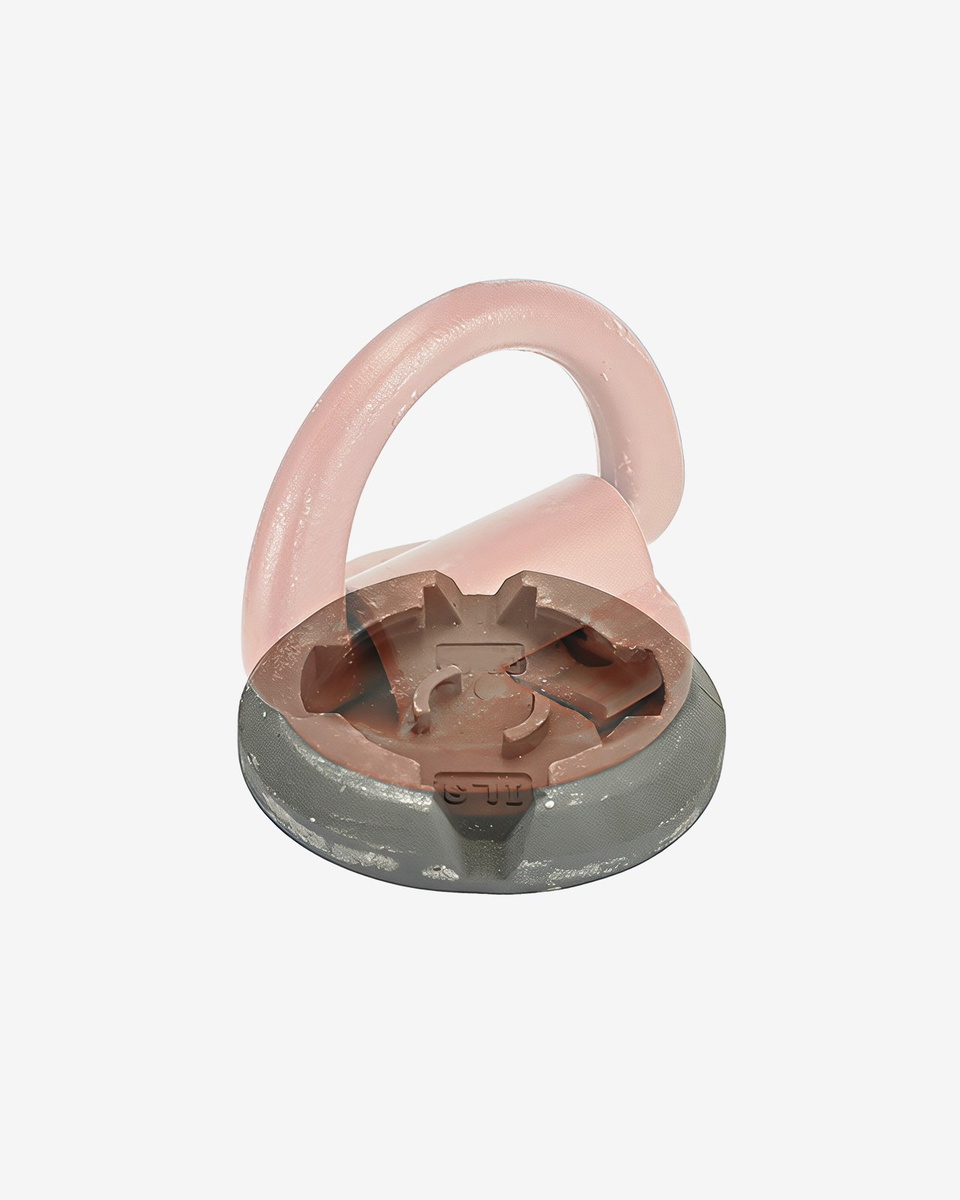

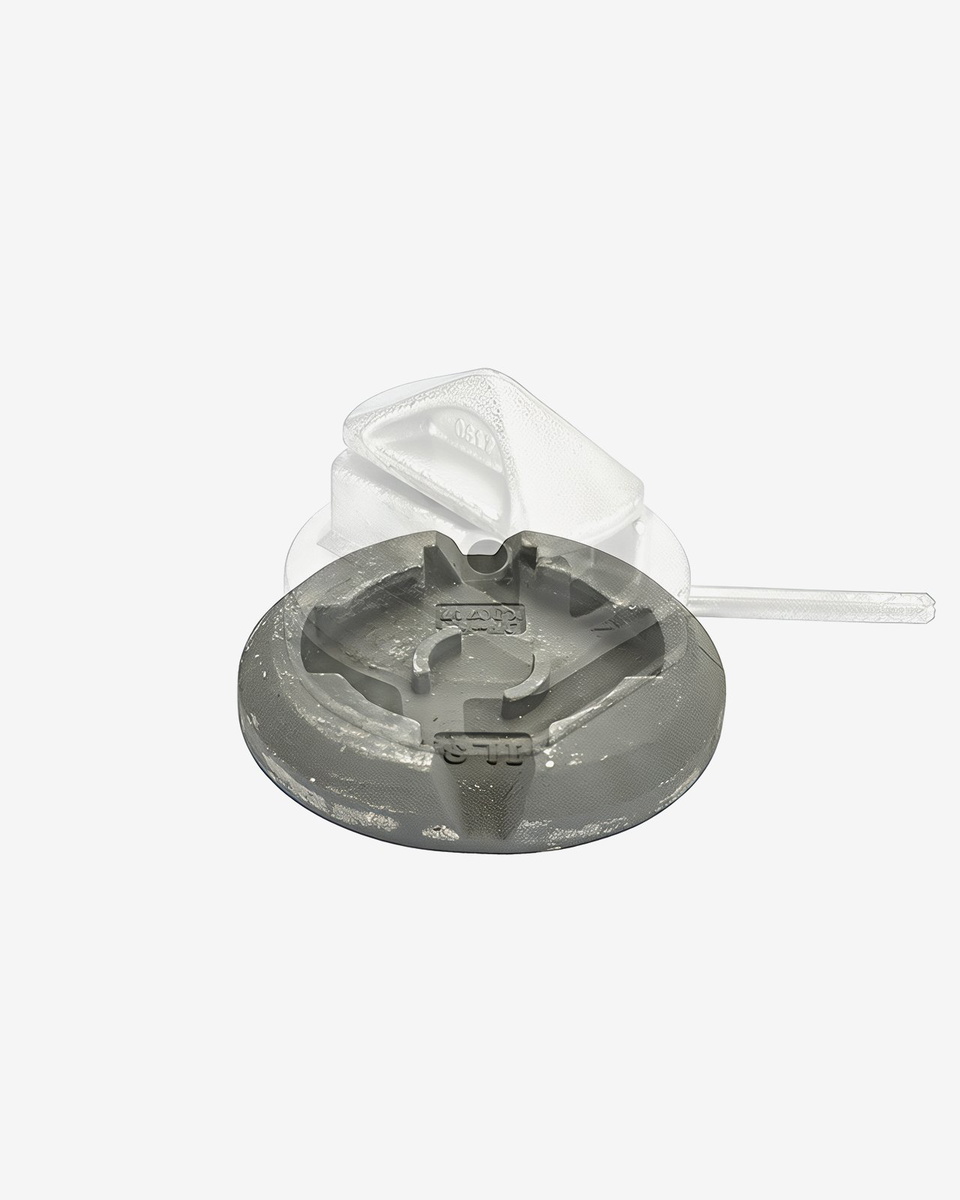

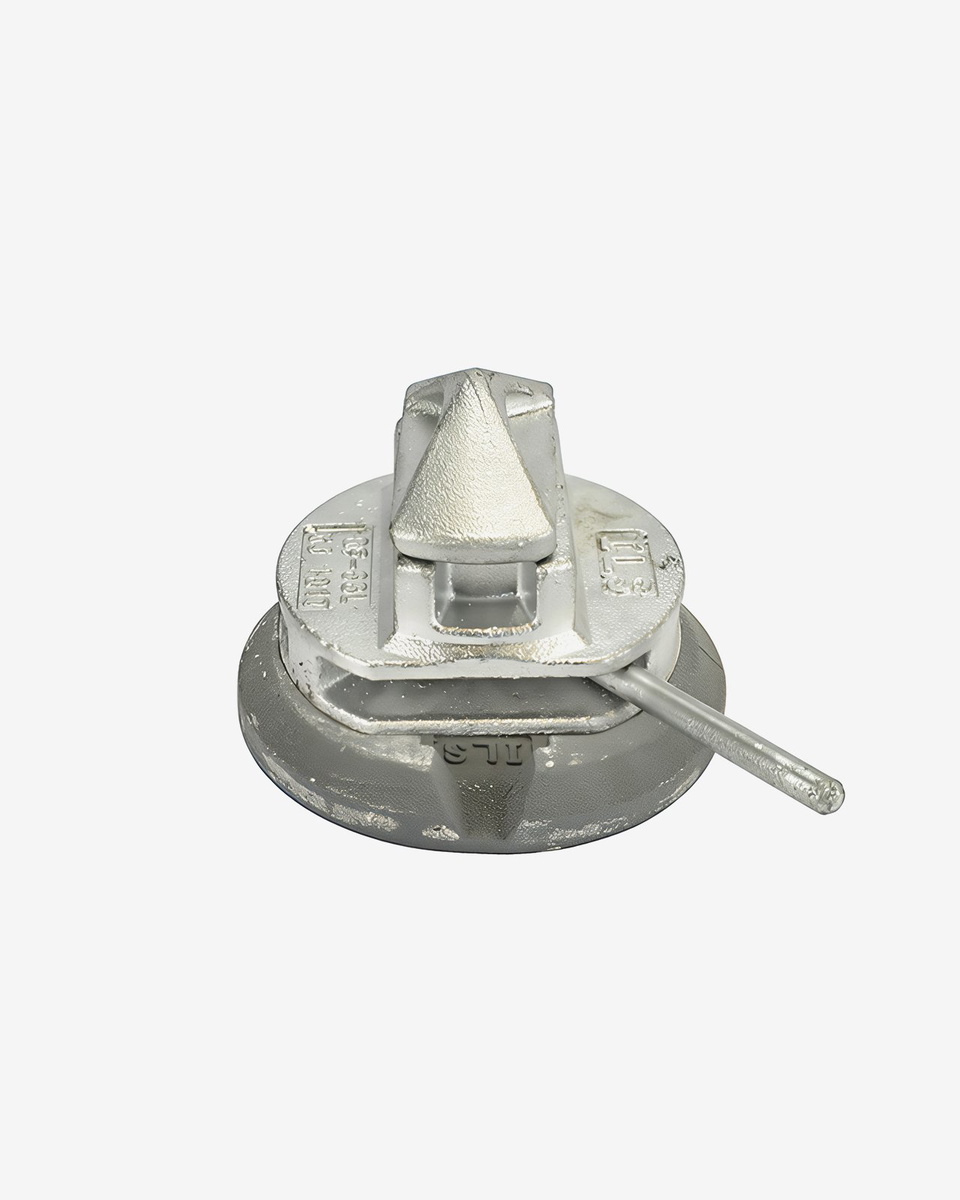

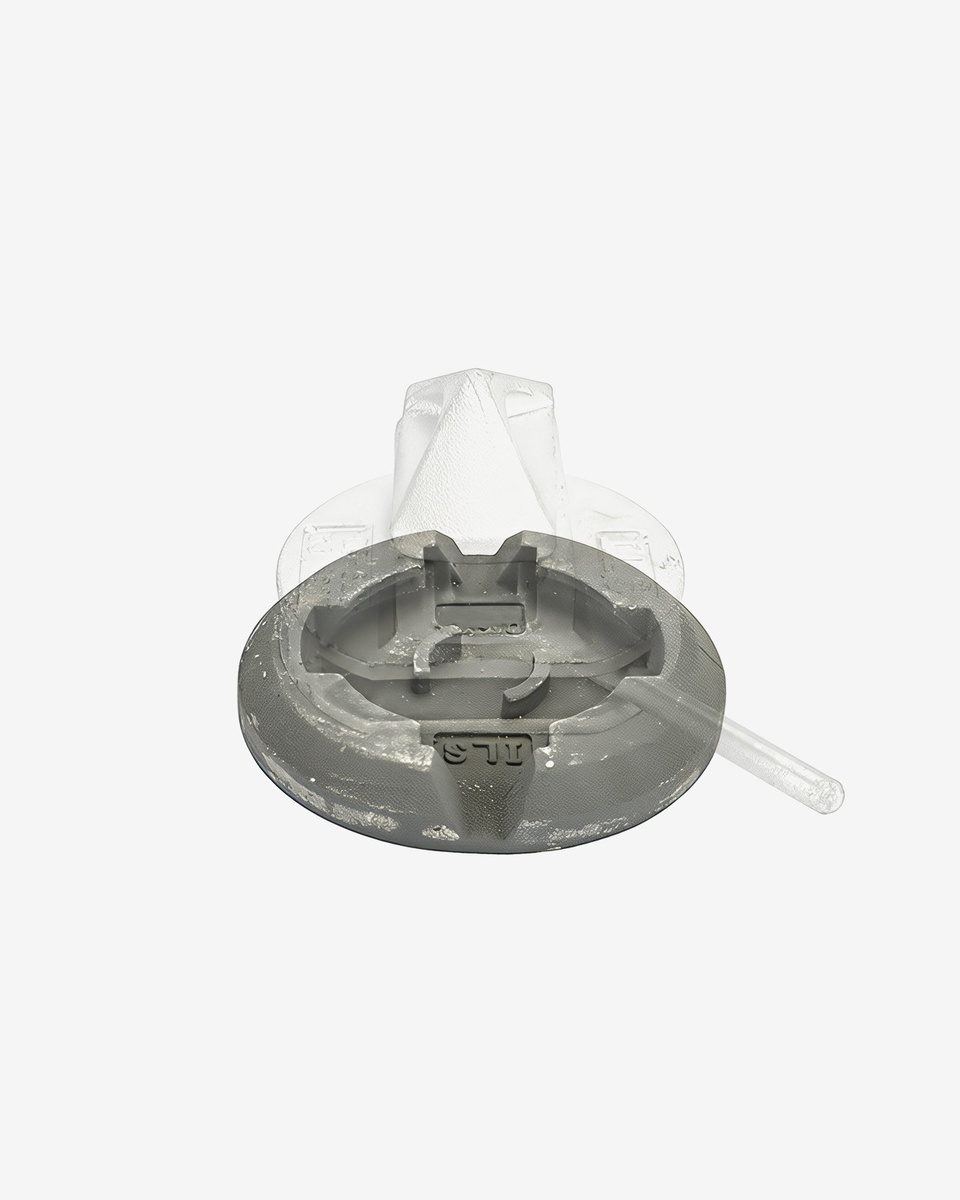

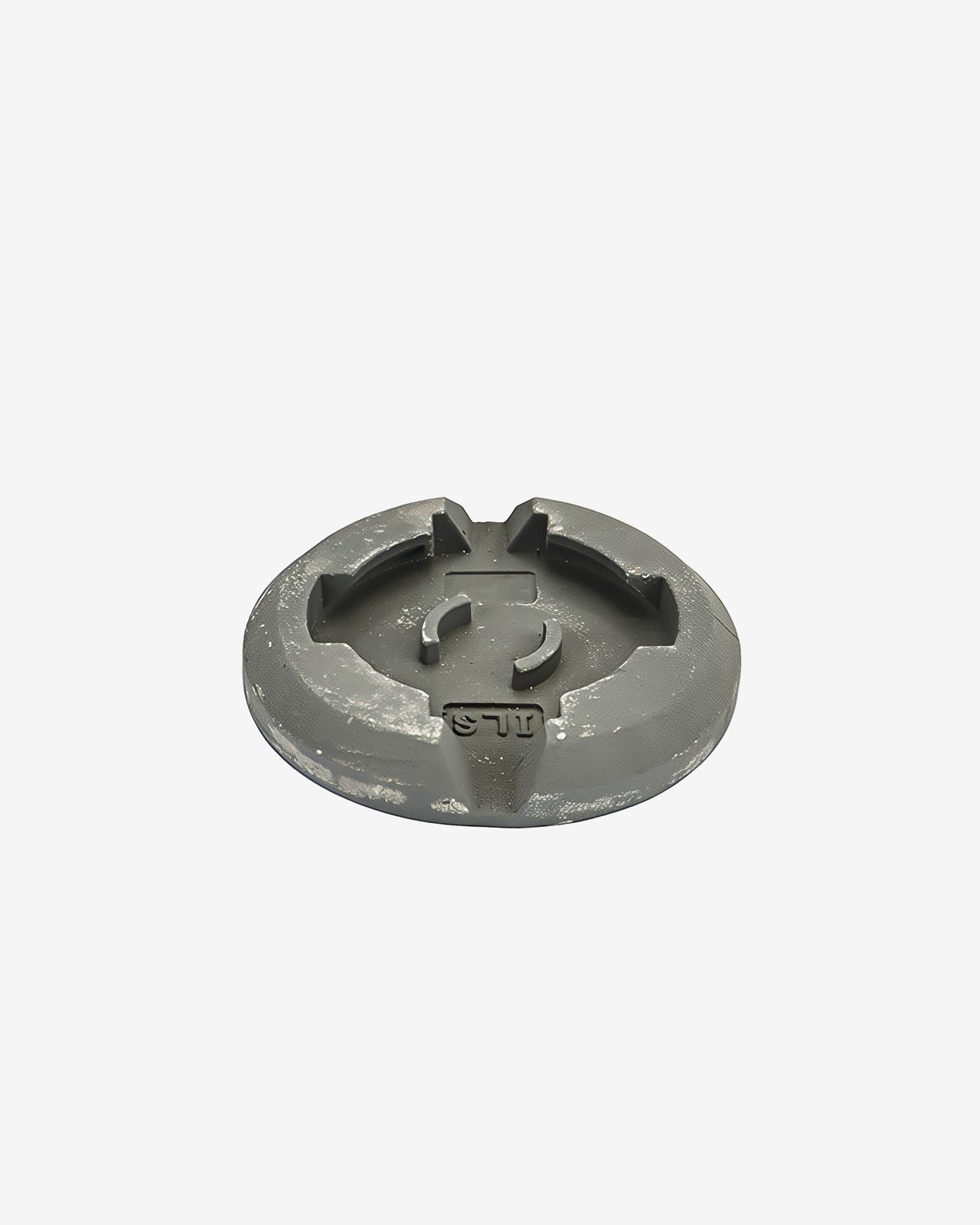

The DF-66 Breech Base Deck Sockets is designed for top-down installation. This makes it suitable for confined spaces or scenarios where quick configuration changes are required. The DF-66 works with the BF-66 twistlock and the LP-21 lashing eye, offering four-way locking for maximum flexibility.

Cast steel, high breaking strength, and easy to weld

Both base plates are manufactured from premium SCW480 cast steel and coated with a protective primer. With a breaking strength of 500 kN (~50 tons), they can be welded directly onto steel surfaces. Technical drawings are available for precise integration into your structure.

Should you require professional advice or tailor-made solutions, the Navacqs team is ready to assist.
