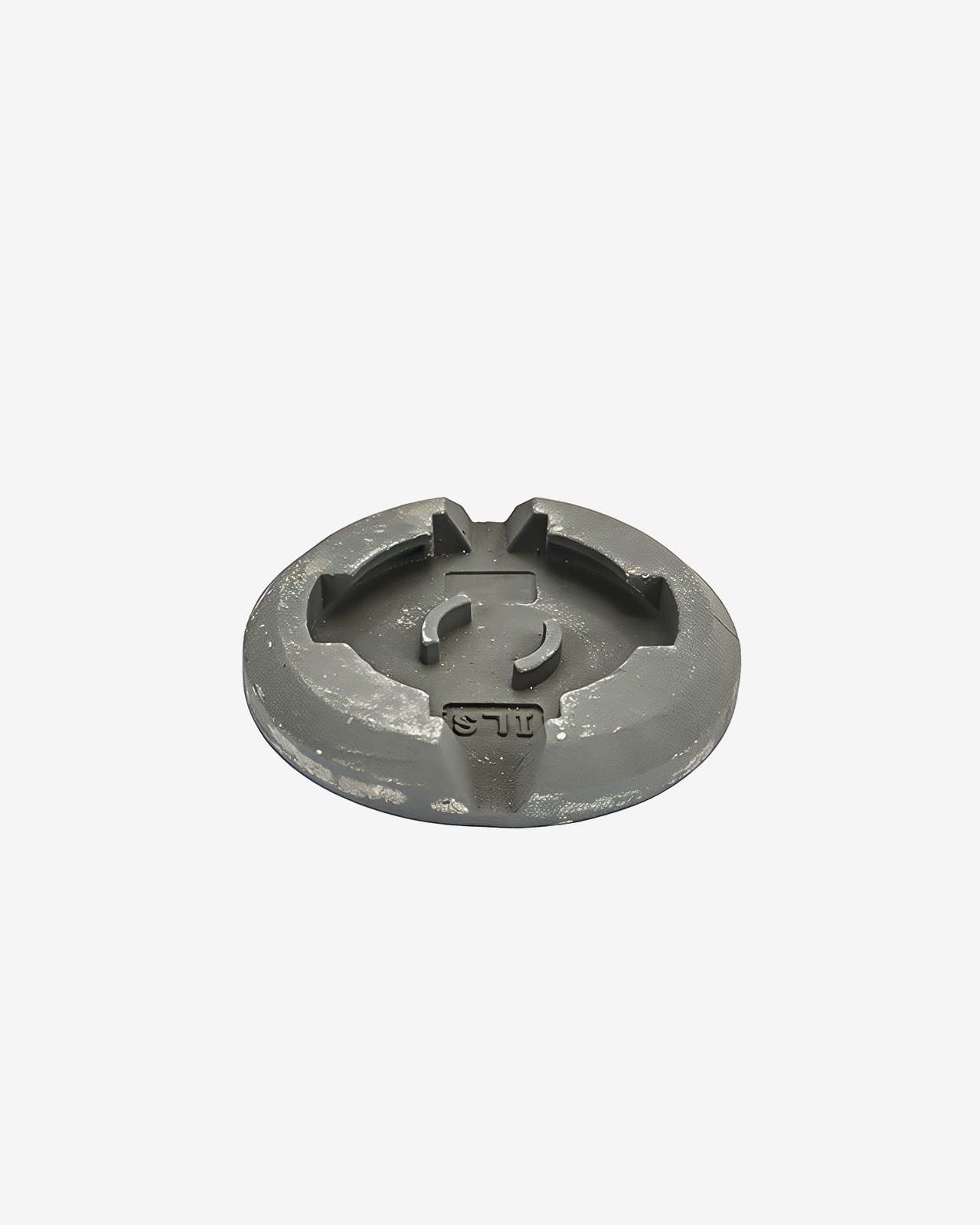

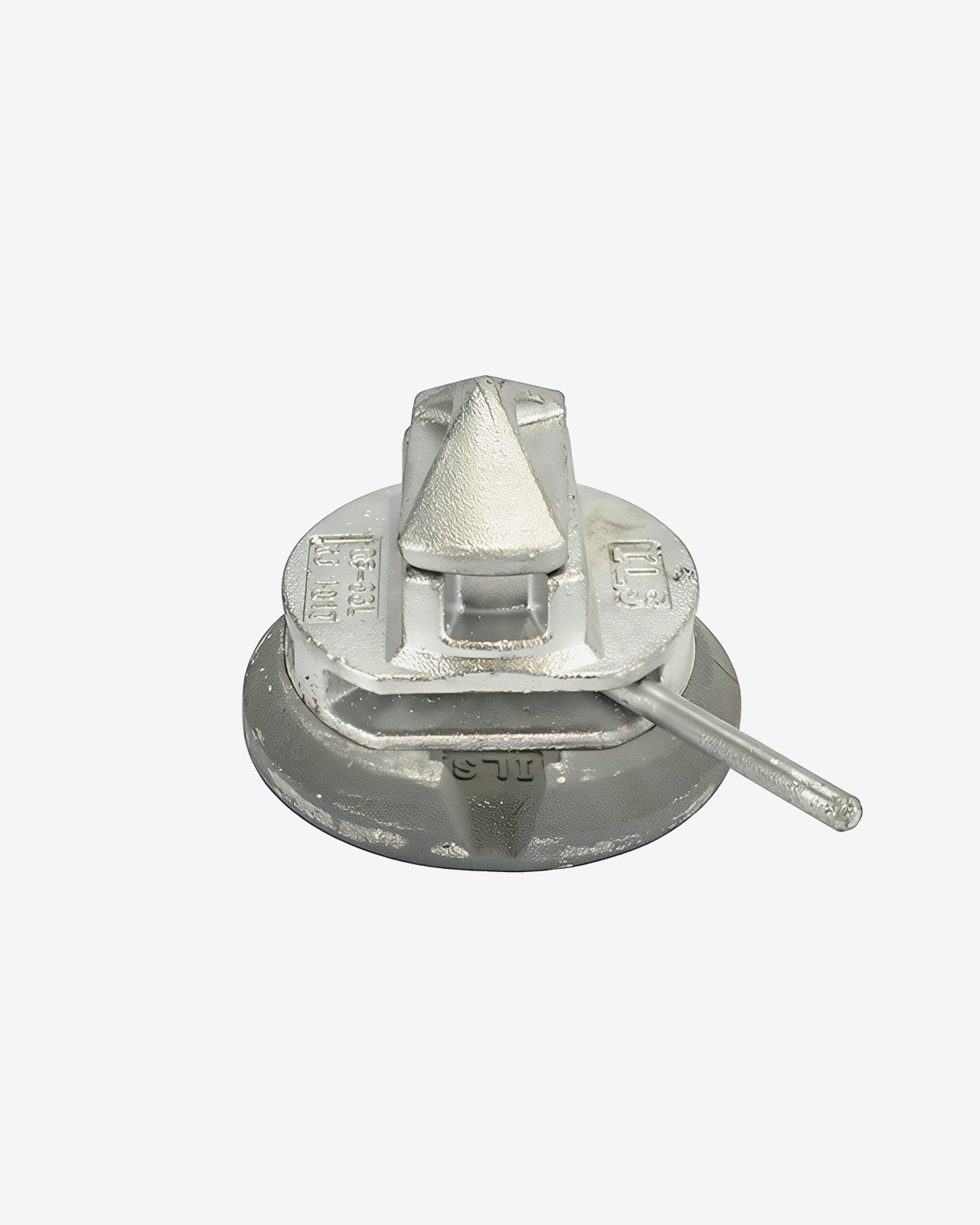

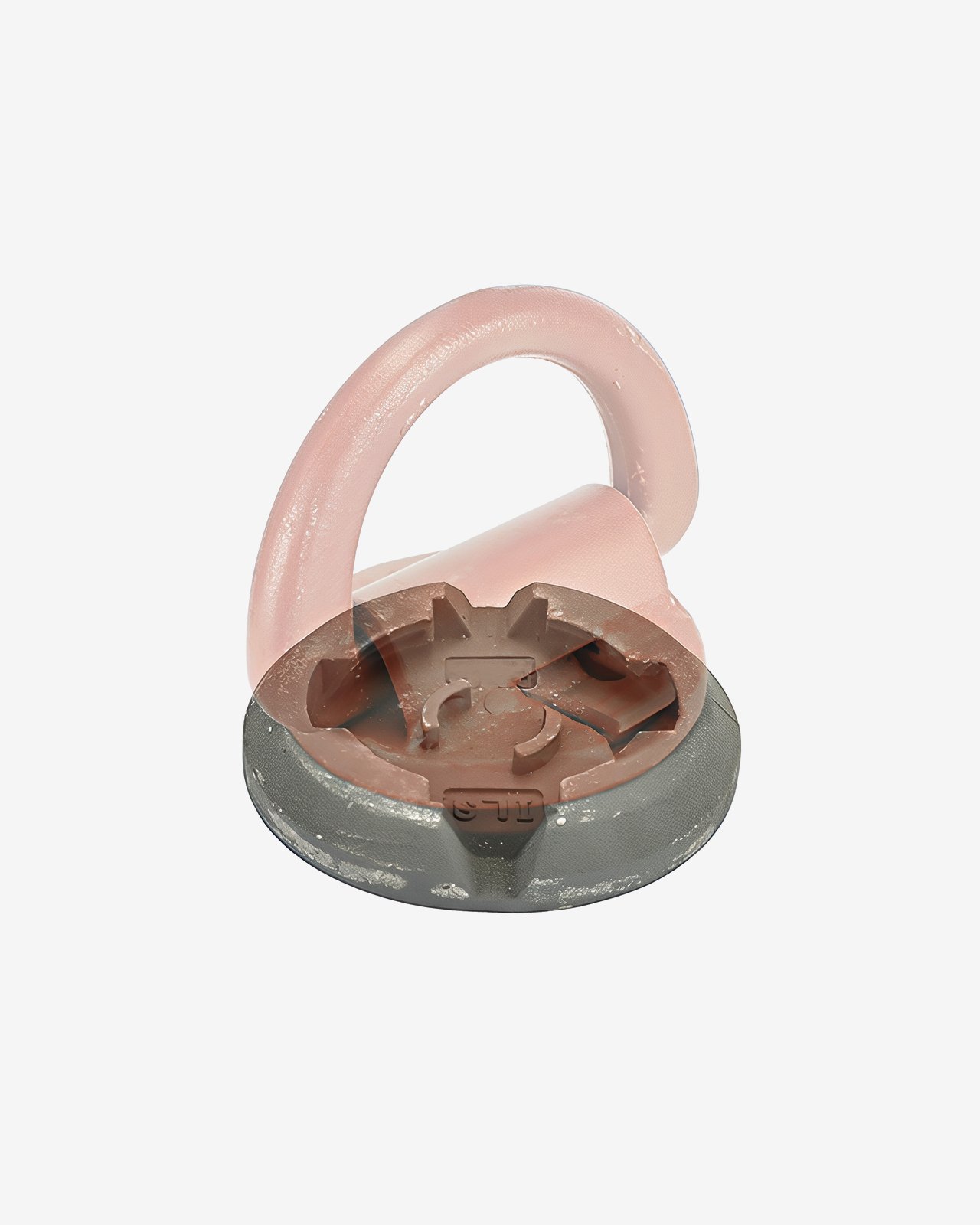

Breech Base Deck Socket DF-66

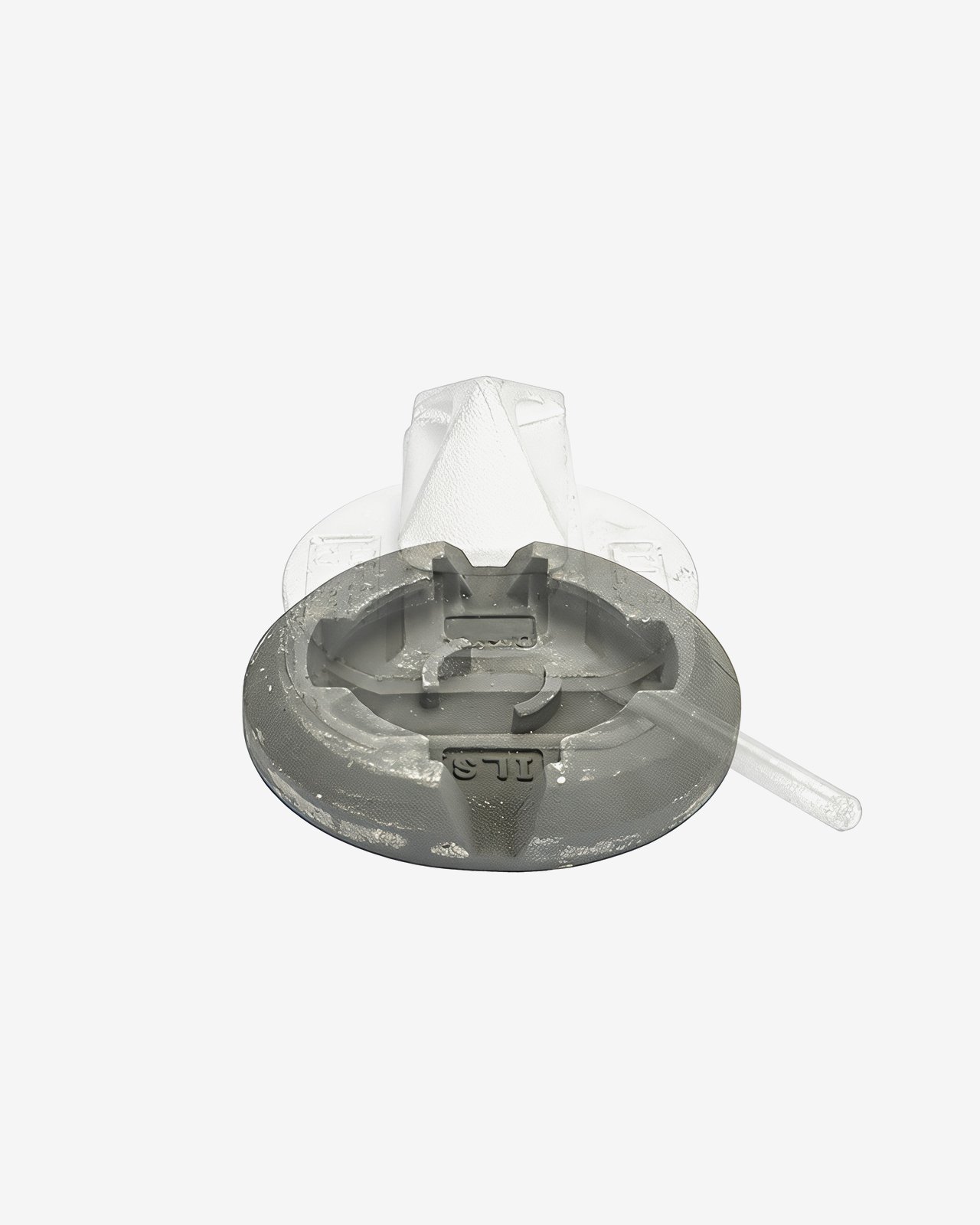

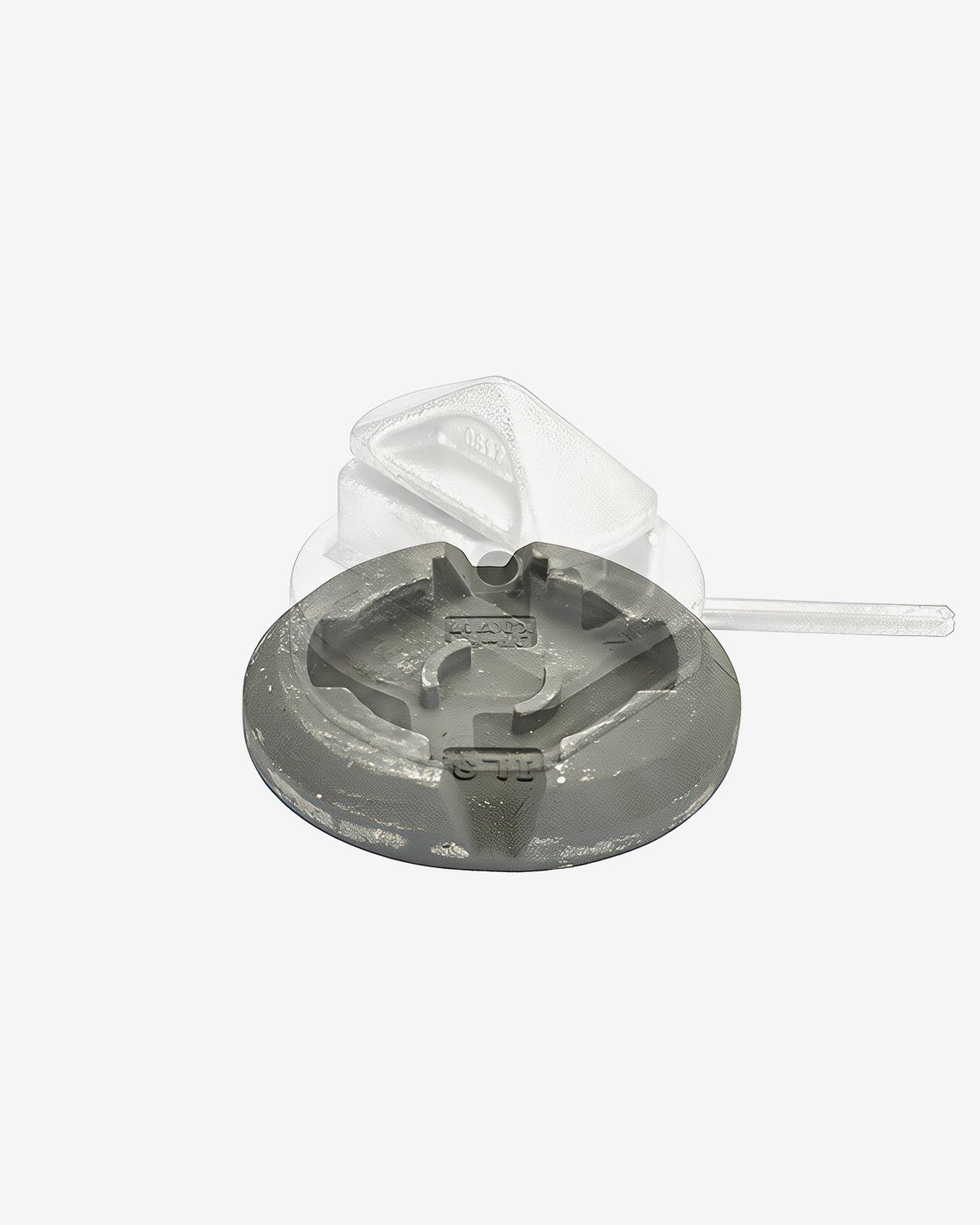

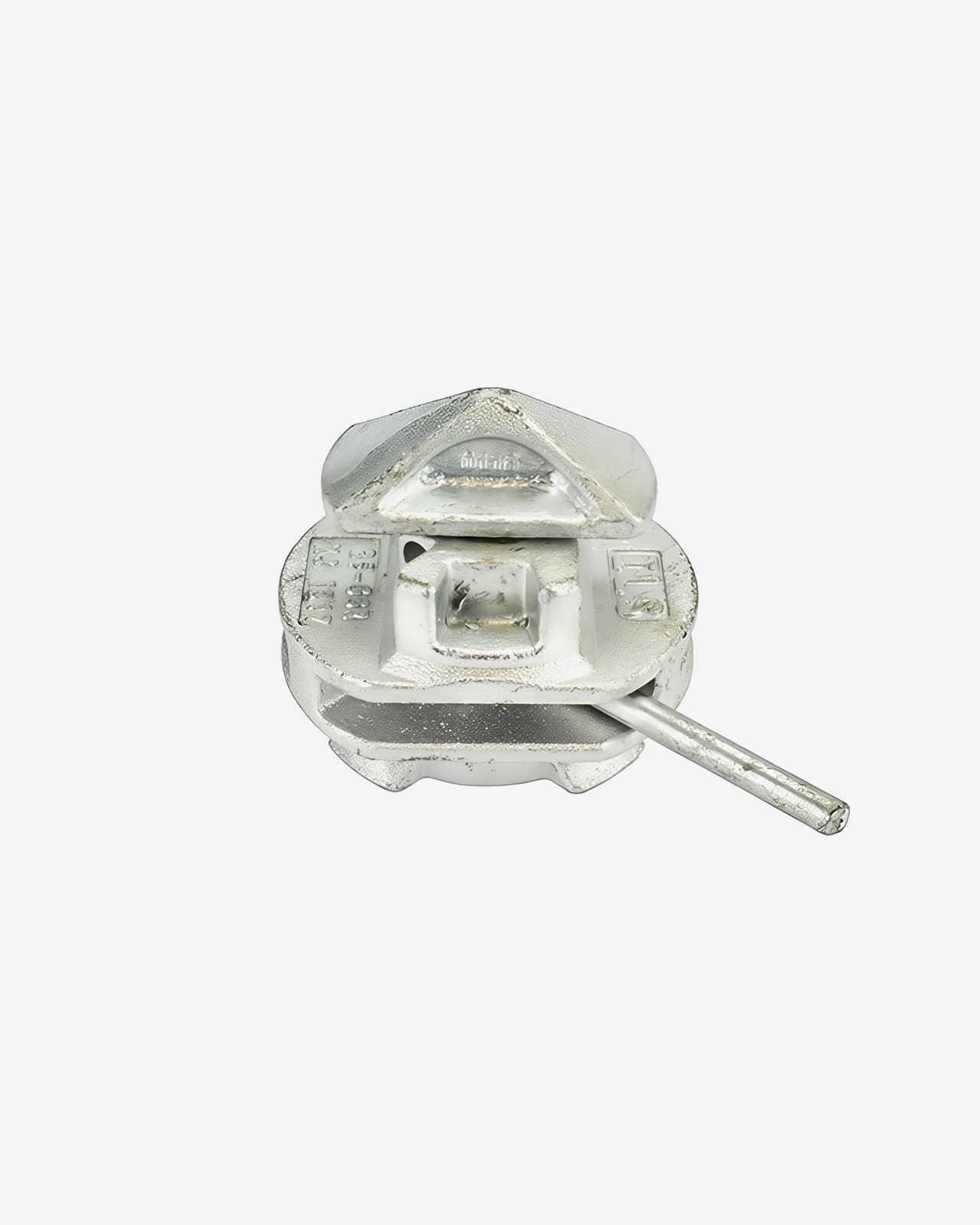

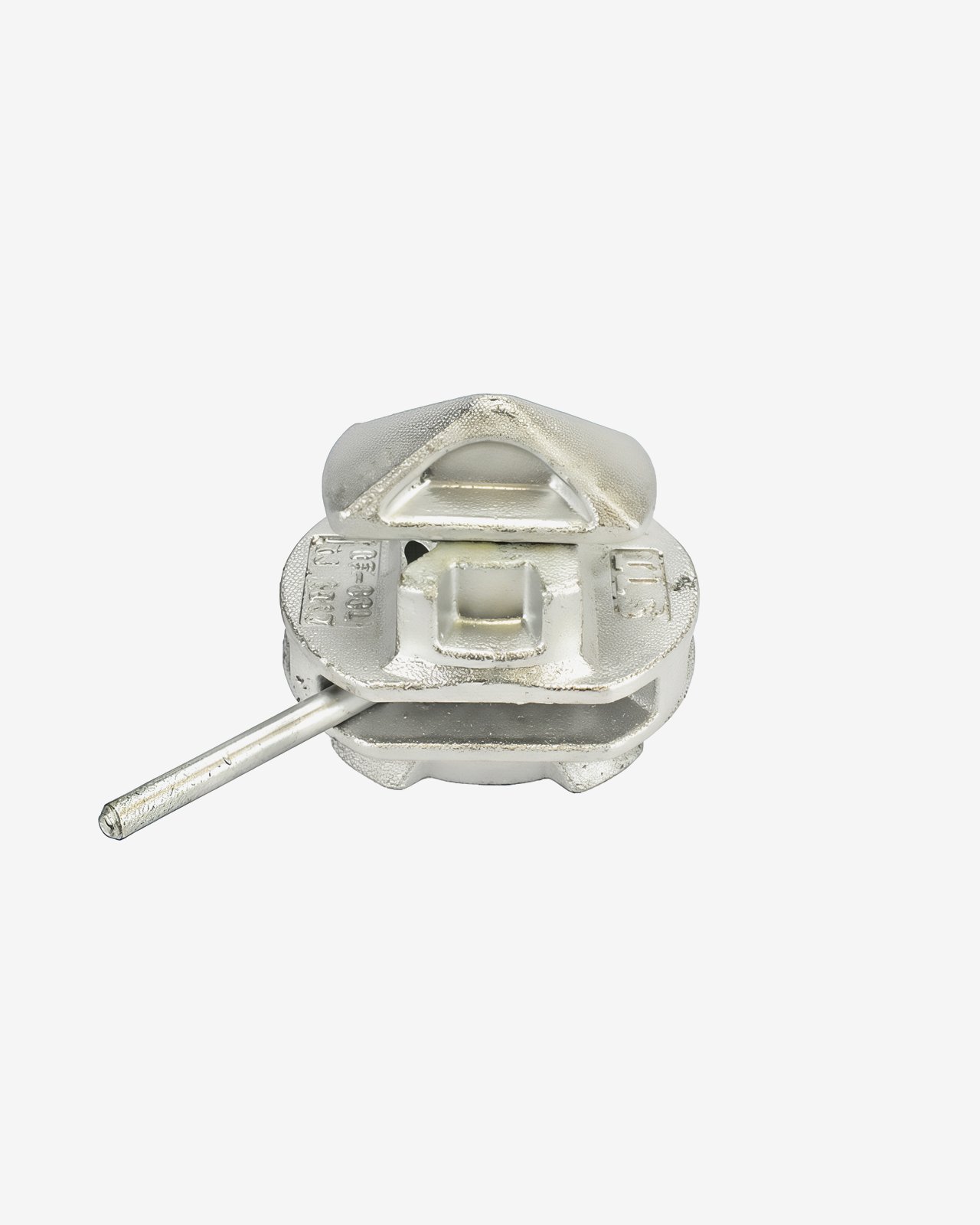

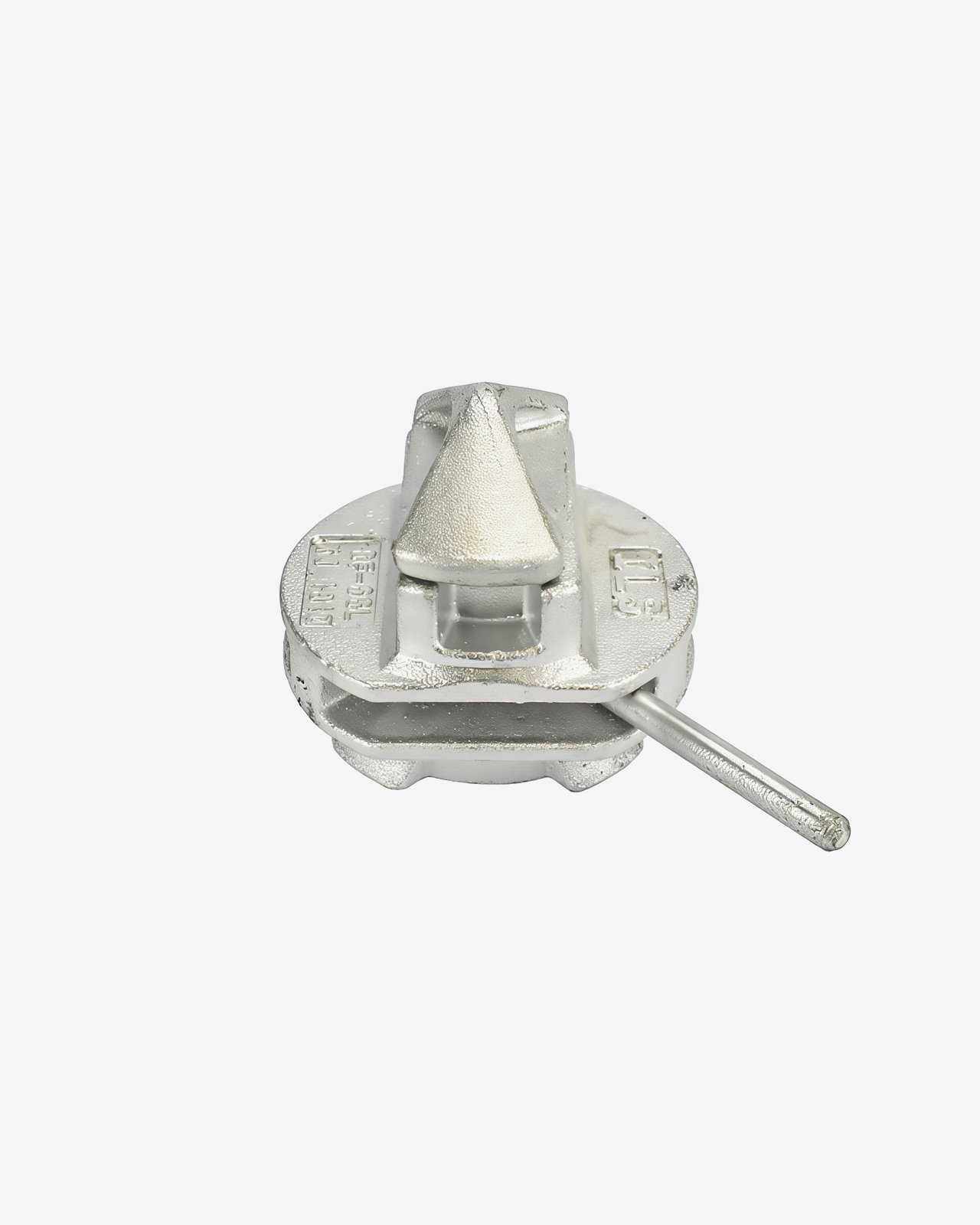

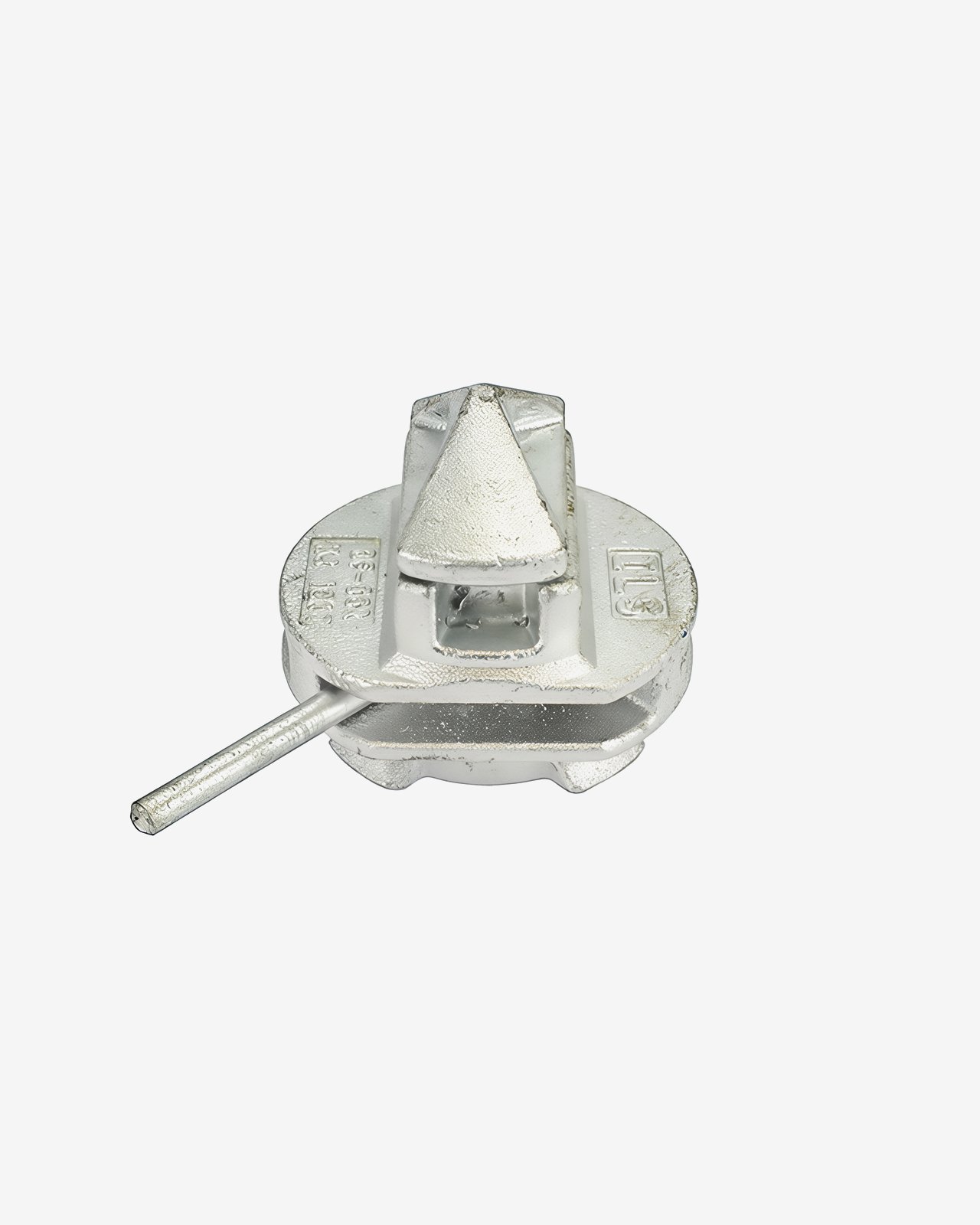

Easy to weld to ship's deck or construction. Makes the Breech Base Twistlock BF-66 and the Lashing Eye LP-21 removable
Article number: 10-01-0001-00
| Article number | 10-01-0001-00 |
|---|---|
| Application | Containers |
| Length | 23,7 cm |
| Weight | 3.7 kg |
| Width | 15 cm |

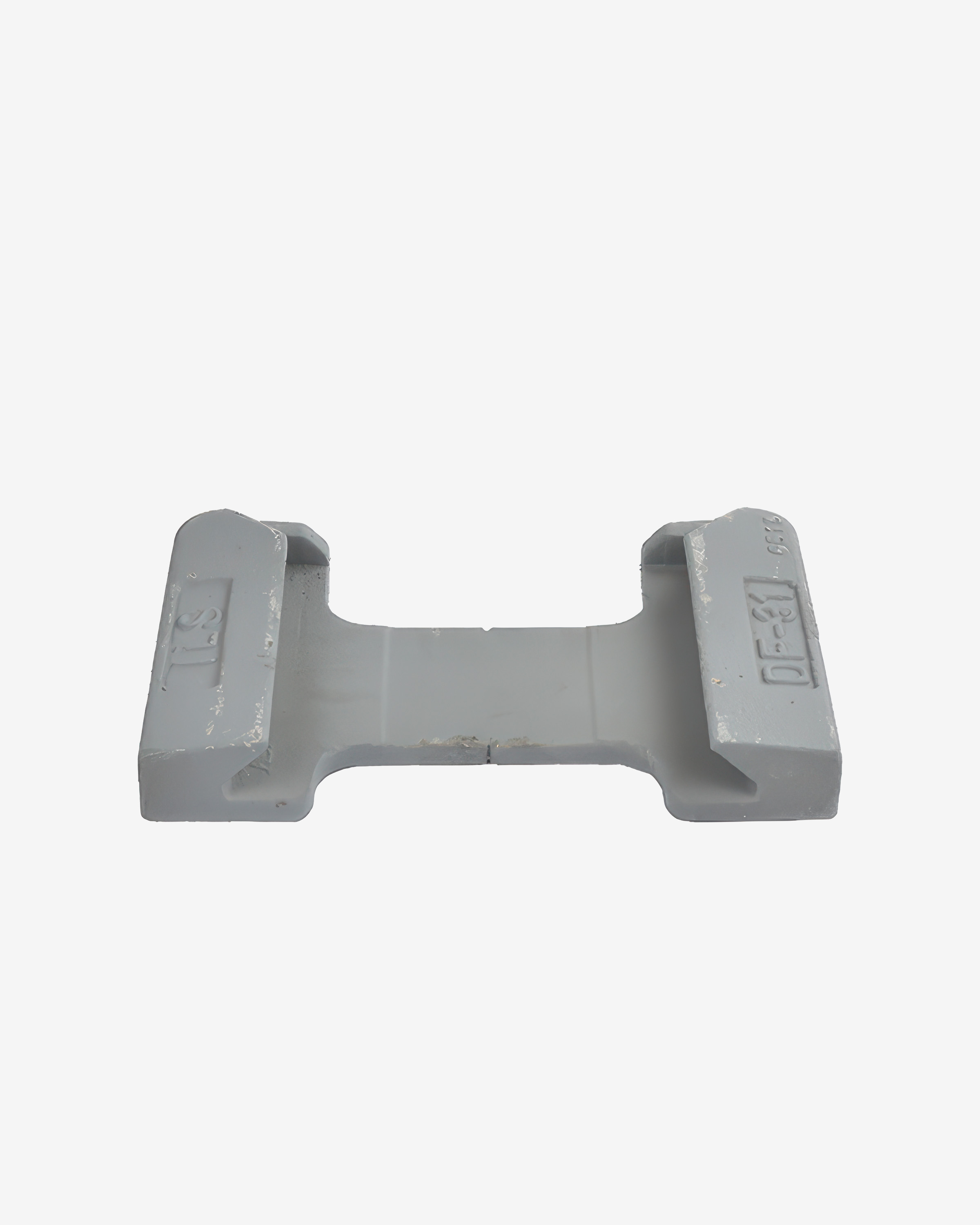

Deck Socket DF-31 makes the Dovetail Twistlock BF-11 and the U-Frame Lashing Eye LP-91-45 removable. Both slide sideways into the socket. Without a twistlock or lashing eye in place, the deck of a ship, pontoon or platform stays free of protruding parts. The socket is made of SCW480 cast steel and tested to a breaking strength of 500 kN.

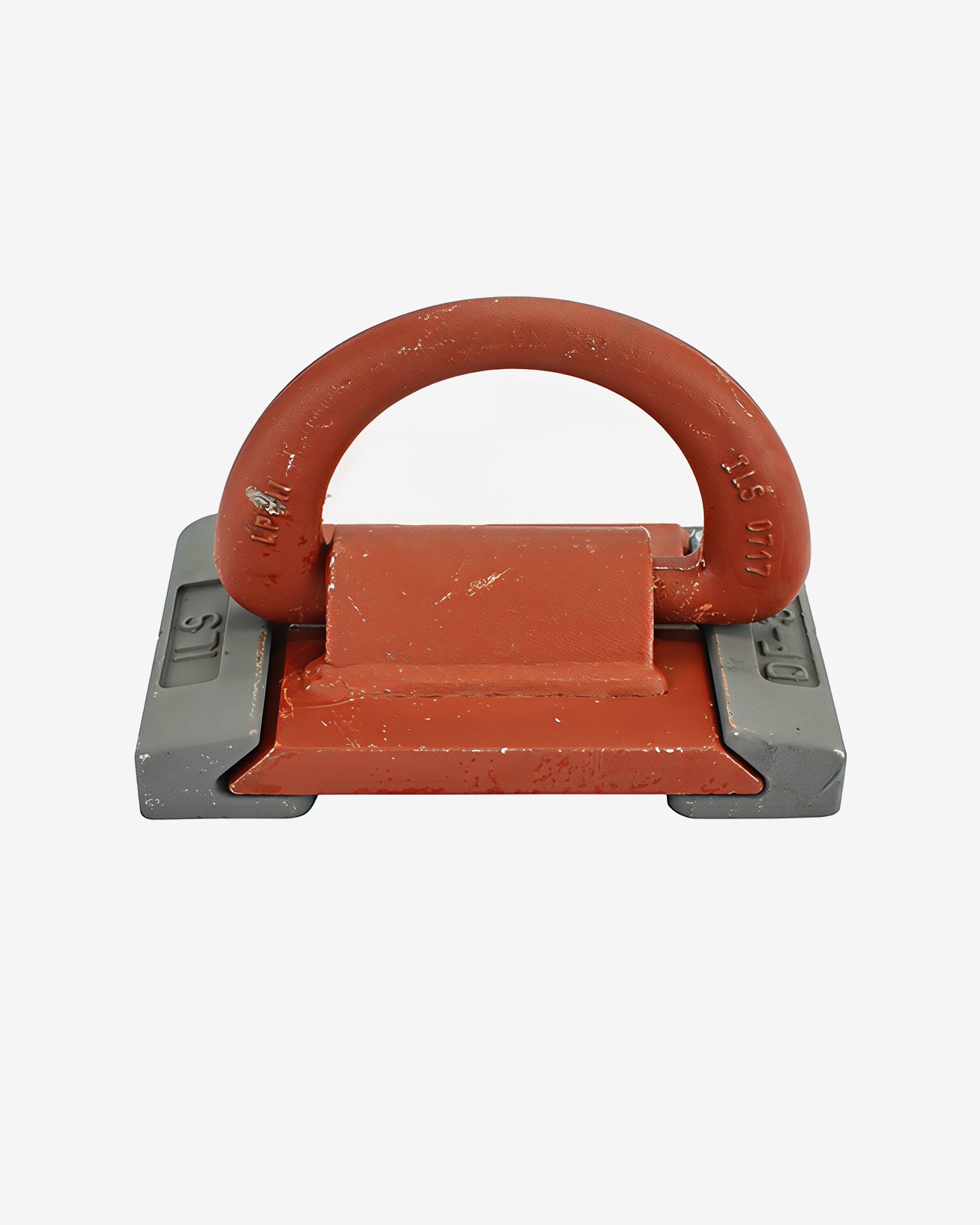

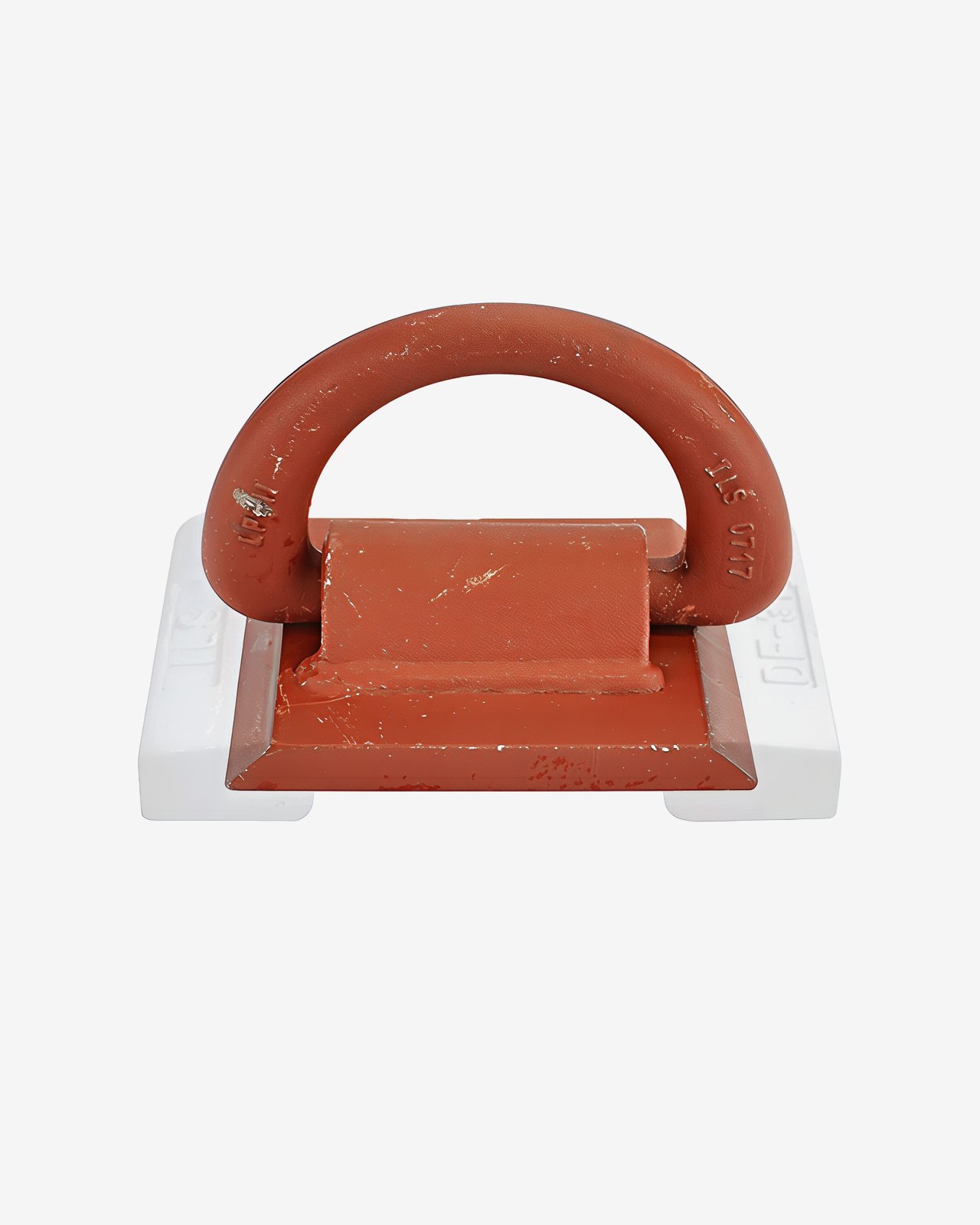

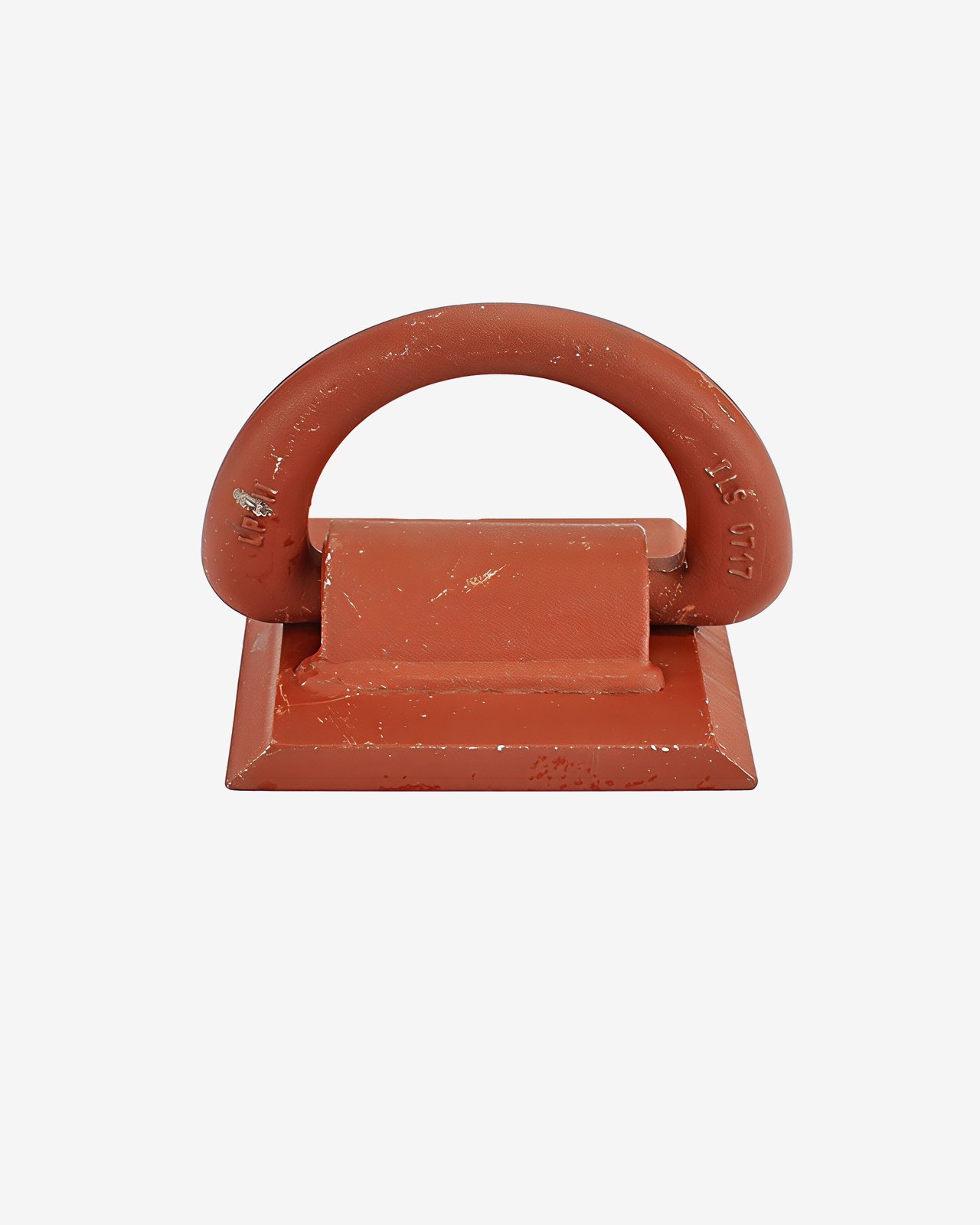

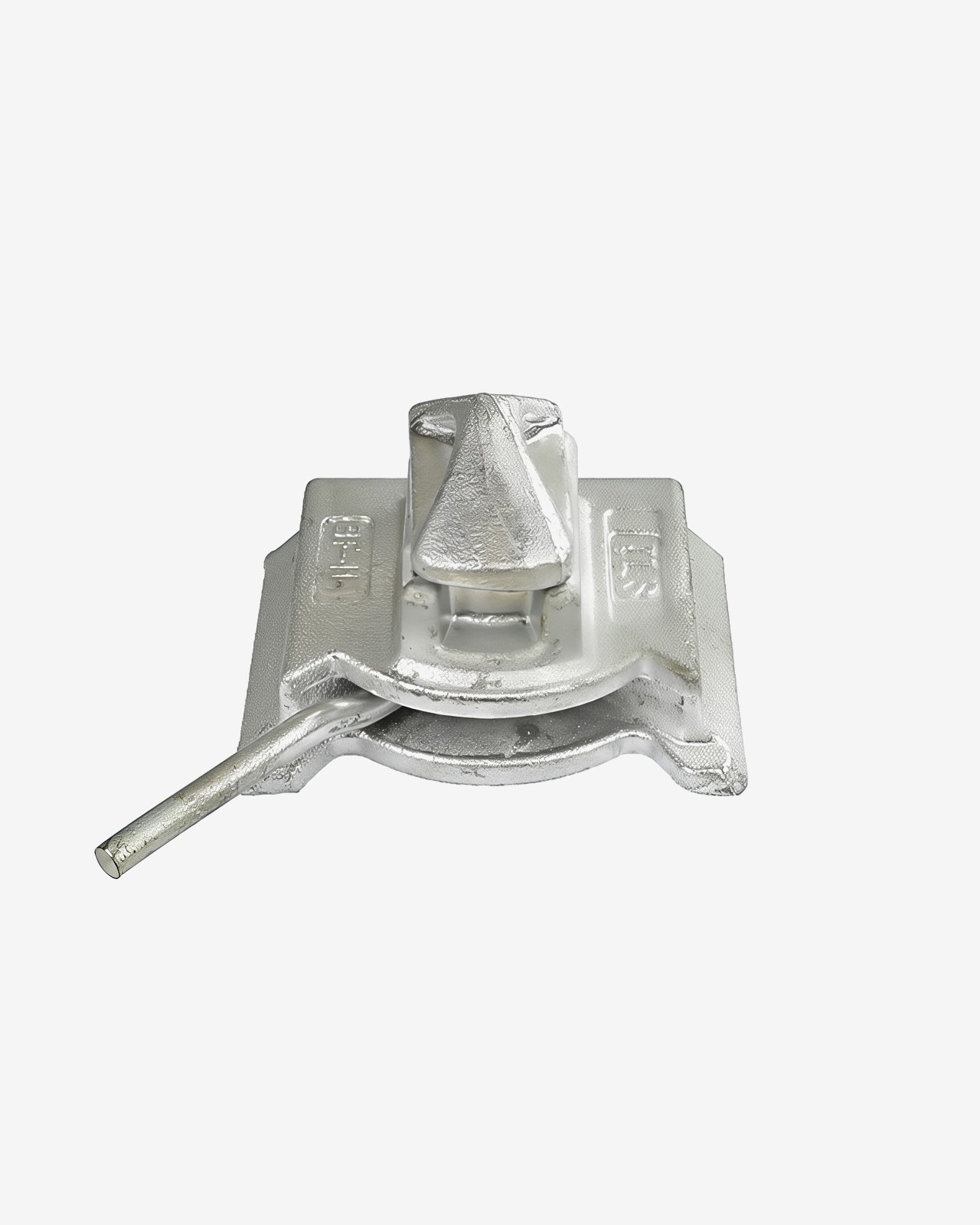

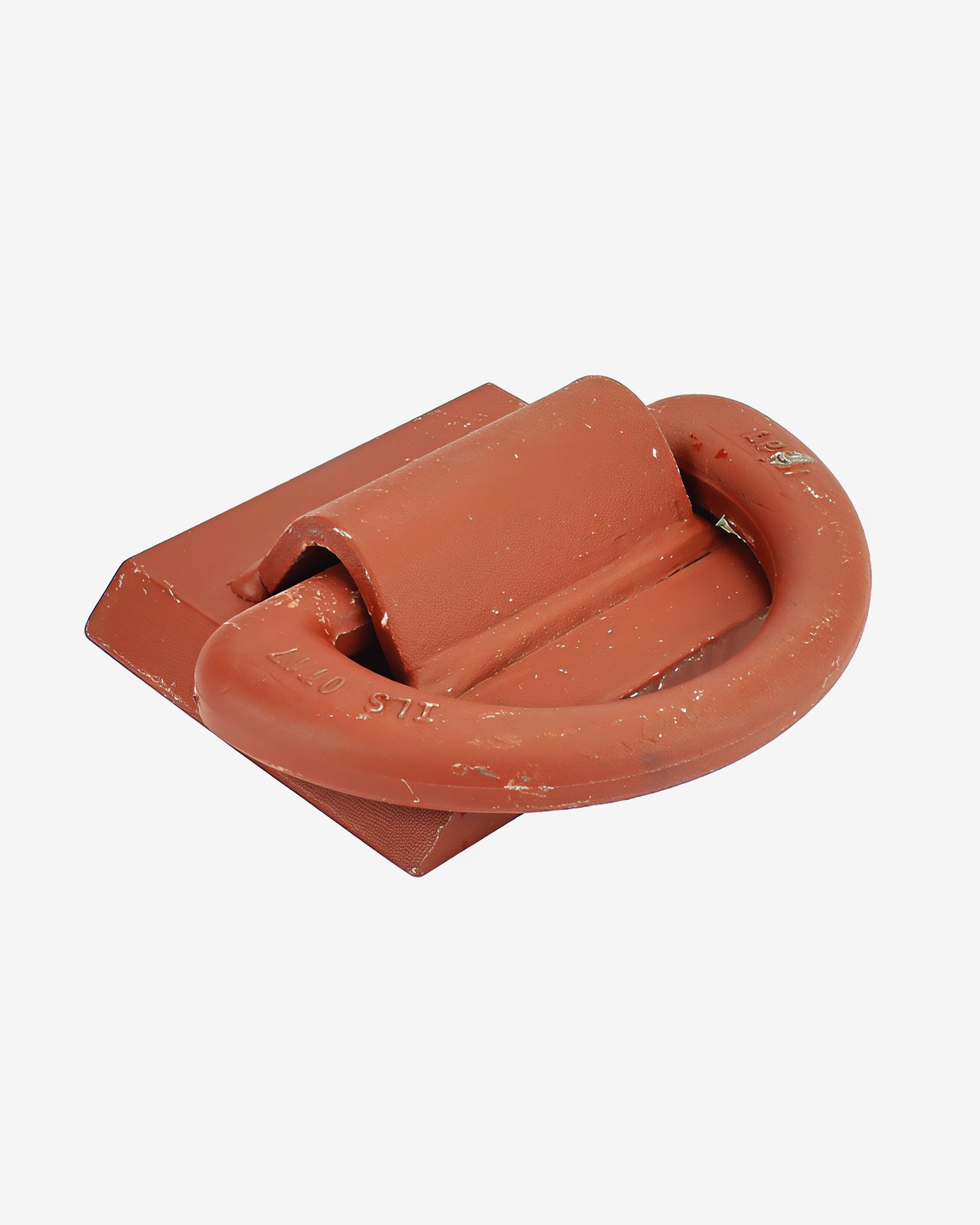

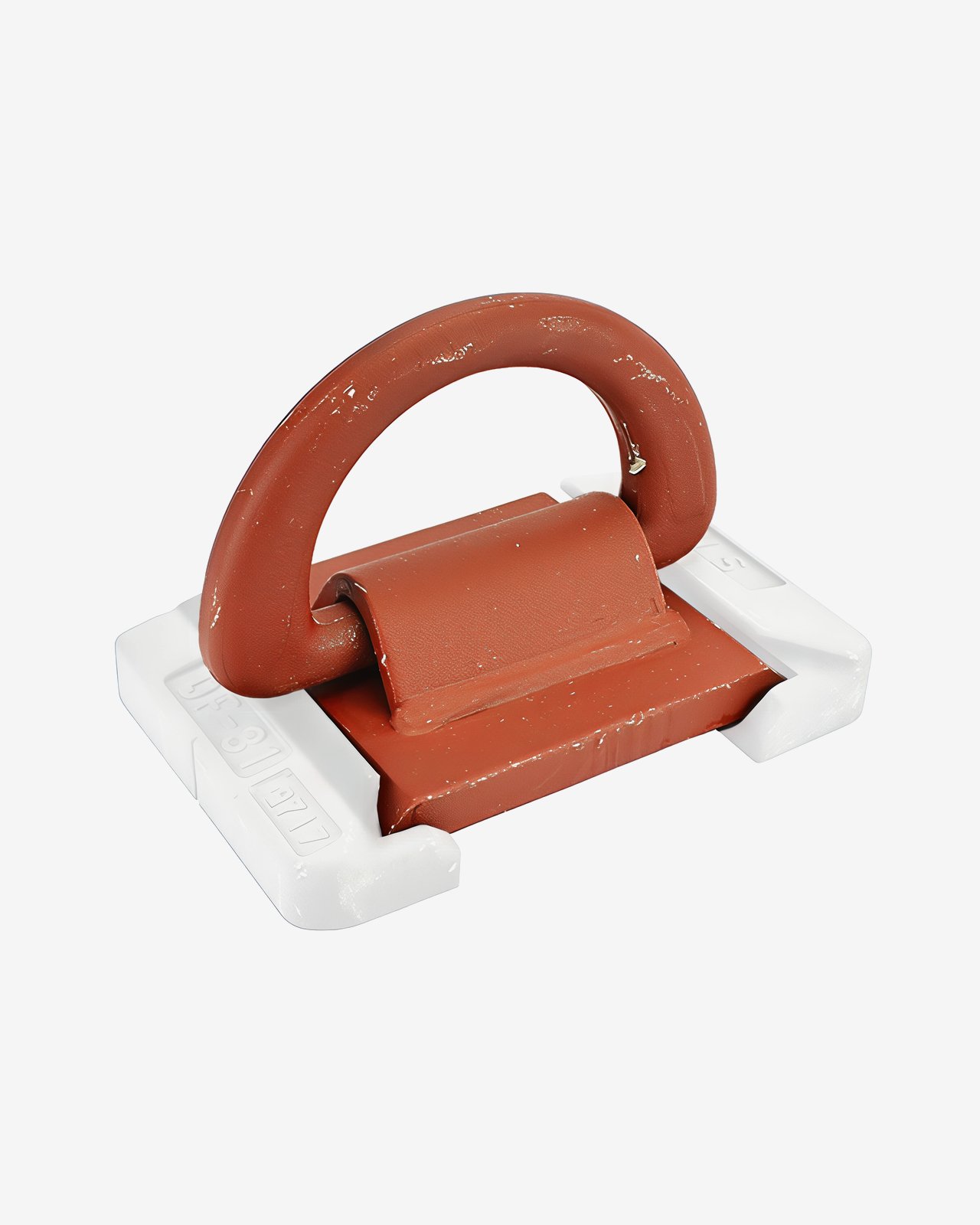

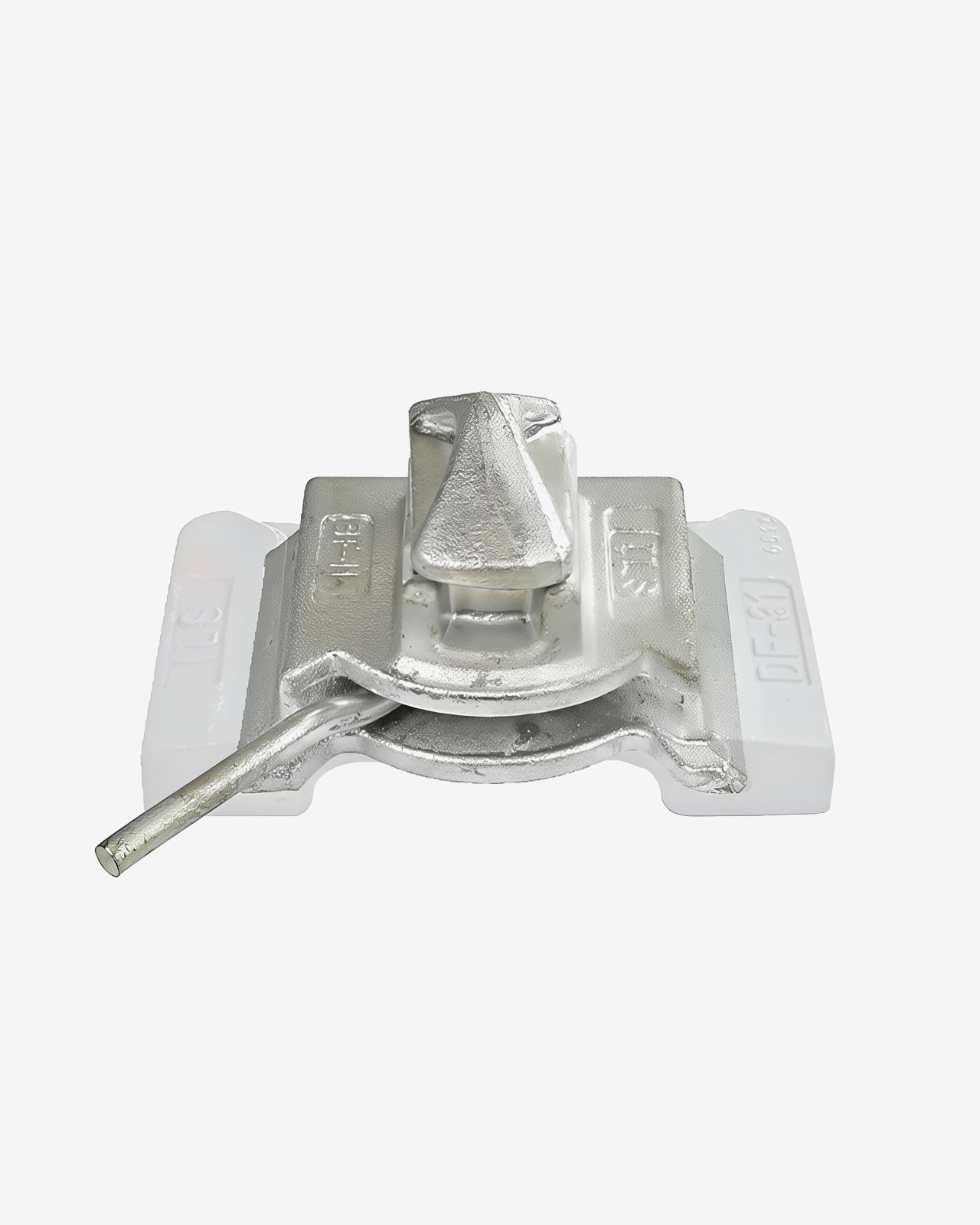

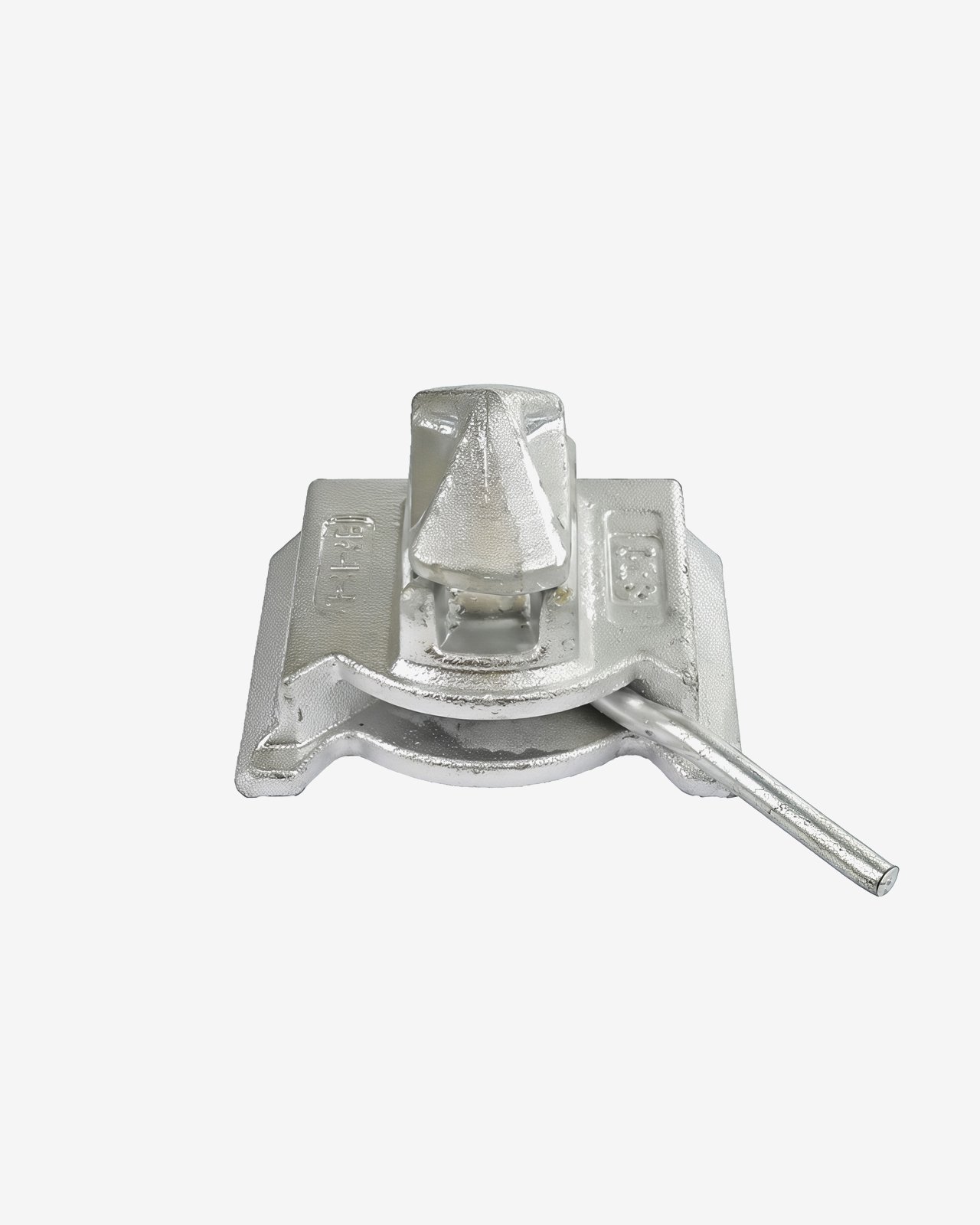

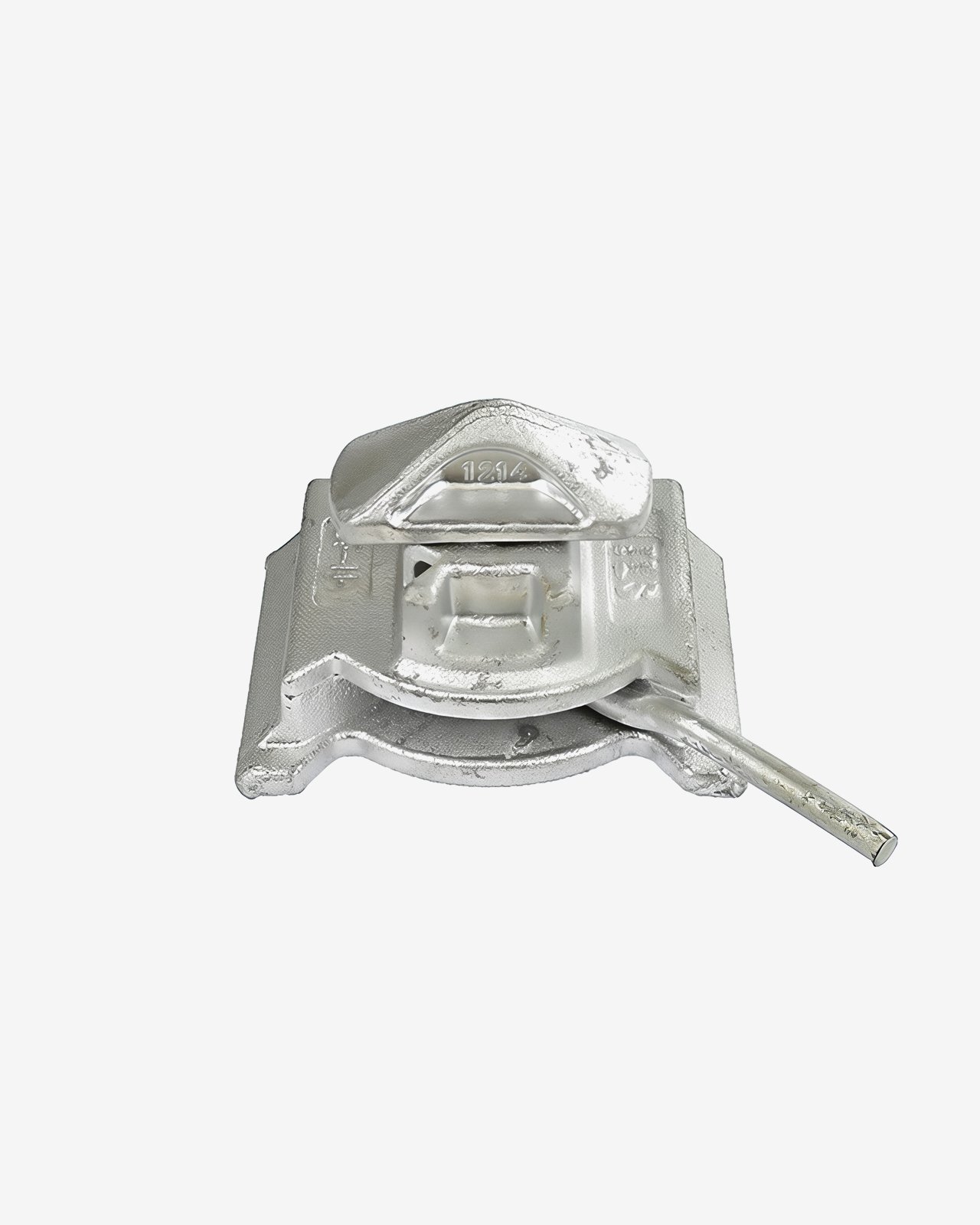

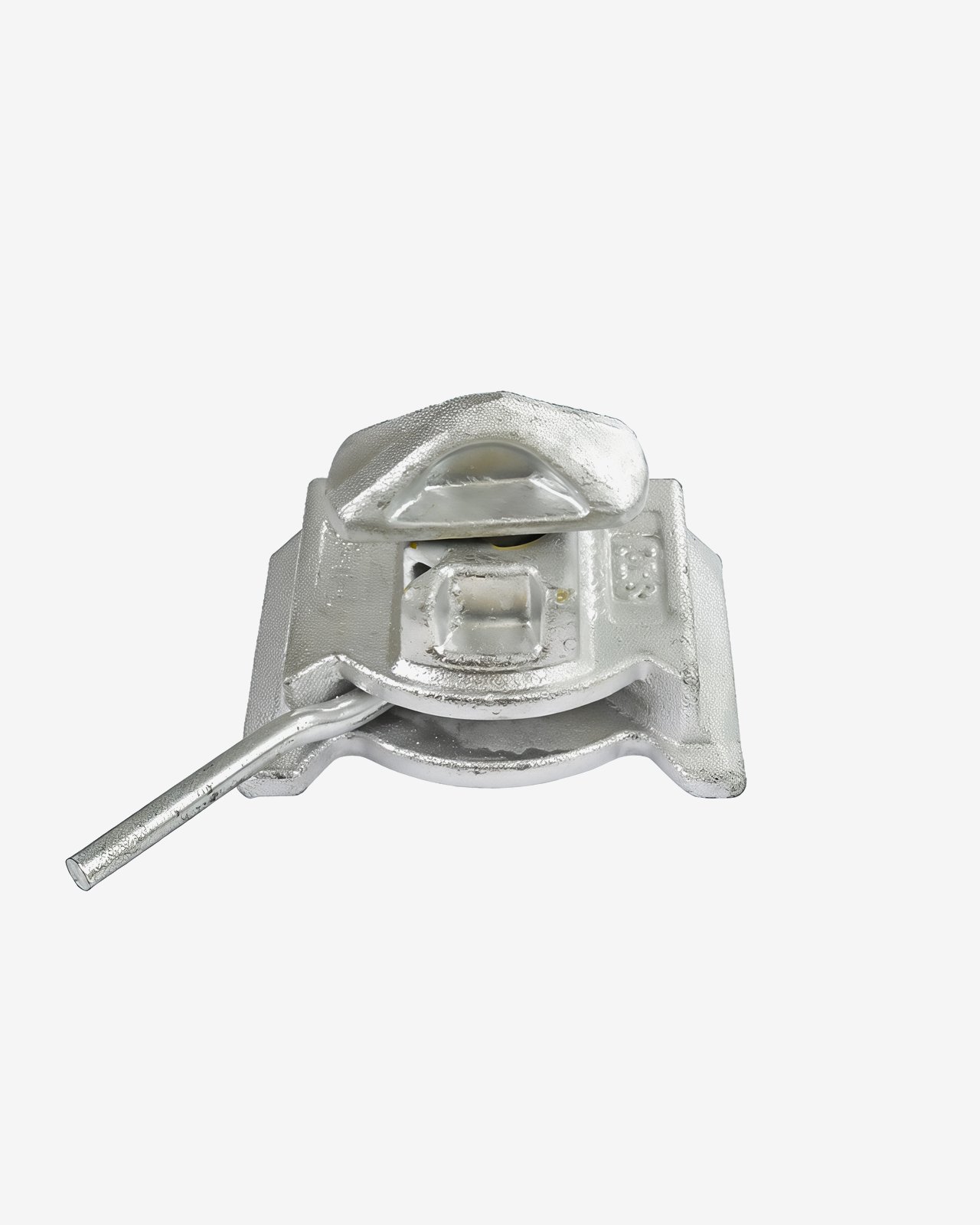

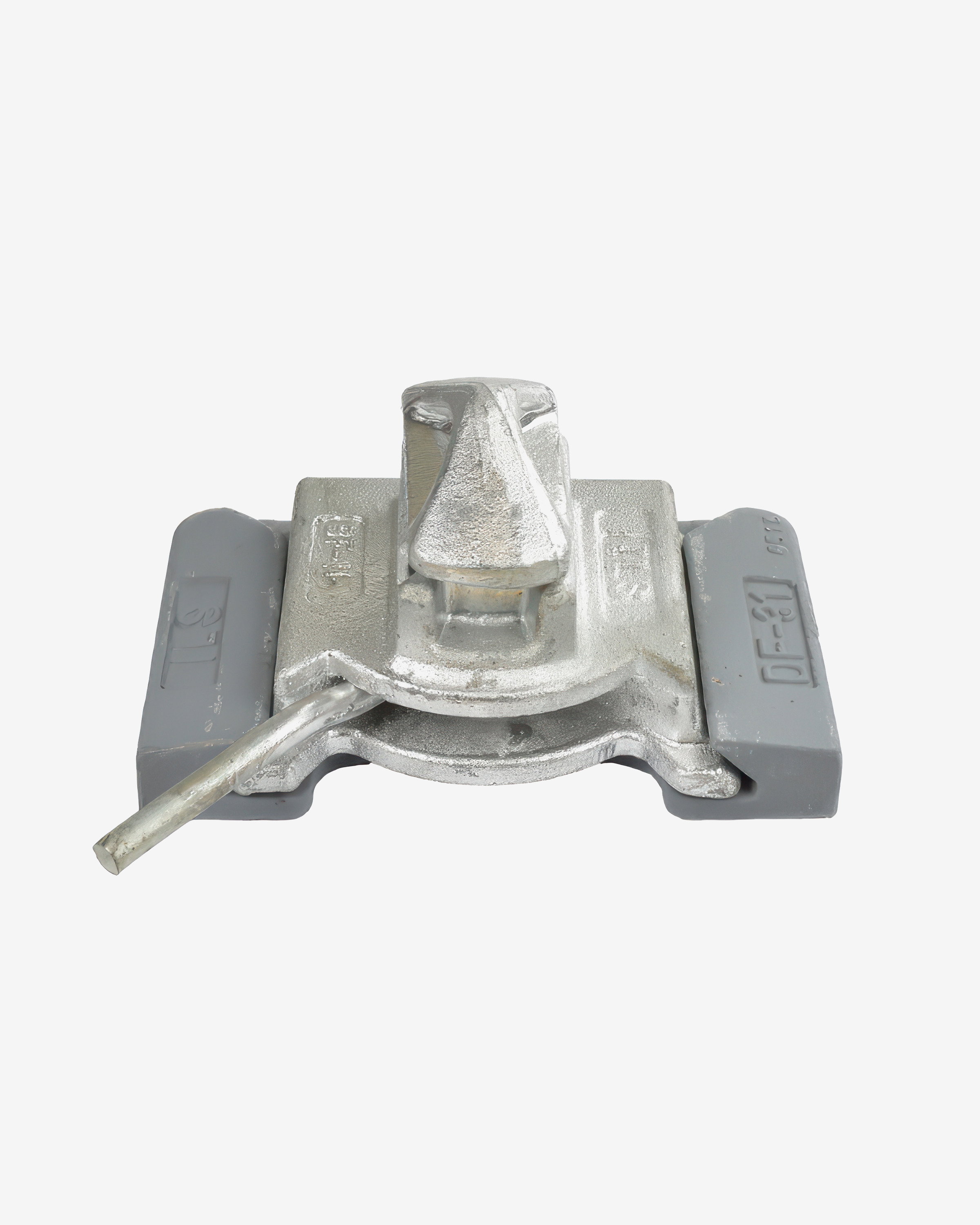

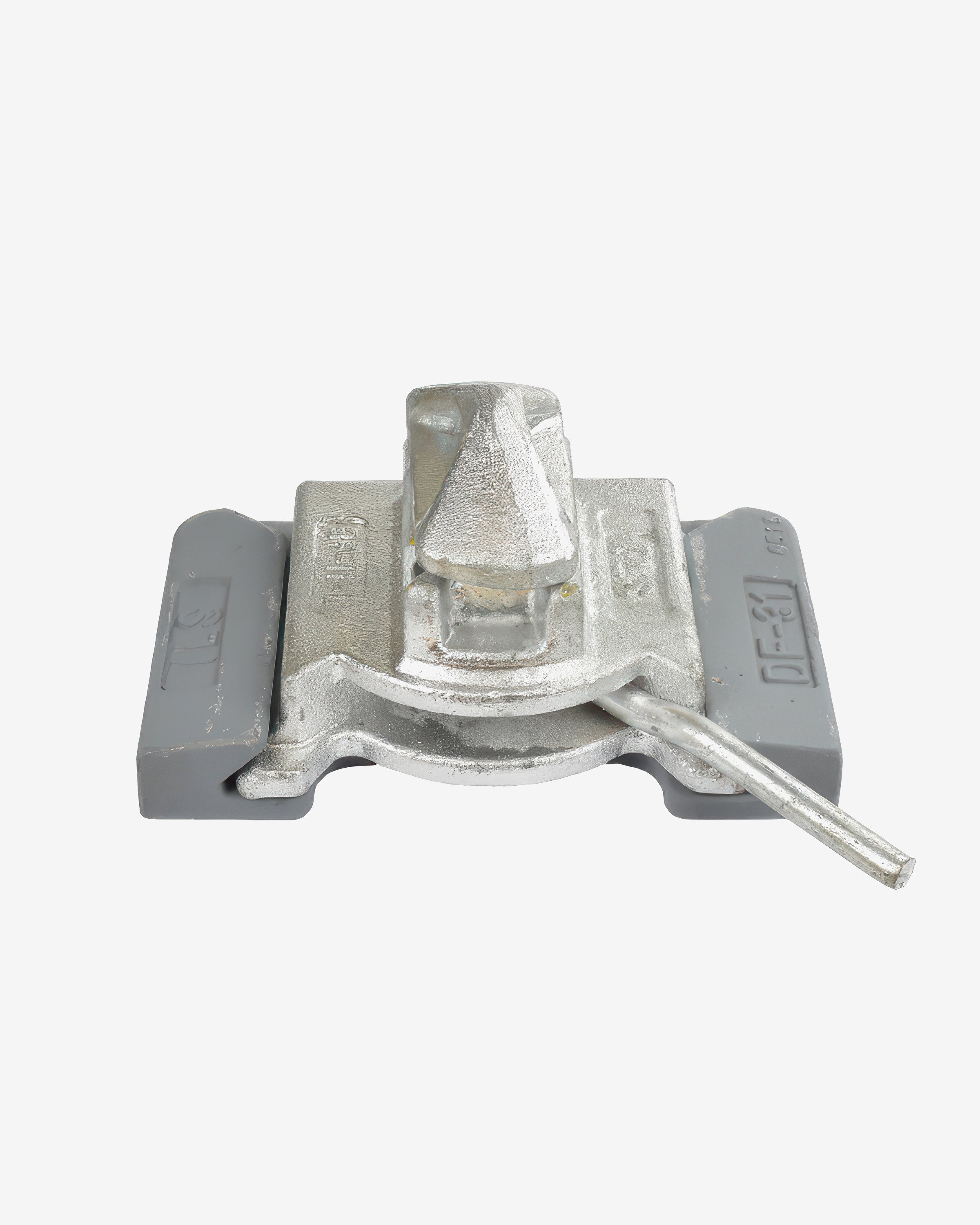

The Dovetail Twistlock BF-11 slides into the DF-31 and secures a container. The same socket takes the 36 tonne U-Frame Lashing Eye LP-91-45, for lashing machinery or steel structures. This lets the same deck switch between containers and loose cargo.
The DF-31 is tested to a breaking strength of 500 kN, roughly 50 tonnes, and a shear load of 420 kN. This makes the socket suitable for offshore and maritime use.
The DF-31 is welded to a steel base such as a ship deck, pontoon or platform. The sockets go in pairs, facing opposite directions, so a container or structure cannot slide sideways. The standard inner angle is 45°; a 55° version is available on request.
The cast steel frame is blasted and finished with a primer against corrosion. The primer does not need to be removed for welding. Technical drawings are available as PDF and as a 3D STP file, for use in CAD.
A deck socket is better than a fixed twistlock when securing is temporary. A fixed twistlock always stays on the deck and gets in the way of other cargo. With a deck socket such as the DF-31, the twistlock comes out, so forklifts can drive over the deck as well.
DF-31 deck sockets are welded in pairs facing opposite directions because a twistlock slides into the socket sideways. If all sockets face the same way, a container could slide in that direction. With opposing sockets, the container or structure is held in both directions.
No, the DF-31 has a fixed orientation and only takes the Dovetail Twistlock BF-11 and the U-Frame Lashing Eye LP-91-45. Both slide in sideways. This keeps the risk of fitting a twistlock incorrectly low. The Breech Base Deck Socket DF-66 is intended for fitting from above.
