Deck Socket DF-31
Easy to weld to ship's deck or construction. Makes the BF-11 Twistlock and the LP-91-45 Lashing Eye removable
Article number: 10-02-0014-00
| Article number | 10-02-0014-00 |
|---|---|
| Breaking strength | 36 ton |
| Length | 20,2 cm |
| Steel grade | 40Cr |
| Weight | 6.4 kg |
| Width | 13,8 cm |

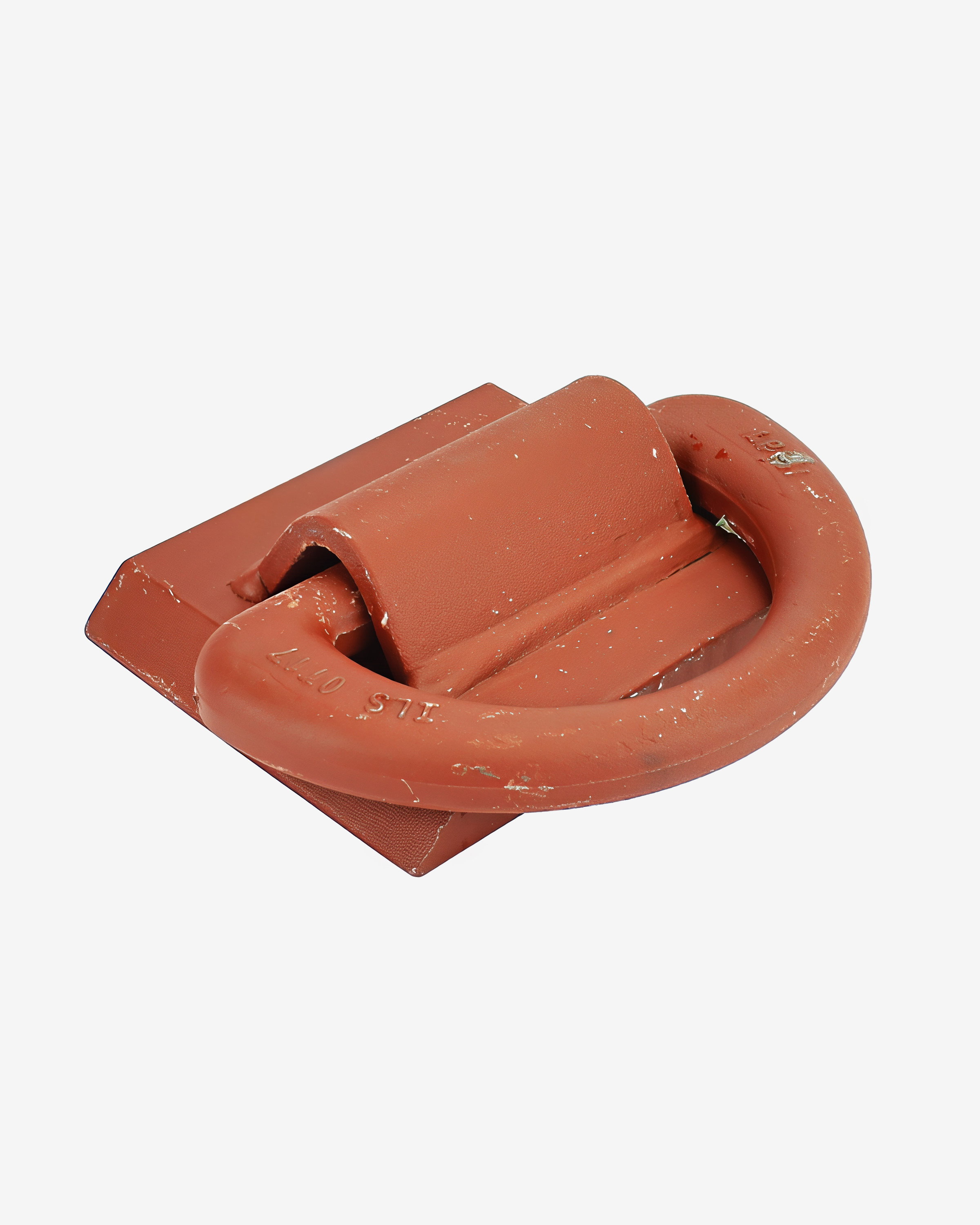

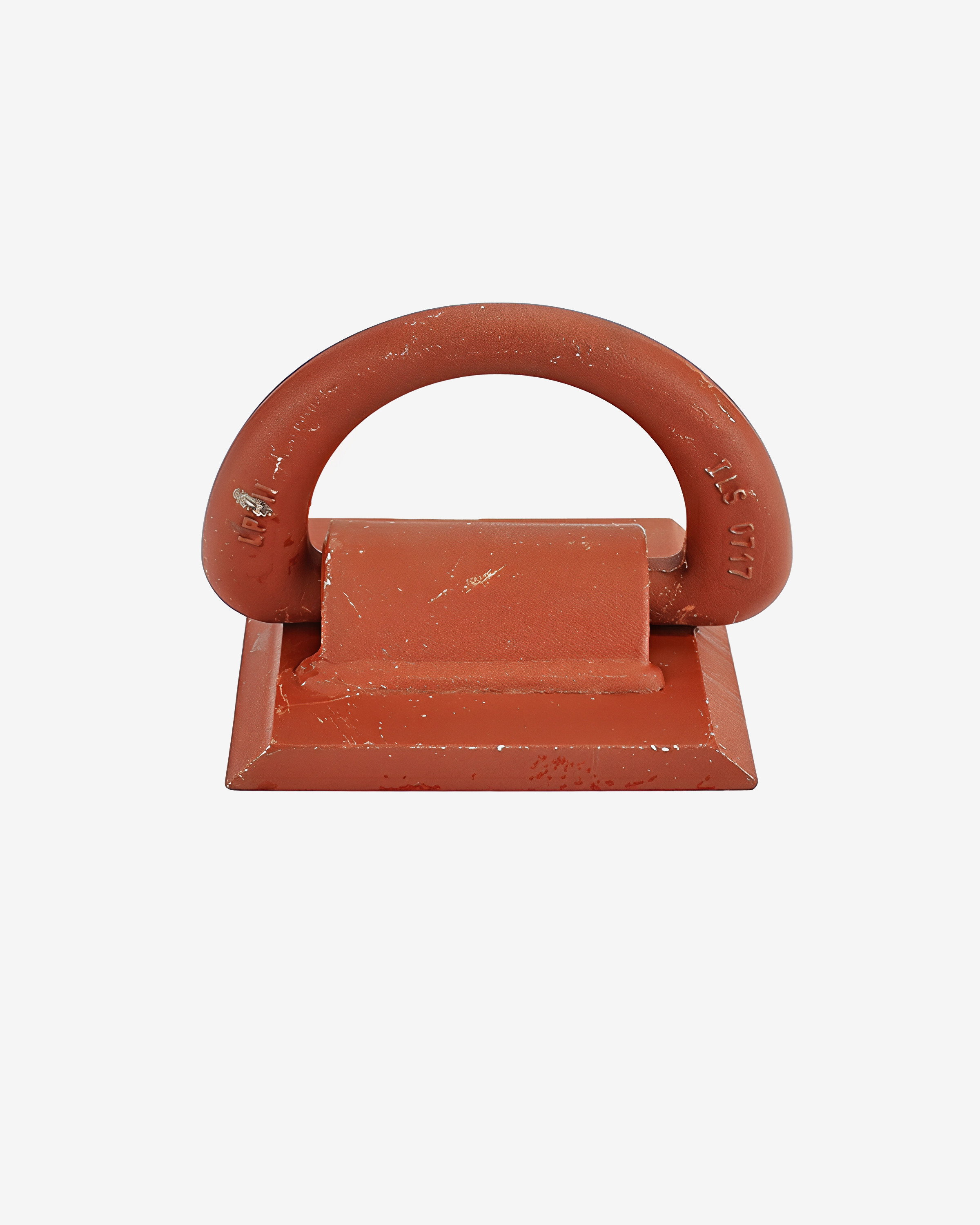

The U-Frame Lashing Eye LP-91-45 is a removable lashing eye for deck socket DF-31. The eye slides sideways into the socket and can be loaded in one direction. The breaking strength is 36 tonnes, the WLL 18 tonnes. When the eye is not needed, it comes out and the deck stays clear.
The LP-91-45 is designed for deck socket DF-31, often found on decks and structures where the Dovetail Twistlock BF-11 is also used. This lets the same deck switch between containers and cargo secured with chains or straps.

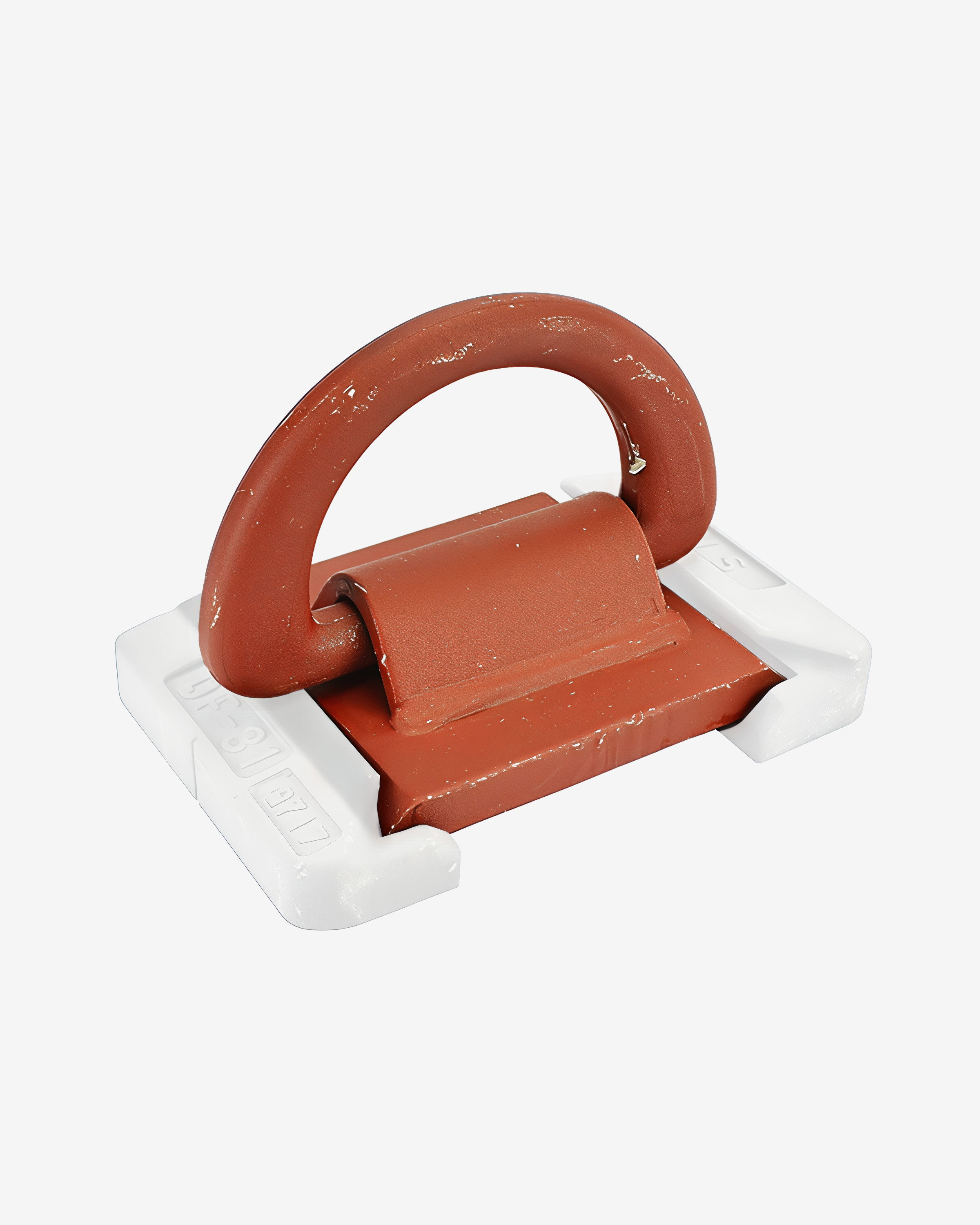

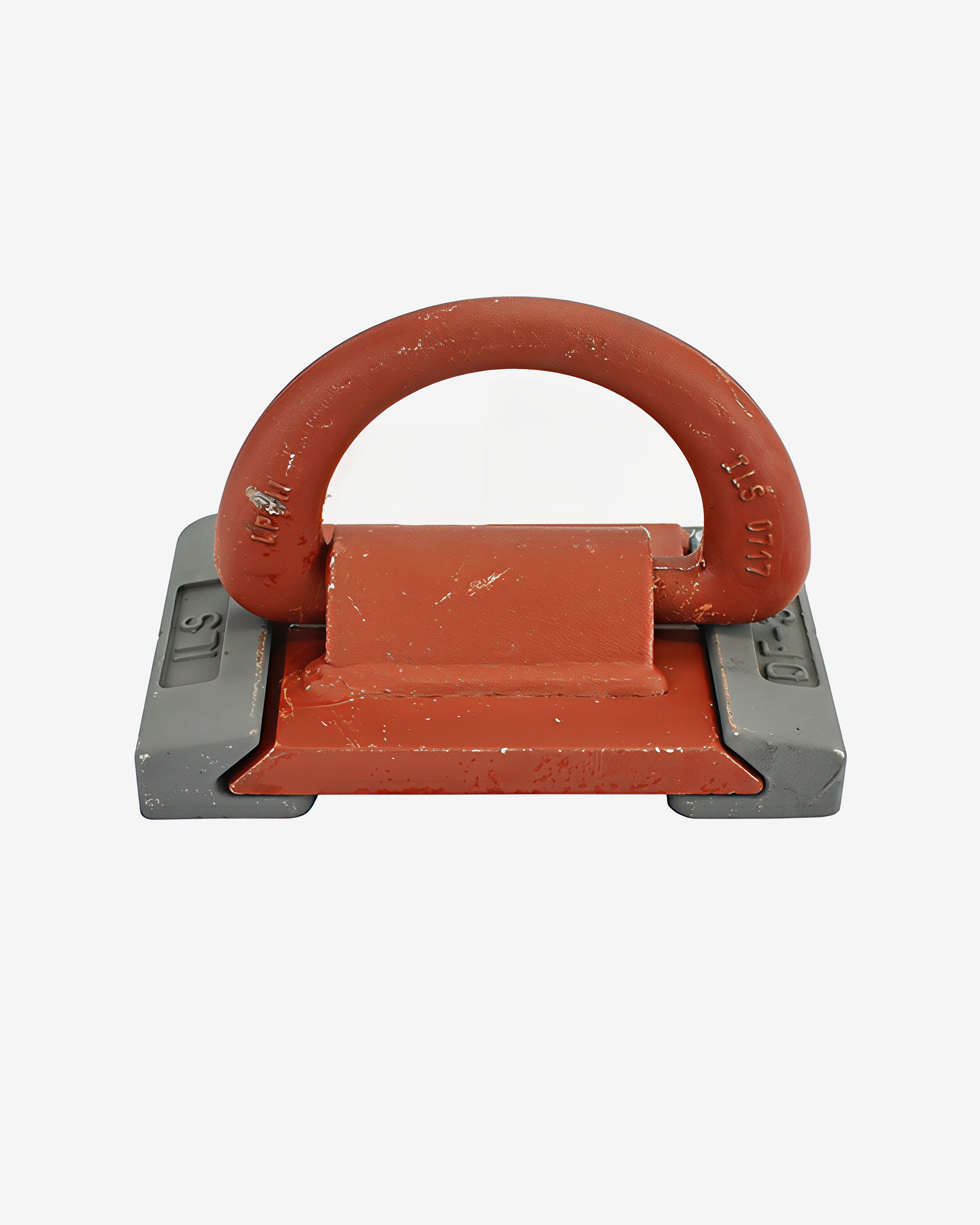

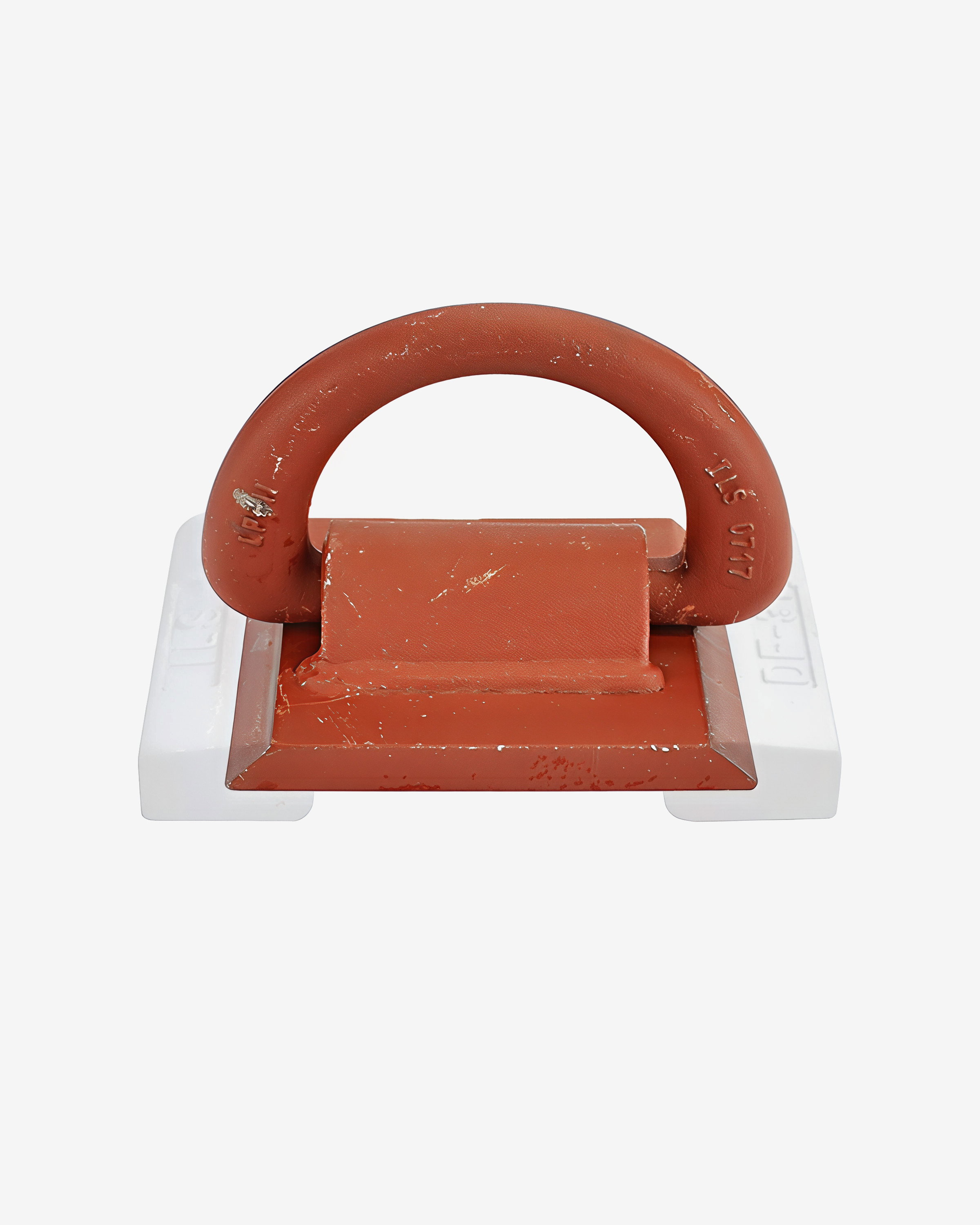

The eye slides into the DF-31 from the side and rests against the rear edge of the socket under load. The welding direction of the DF-31 therefore determines the load direction. The LP-91-45 suits horizontal and vertical mounting, including in vehicles or tight spaces.
The U shape spreads the load evenly. With 36 tonnes breaking strength and 18 tonnes WLL, the eye is intended for heavy cargo on ships, pontoons and in industry.
The LP-91-45 is made of 40Cr steel with a primer that can be painted over, in a colour of choice. Like the deck socket, the eye is intended for use at sea and on inland waterways, not for road transport.
A removable lashing eye is used when an anchor point is not always needed. The eye goes in when required and comes out again afterwards. This is common on ship decks that switch between containers and loose cargo, as with the U-Frame Lashing Eye LP-91-45.
A U-frame lashing eye is the right choice when the pulling force comes mainly from one direction. Its shape and position take up the load in that fixed direction. This works on ship decks where the direction of pull is predictable, as with the LP-91-45 in deck socket DF-31.
The welding direction of the DF-31 determines the load direction because the U-Frame Lashing Eye LP-91-45 rests against a fixed edge in the deck socket under load. Only in that direction is the force transferred properly. That is why the socket orientation is matched to the direction of pull in advance.
