Left-blocking Twistlock for locking stacked shipping containers
Specially designed to safely stack empty containers
Suitable for lateral securing of shipping containers or constructions
Complete set of 8 corner pieces of a shipping container or construction
Easy to weld to ship's deck or construction. Makes the BF-11 Twistlock and the LP-91-45 Lashing Eye removable
Breaking strength 36 t | WLL 18 t
Advanced twistlock for fast stacking of containers
Set of 4 container hooks with an eye diameter of 45 mm
Right-blocking Twistlock for locking stacked shipping containers
Left-closing Twistlock, combine with the Bottom Plate DF-31
Left-locking Twistlock, combine with the Breech Base Base Plate DF-66
Breaking strength 4 t | WLL 2 t
Right-locking Twistlock, combine with the Bottom Plate DF-31
Right-locking Twistlock, combine with the Breech Base Base Plate DF-66
Breaking strength 36 t | WLL 18 t. Suitable for use with the Breech Base Deck Socket DF-66
Easy to weld to ship's deck or construction. Makes the Breech Base Twistlock BF-66 and the Lashing Eye LP-21 removable
Breaking strength 20 t | WLL 10,000 t
Breaking strength 50 t | WLL 25 t
Breaking strength 67 t | WLL 33.5 t
Breaking strength 36 t | WLL 18 t. Combine with Deck Socket DF-31
Suitable for lateral securing of shipping containers or constructions
Suitable as a corner piece of a shipping container or construction
Suitable as a corner piece of a shipping container or construction
Suitable as a corner piece of a shipping container or construction
Suitable as a corner piece of a shipping container or construction
Set of 4 top corner pieces of a shipping container or construction
Set of 4 bottom corner pieces of a shipping container or construction
Suitable for heavy cargo on ships and RoRo transport
Suitable for tensioning a lashing chain
A set of a Lashing Chain with Chain Tensioner
On a ship, at a terminal or in a depot, containers need to stay in place, even with swell, wind and high stacks. Navacqs supplies twistlocks, deck sockets, corner castings, bridge fittings, lashing eyes and lashing chains for this purpose. Technical drawings in PDF and STP format are available for most components.
On board, containers are stacked on top of each other and secured to the deck. Between two containers sits the Intermediate Twistlock IF-51 or the Semi Automatic Twistlock IF-55. On deck, the Dovetail Twistlock BF-11 and the Breech Base Twistlock BF-66 fit into a deck socket. For empty containers in a depot, there is the Depot Stacker IF-91.
Repairing a container or building a custom steel structure requires corner castings. These allow the structure to be lifted, stacked and connected using the same components as a standard shipping container.
Besides the container itself, the cargo also needs to be secured, inside a container or on an open deck. Machinery and steel structures are secured with a lashing chain and tension lever to lashing eyes. These are available with breaking strengths from 4 t to 67 t.

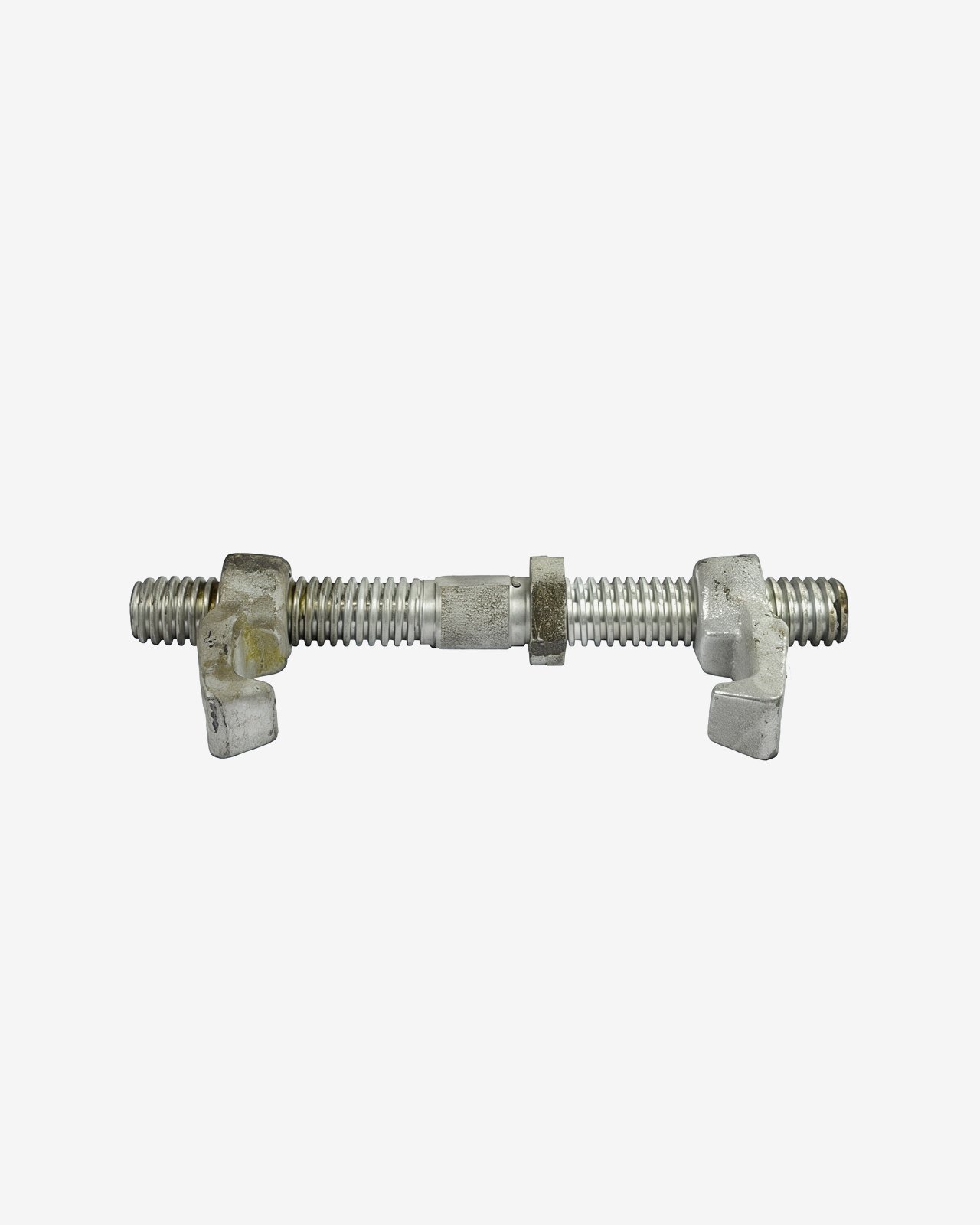

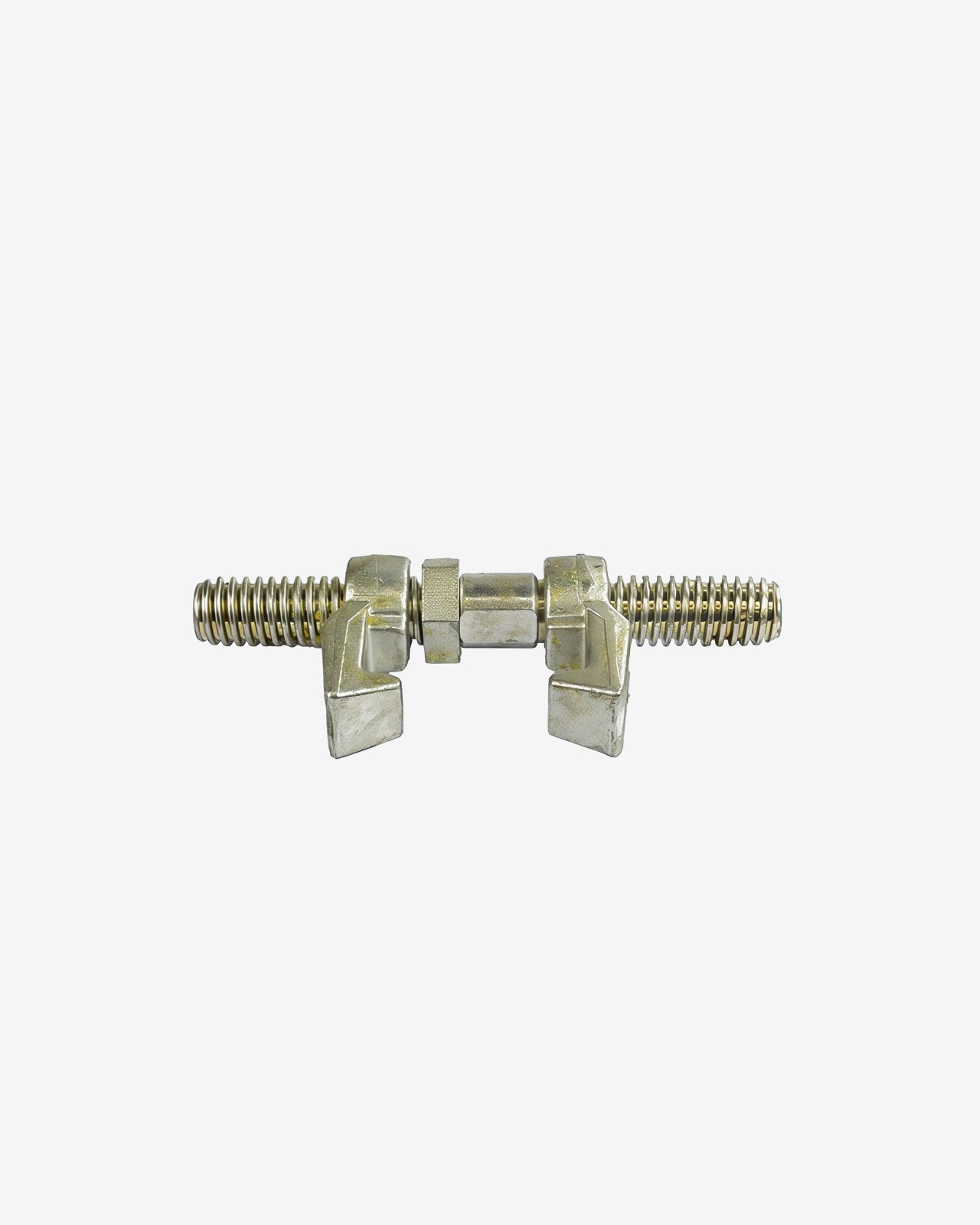

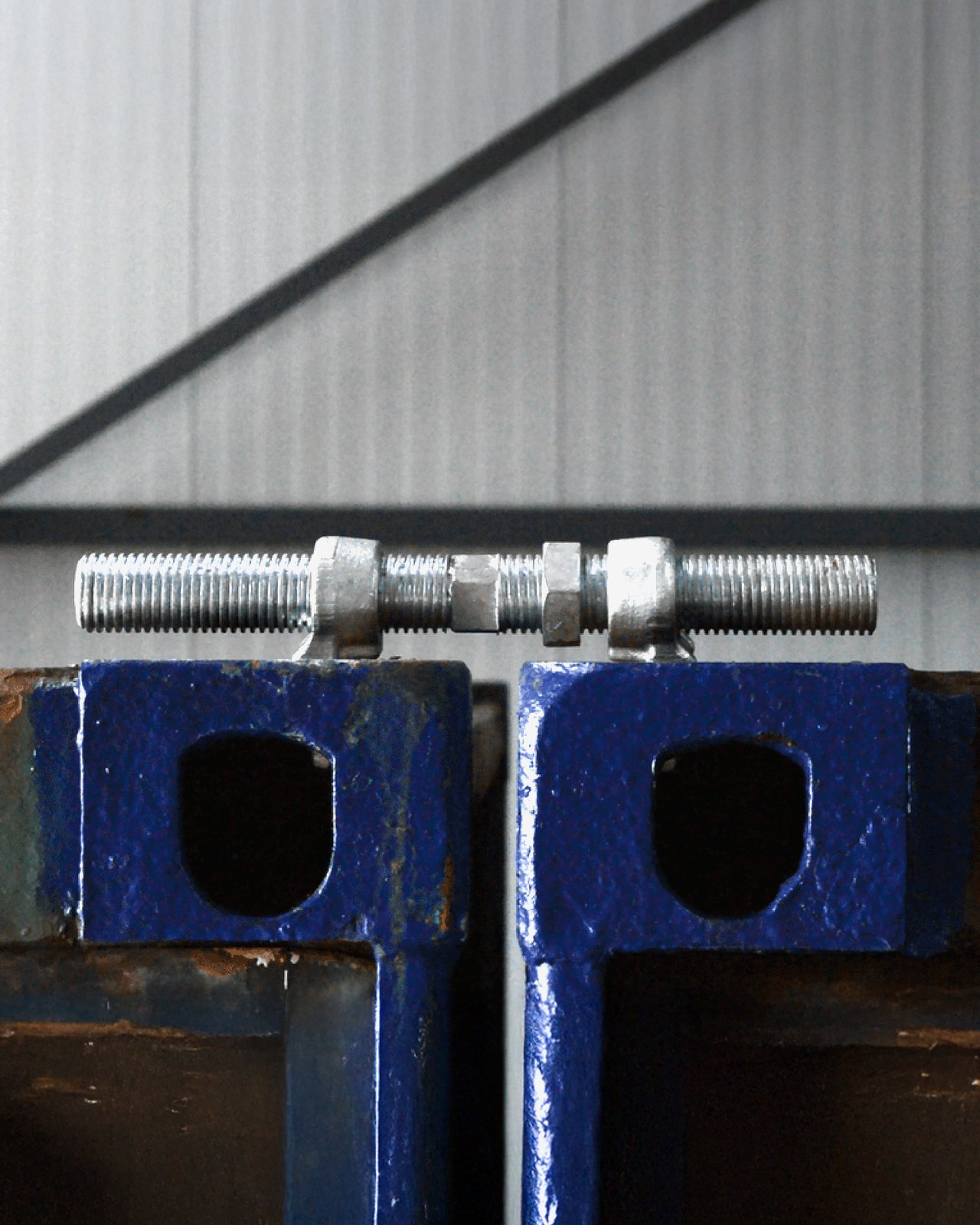

Containers placed side by side, on board or ashore, are connected to each other with bridge fittings. Units and structures with standard corner fittings can be anchored to each other in the same way.
Container lashing equipment is the collective term for components that secure containers and cargo during transport and storage:
twistlocks connect containers to each other and to a chassis
bridge fittings link containers placed side by side
lashing eyes and lashing chains secure cargo inside a container
Shipping containers have a standardised corner fitting at all eight corners, in line with ISO 1161. Twistlocks, bridge fittings and other lashing components engage with these fittings. As a result, standard components fit virtually any ISO container, whatever its length or type. Where corner fittings are damaged or non-standard, a check beforehand is advisable.
Yes. Navacqs supplies container lashing equipment per piece or in small quantities, for example to replace a few worn twistlocks or to equip a single container. Terminals, depots and shipping lines ordering larger volumes benefit from tiered pricing.
