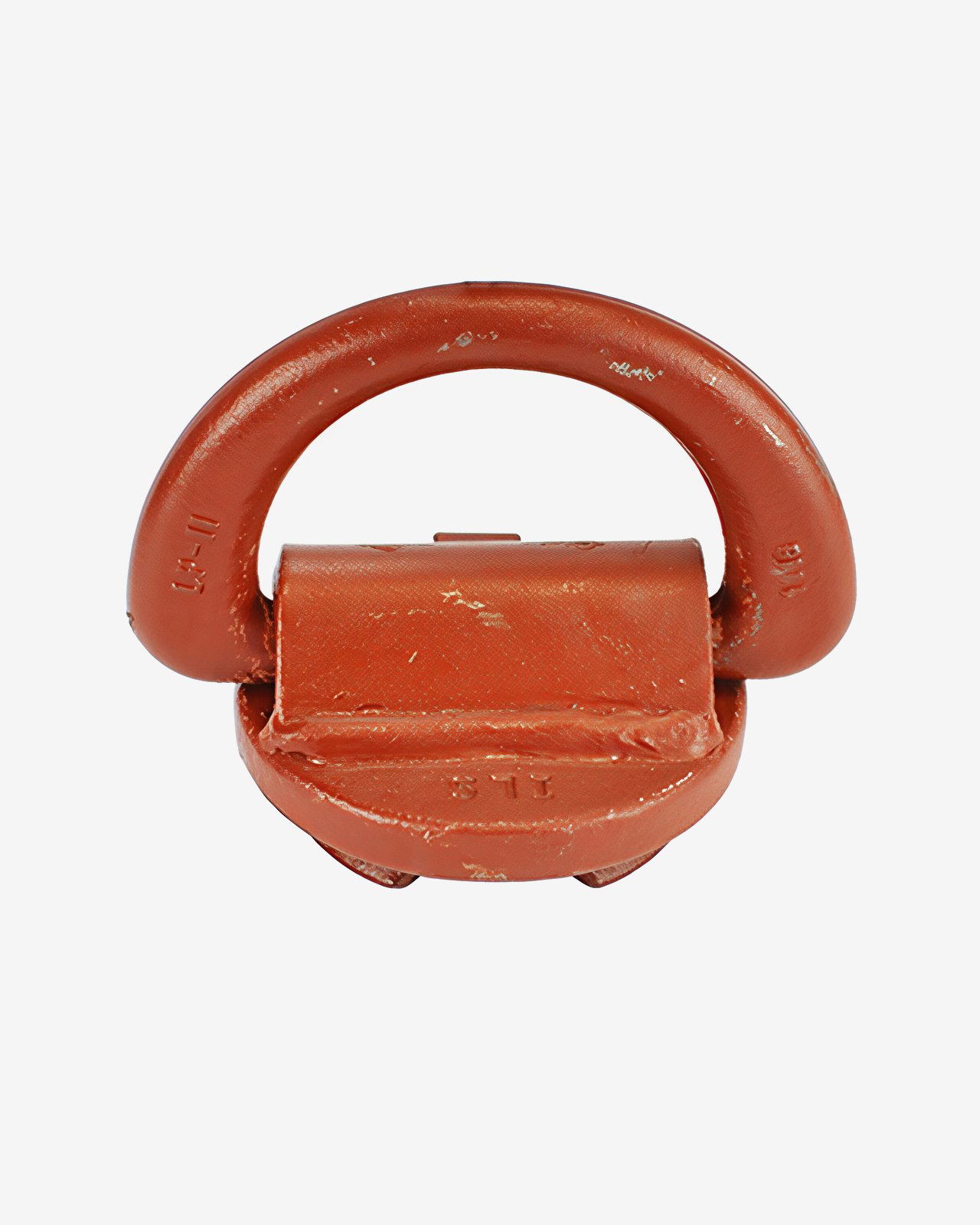

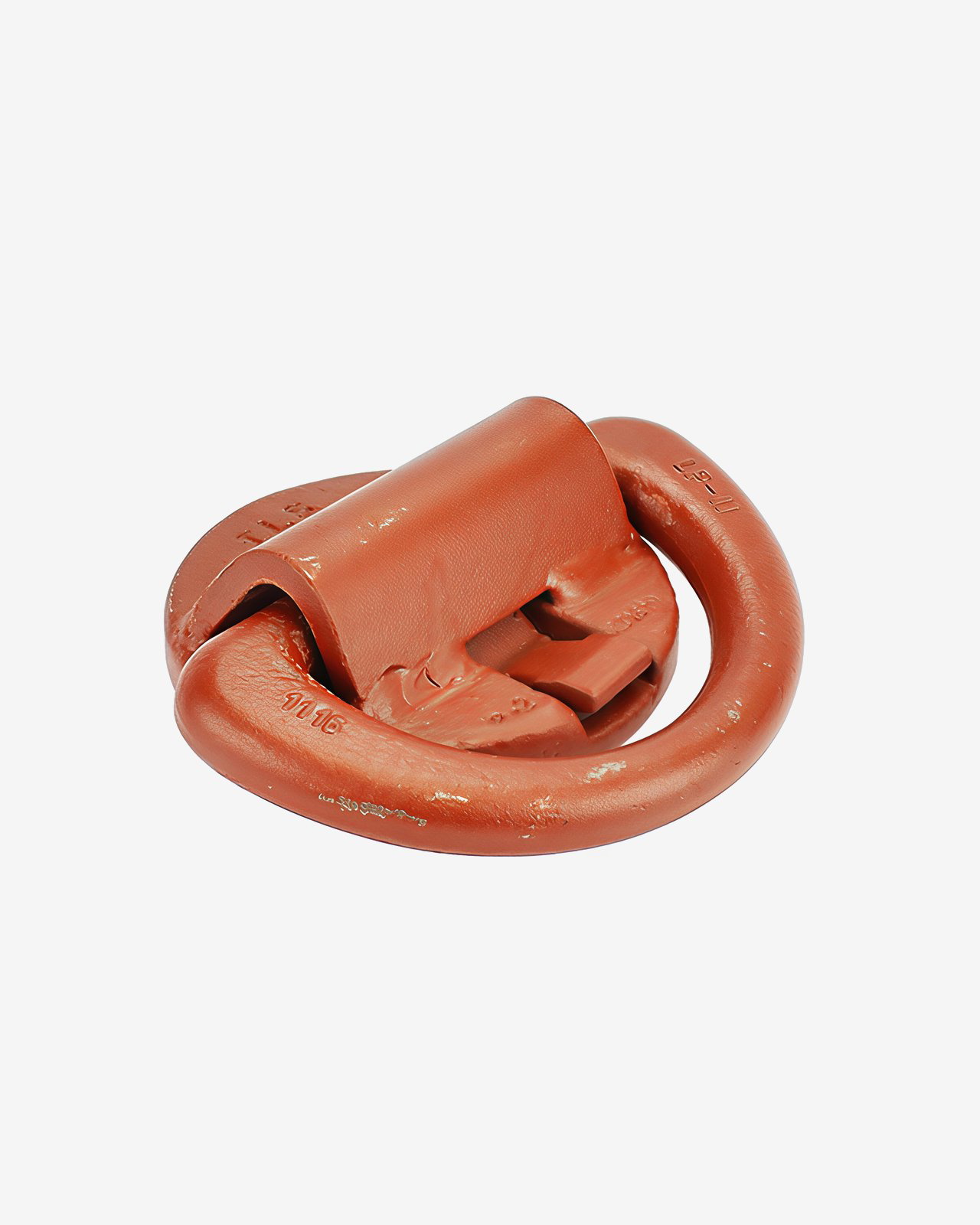

The Breech Base lashing eye (D-ring) LP-21 is designed for cargo securing in maritime and industrial applications. With a breaking strength of 36 tonnes, it suits securing heavy cargo. Because the lashing eye is removable, it fits installations where flexibility and saving space matter.
Compatible with the DF-66 Deck Socket

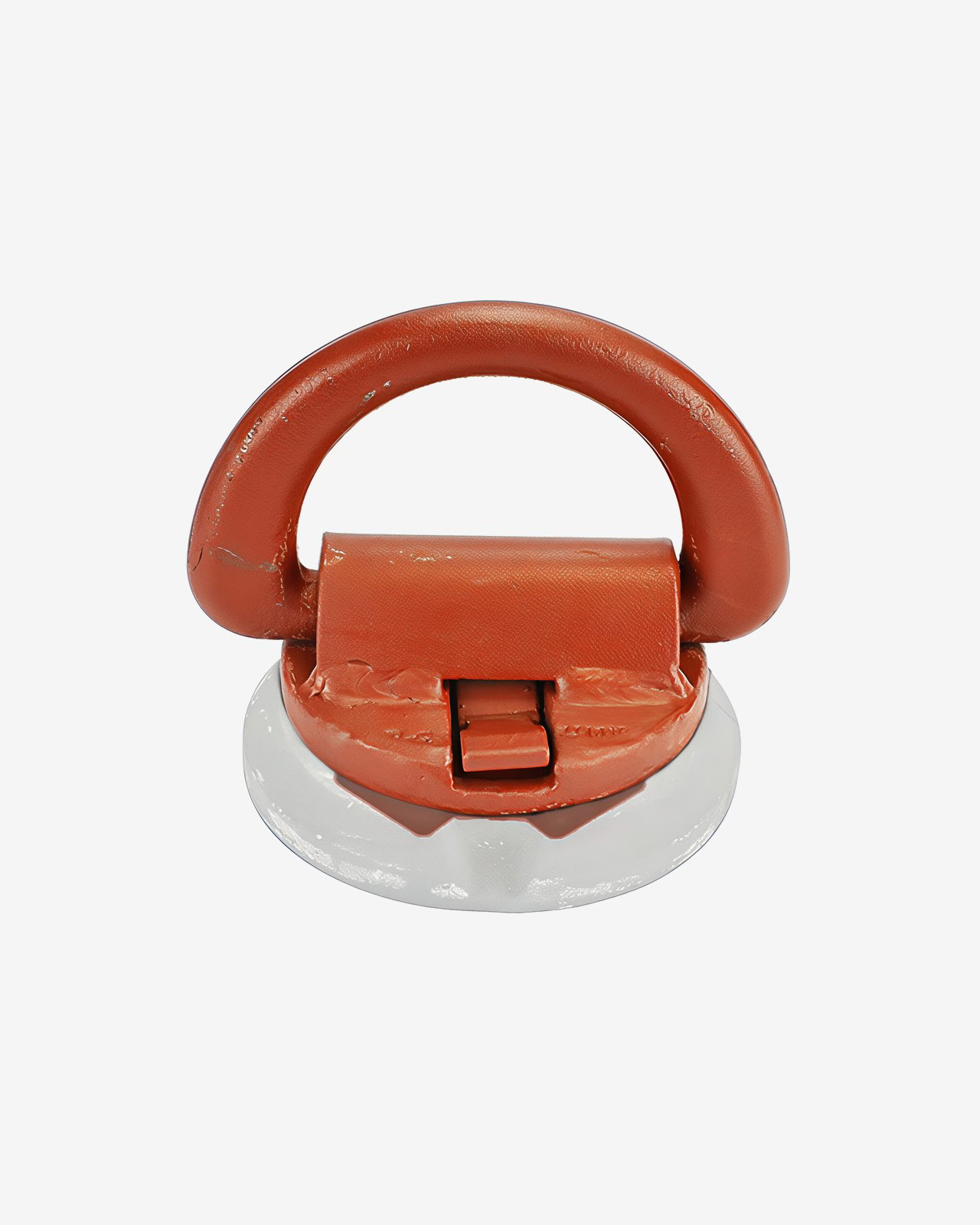

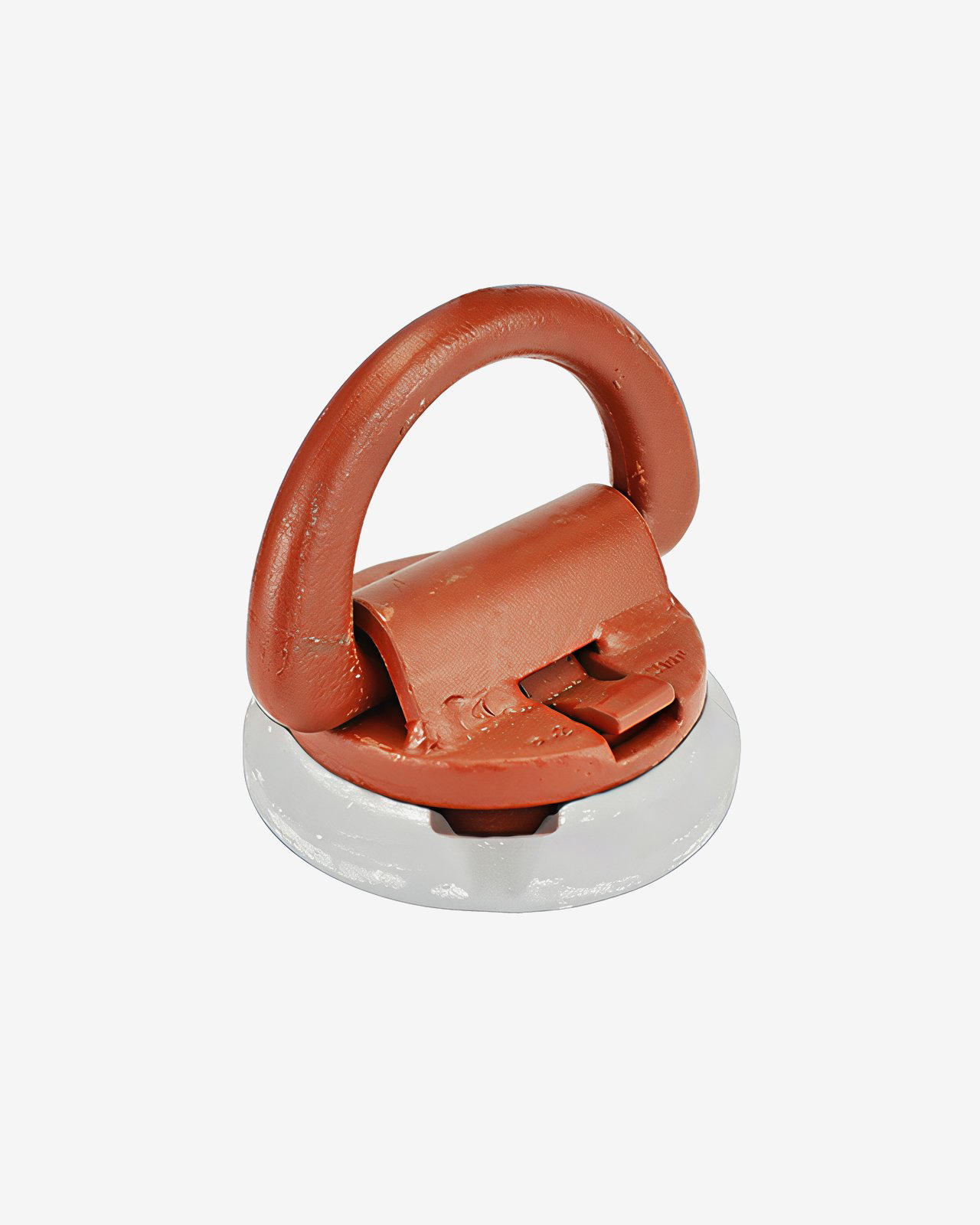

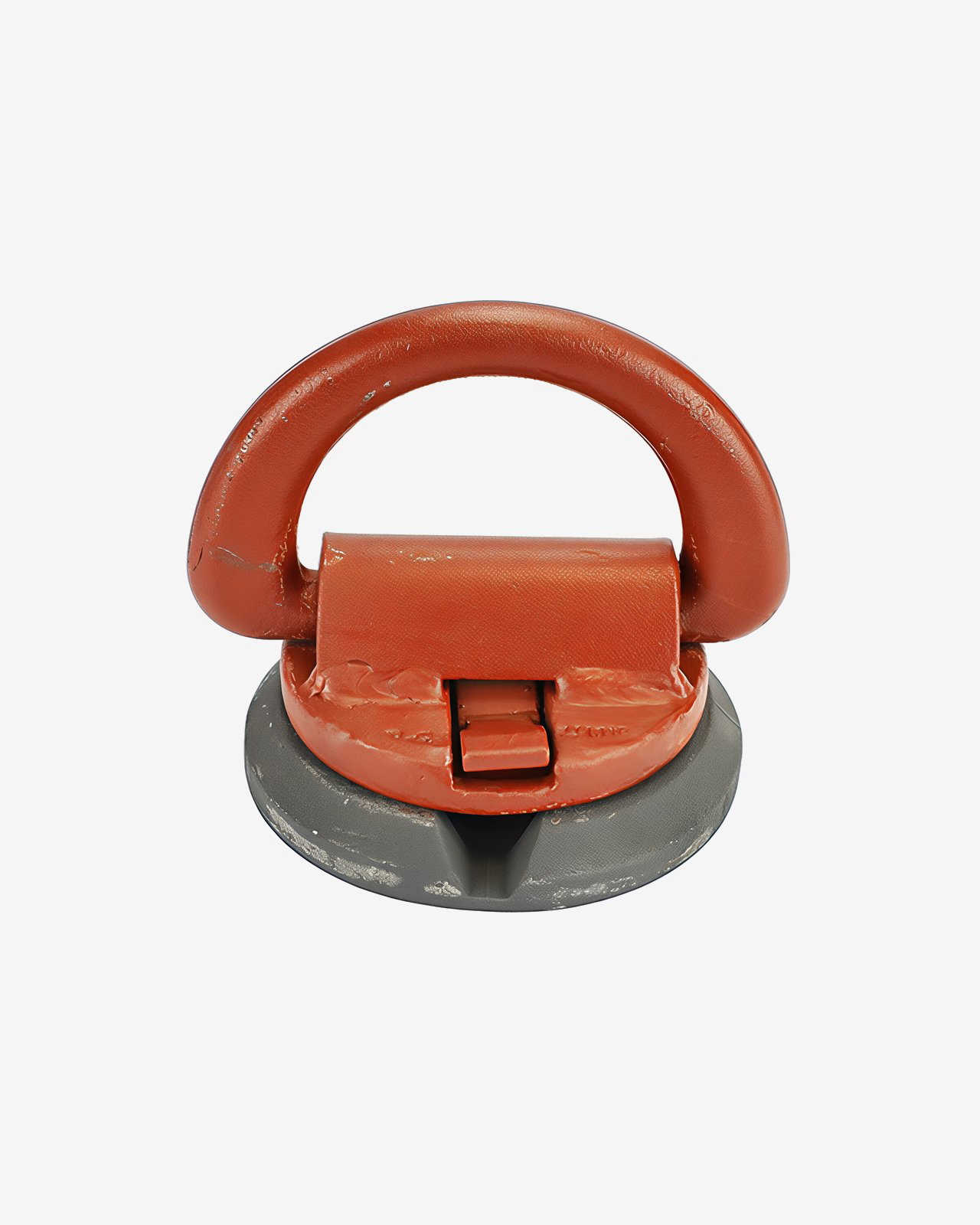

The LP-21 is designed for the Breech Base Deck Socket DF-66. This deck socket has a locking mechanism that stops the lashing eye from coming loose during transport. Once placed, the eye locks into the socket. It can be loaded in four directions, which makes securing different types of cargo more flexible.
Safe and quick installation
The LP-21 is fitted from above, so it can also be used in tight or hard to reach positions. After placing, the eye is turned a quarter turn and a locking pin secures it. It stays in place, even under heavy load. Thanks to quick fitting and removal, the surface stays clear when the lashing eye is not in it.
Compatible with twistlocks and other securing methods

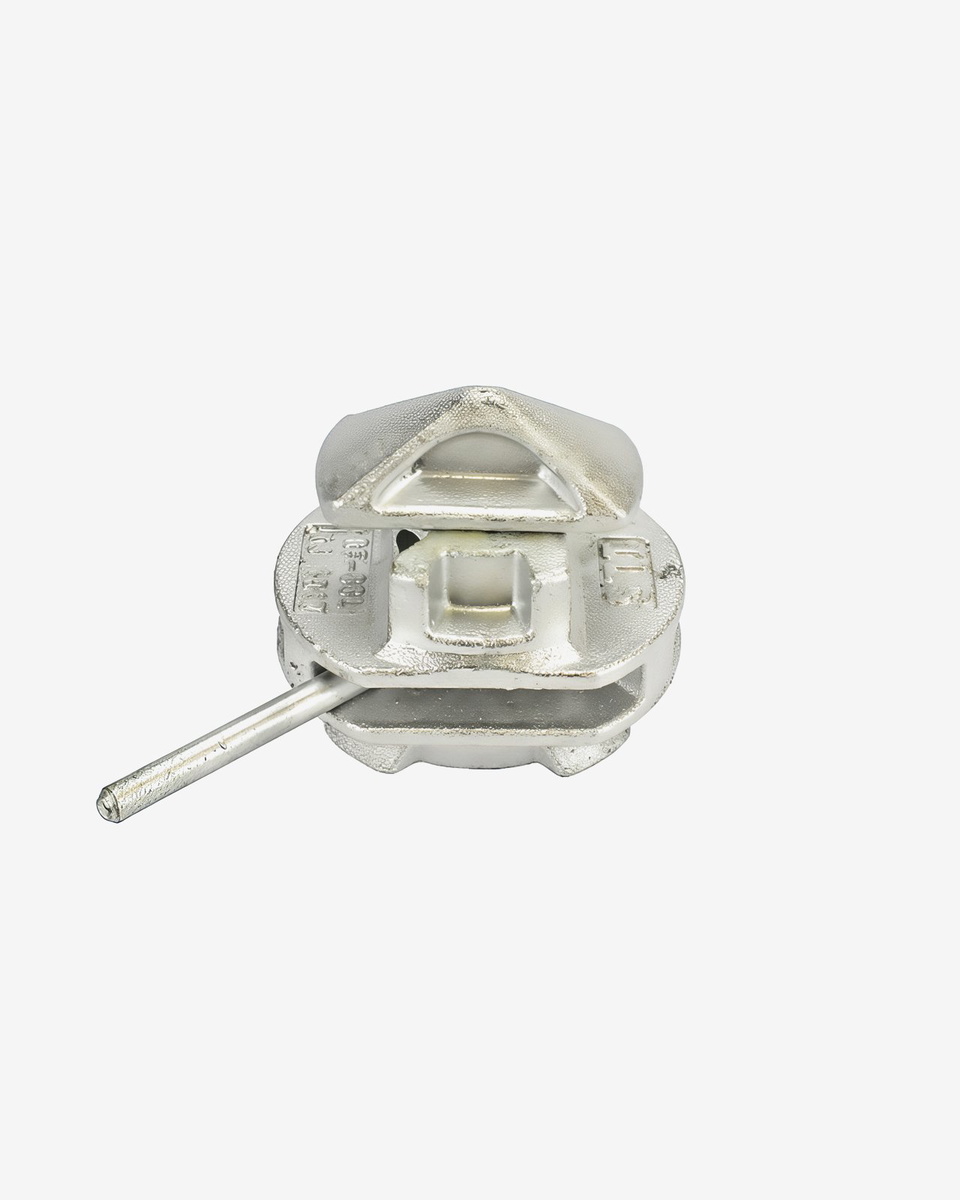

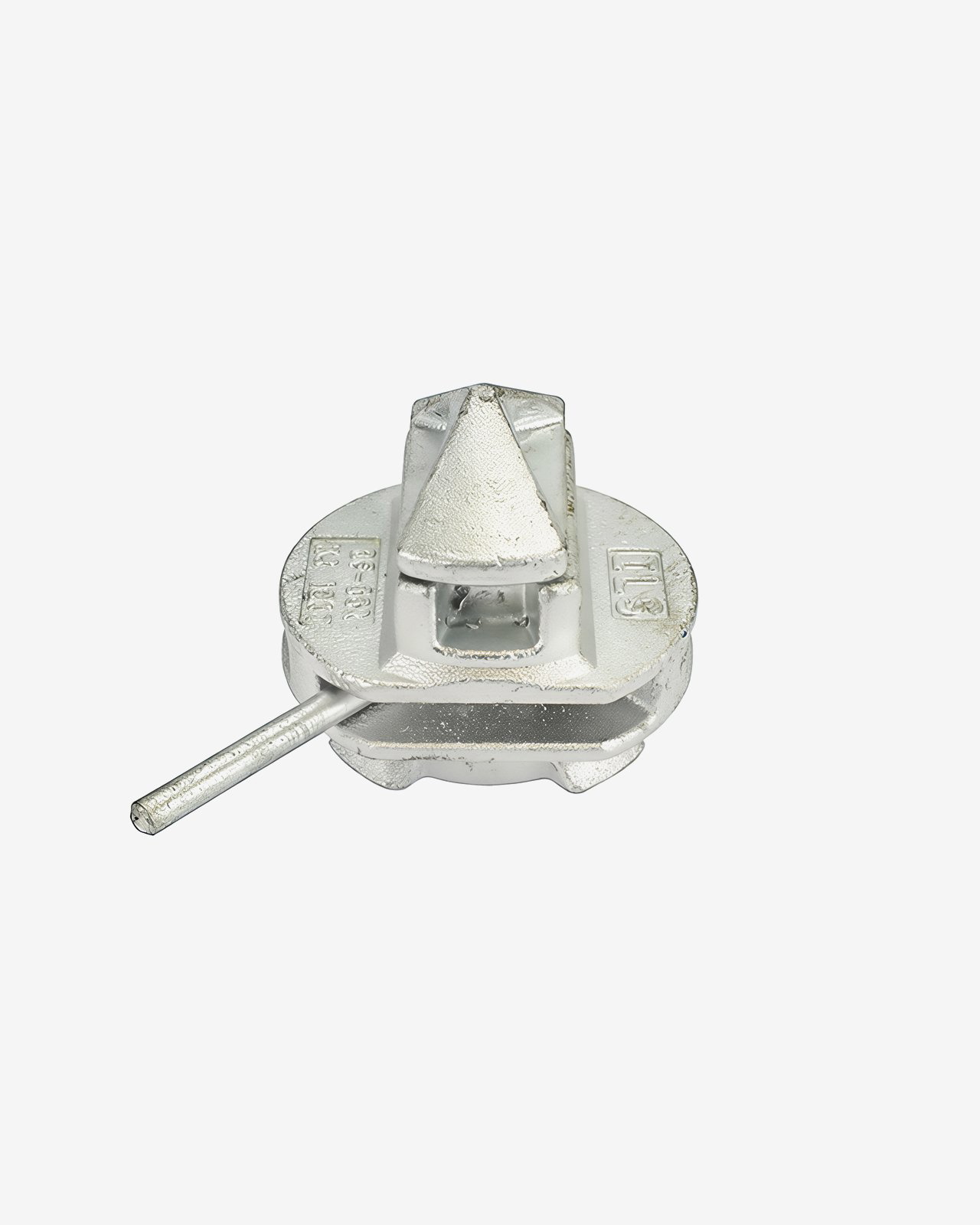

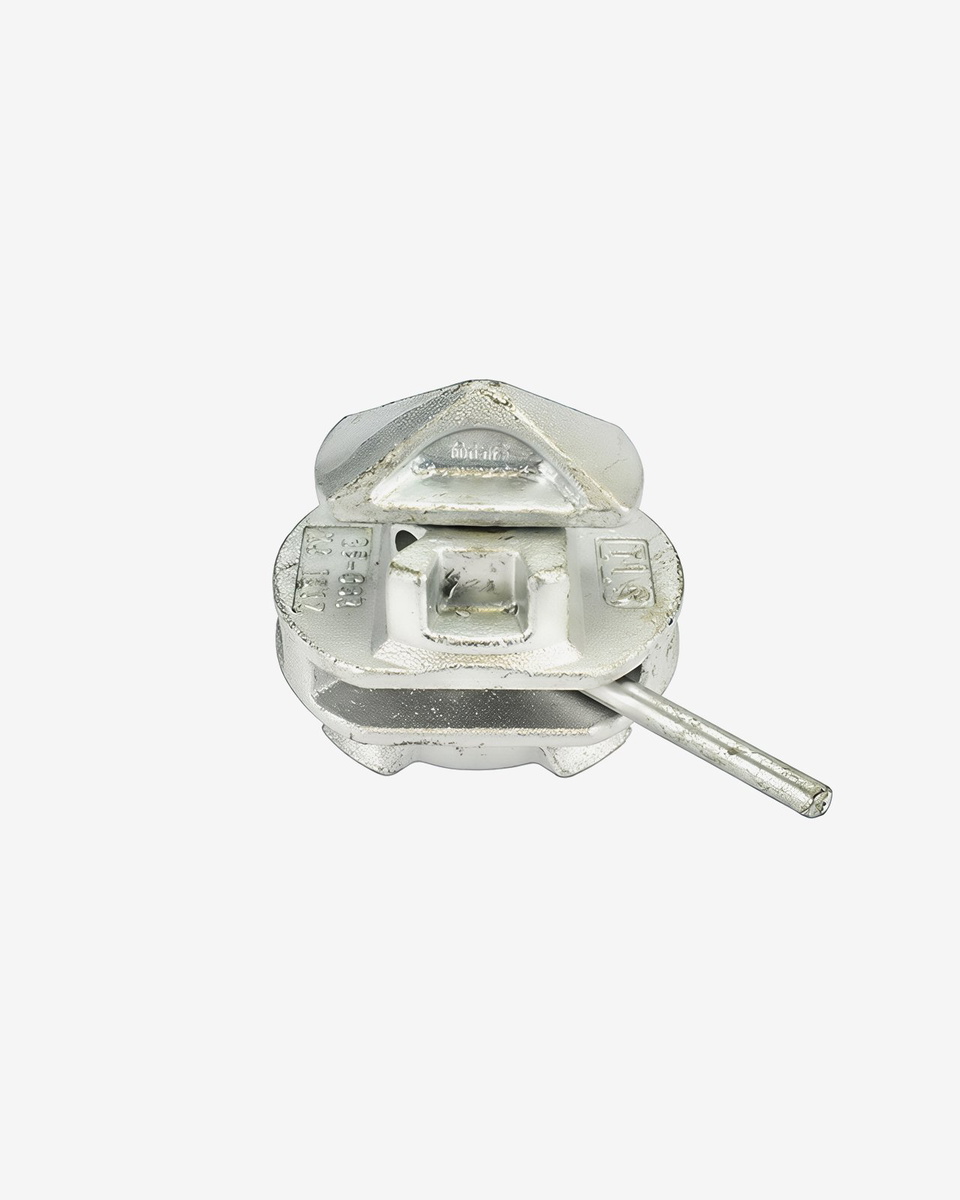

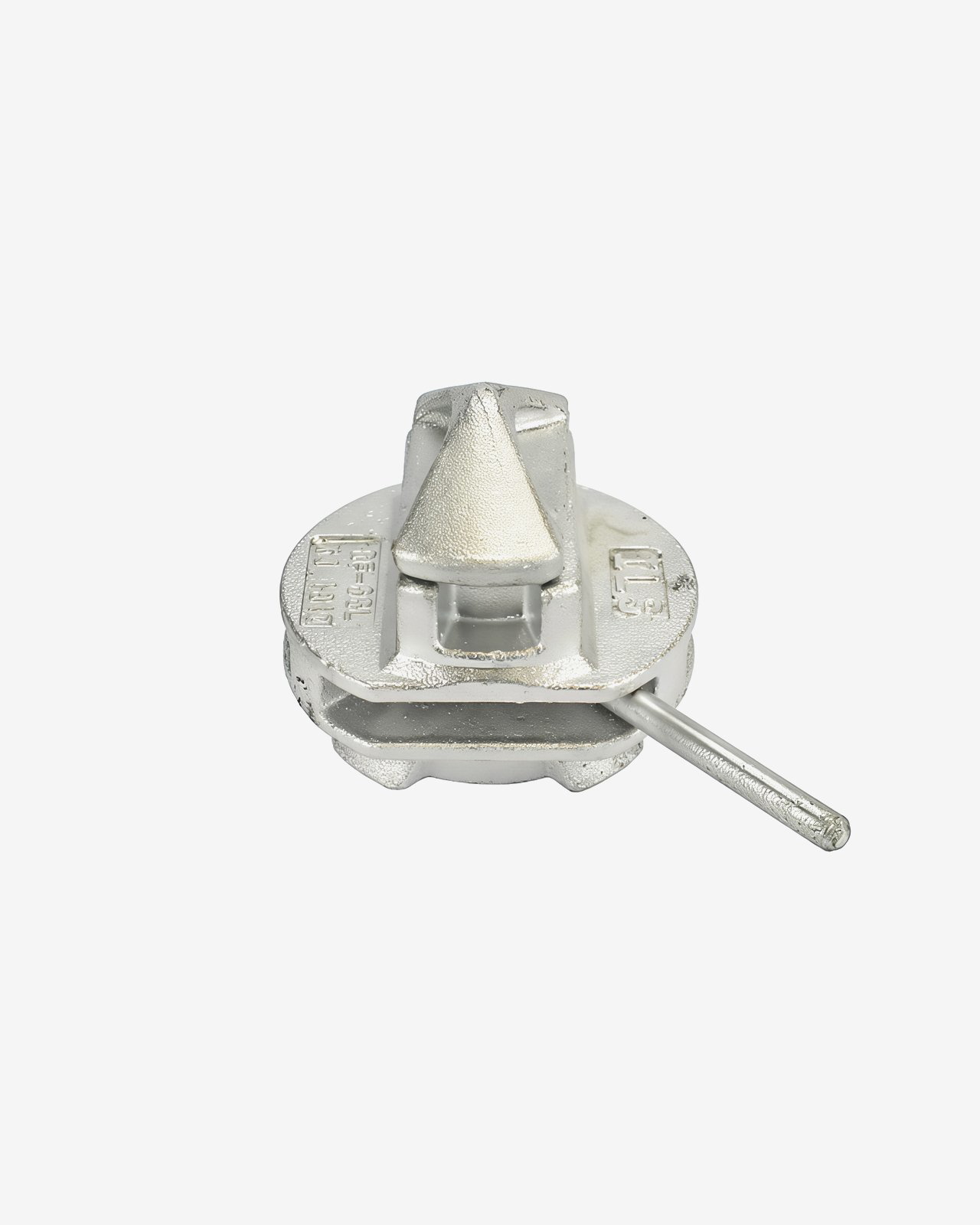

The DF-66 suits not only the LP-21 but also twistlocks such as the Breech Base Twistlock BF-66. This allows containers and other structures to be secured at the same deck position. Combining with chains, straps or other cargo securing equipment is straightforward.
Forged and corrosion resistant
The LP-21 is made of 40Cr forged steel with a primer coating that can be painted over. The coating protects against outside influences. The lashing eye weighs 8.3 kg. Technical drawings and 3D models are available for design purposes.
