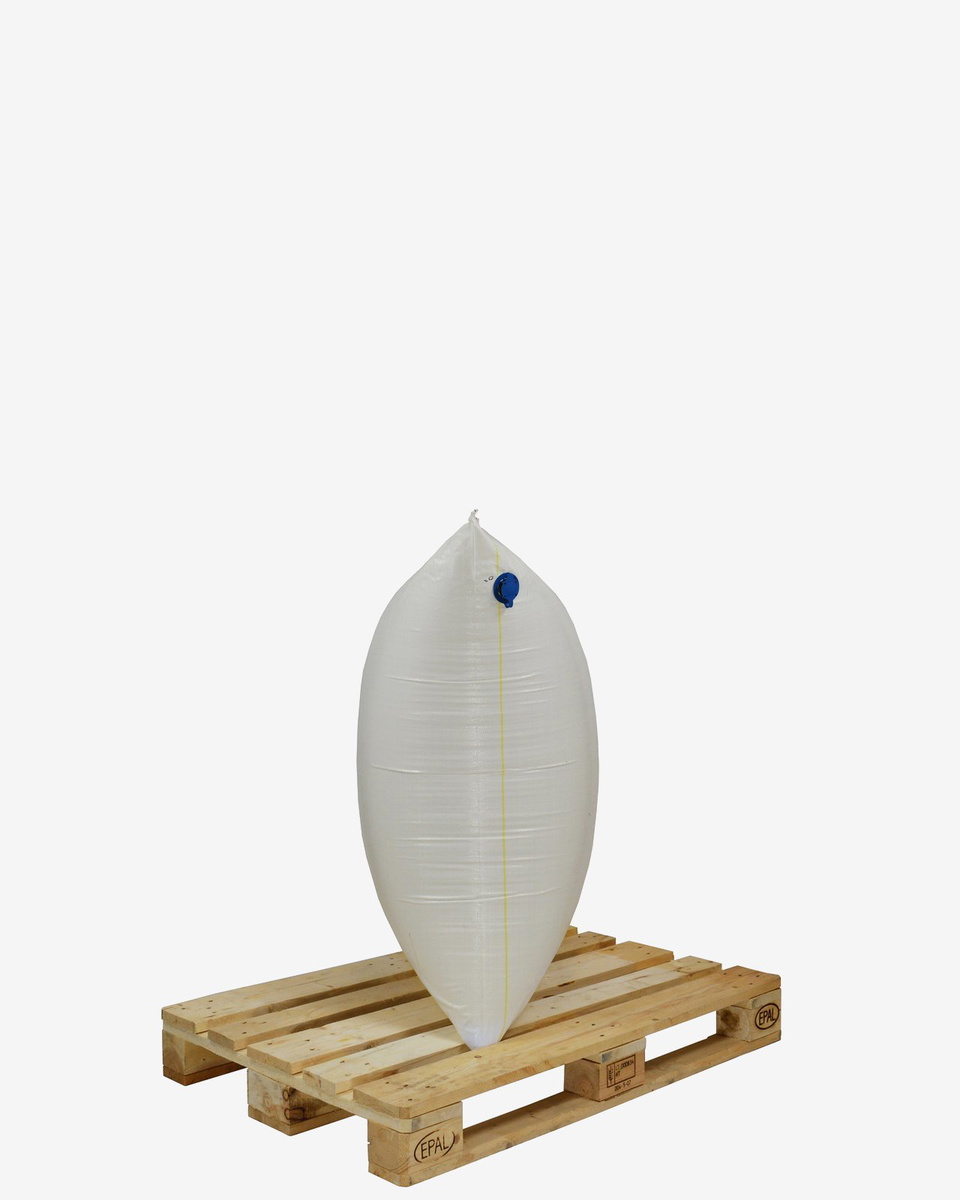

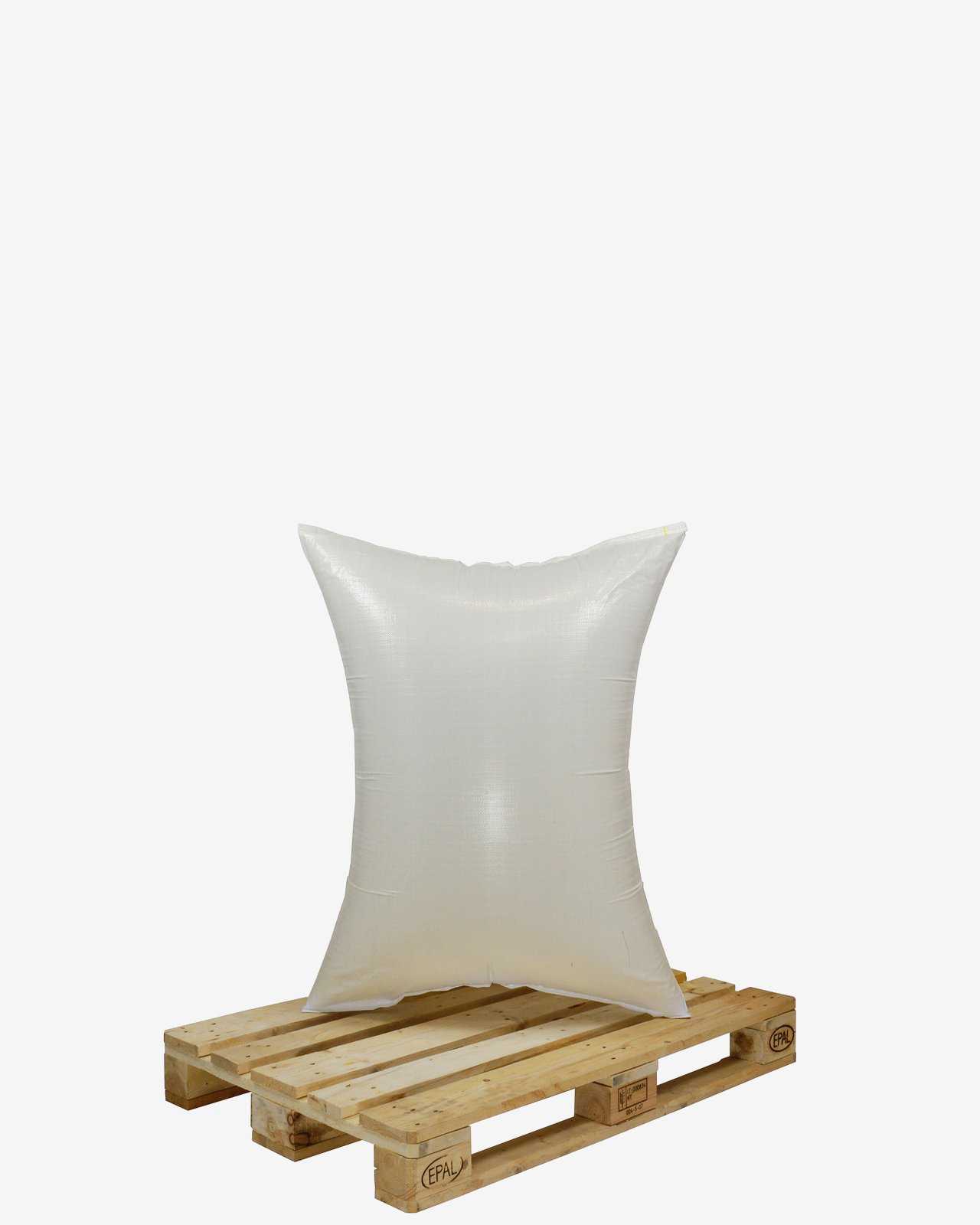

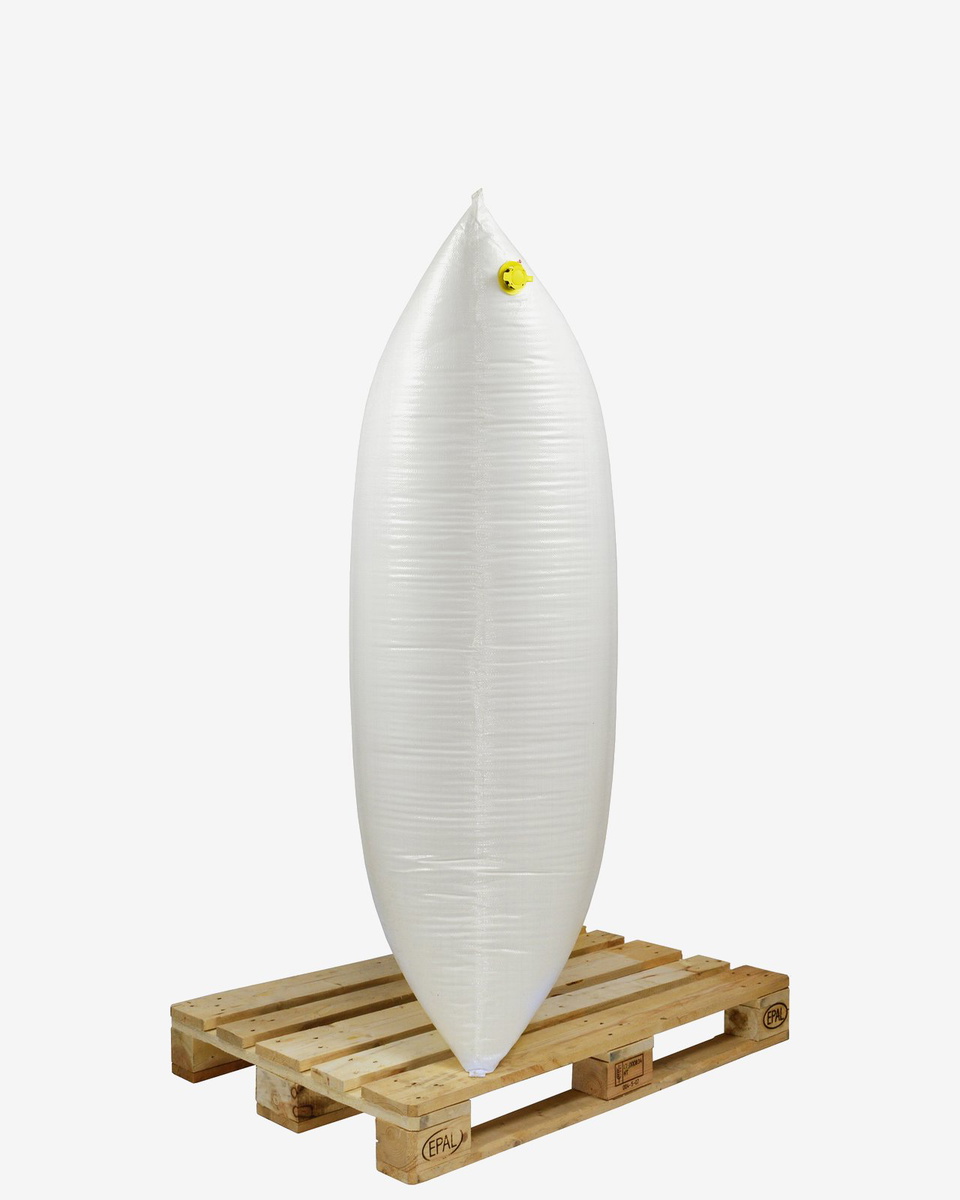

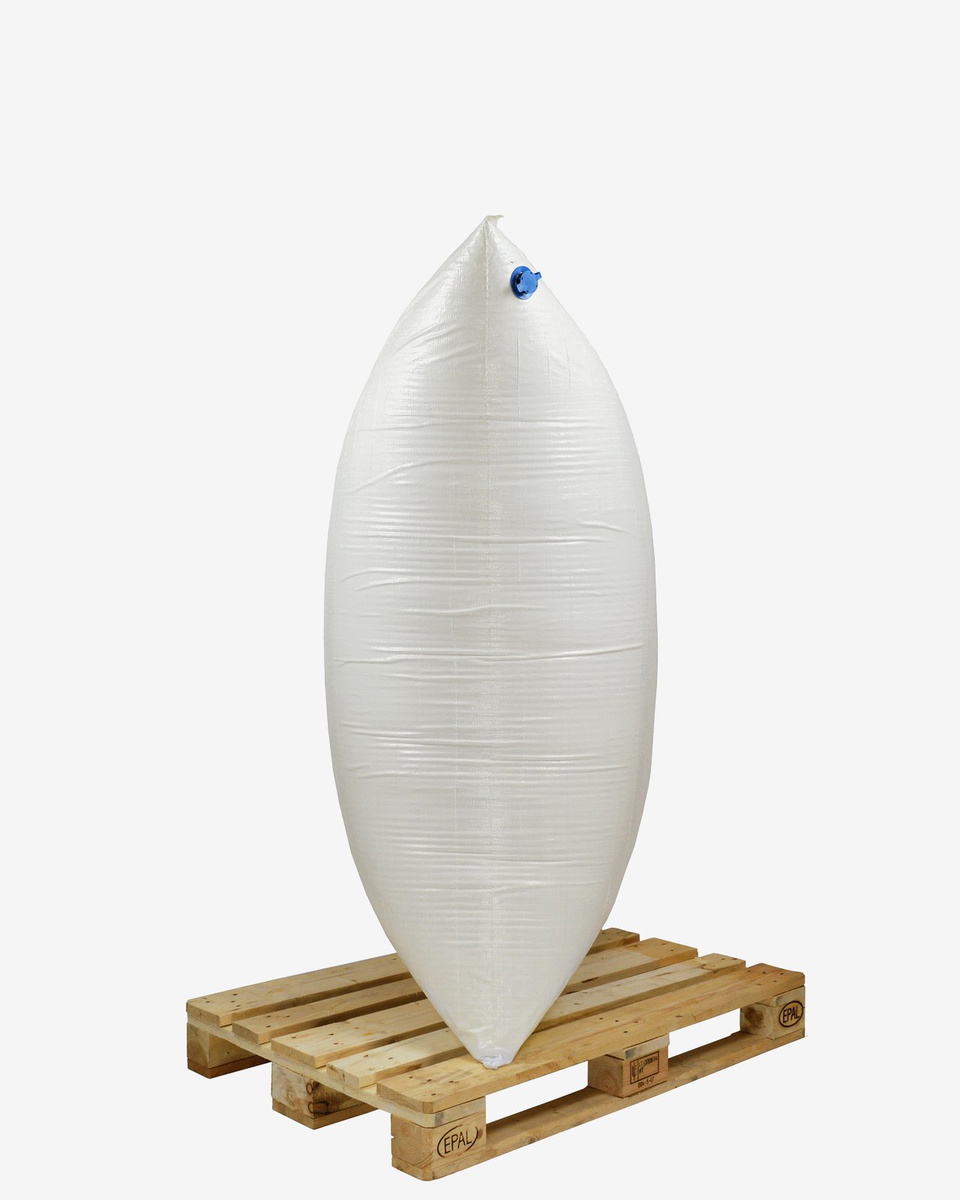

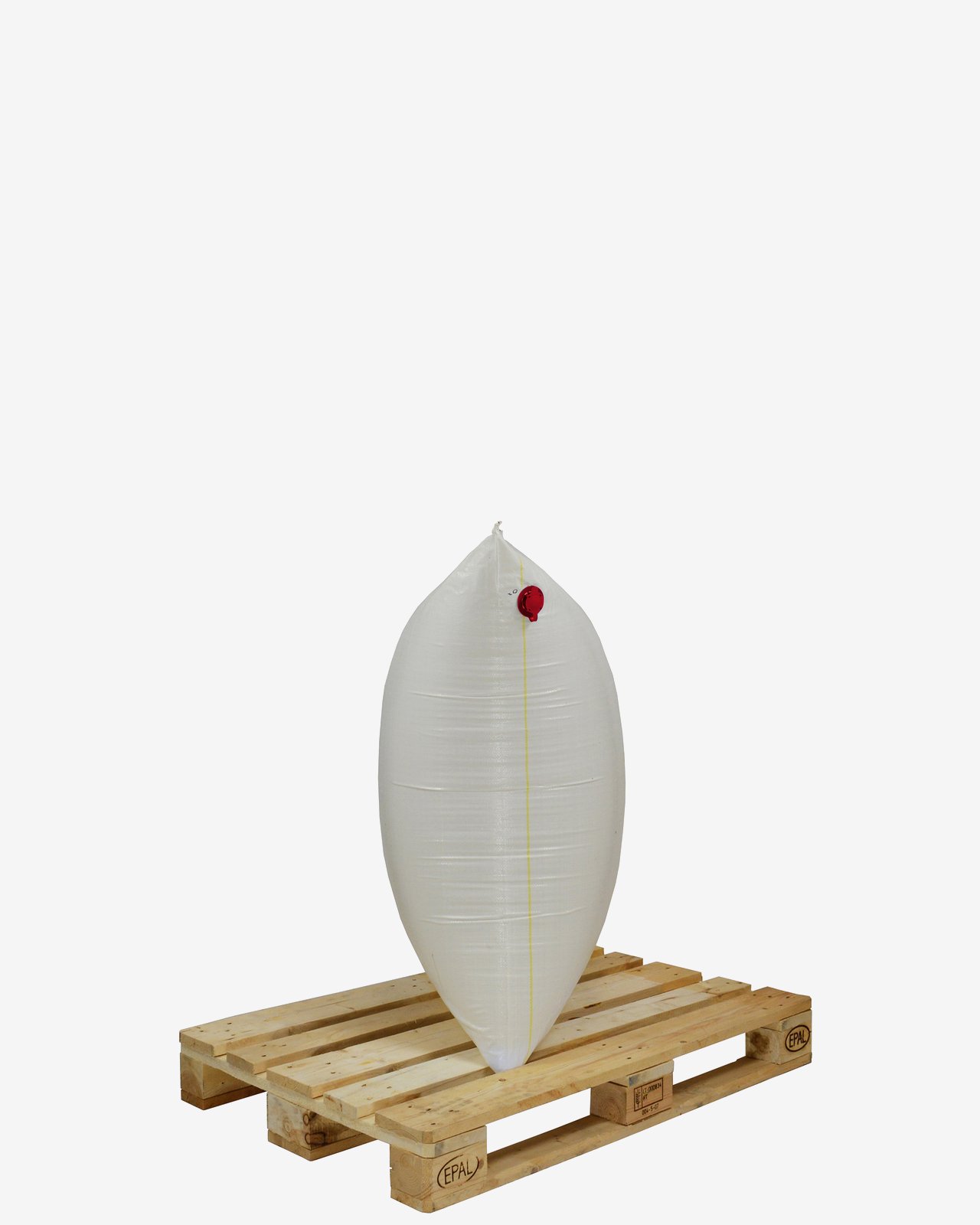

CargoSecure Dunnage Bag 90 x 120 cm
For low pallets with a gap of up to 35 cm
For low pallets with a gap of up to 35 cm
For tall pallets with a gap of up to 35 cm
For low pallets with a gap of up to 55 cm
For tall pallets with a gap of up to 55 cm
Battery-powered compressor suitable for CargoSecure and CargoPlus dunnage bags
For low pallets with a gap of up to 35 cm
For tall pallets with a gap of up to 35 cm
For low pallets with a gap of up to 55 cm
For tall pallets with a gap of up to 55 cm
Suitable for CargoSecure and CargoPlus dunnage bags

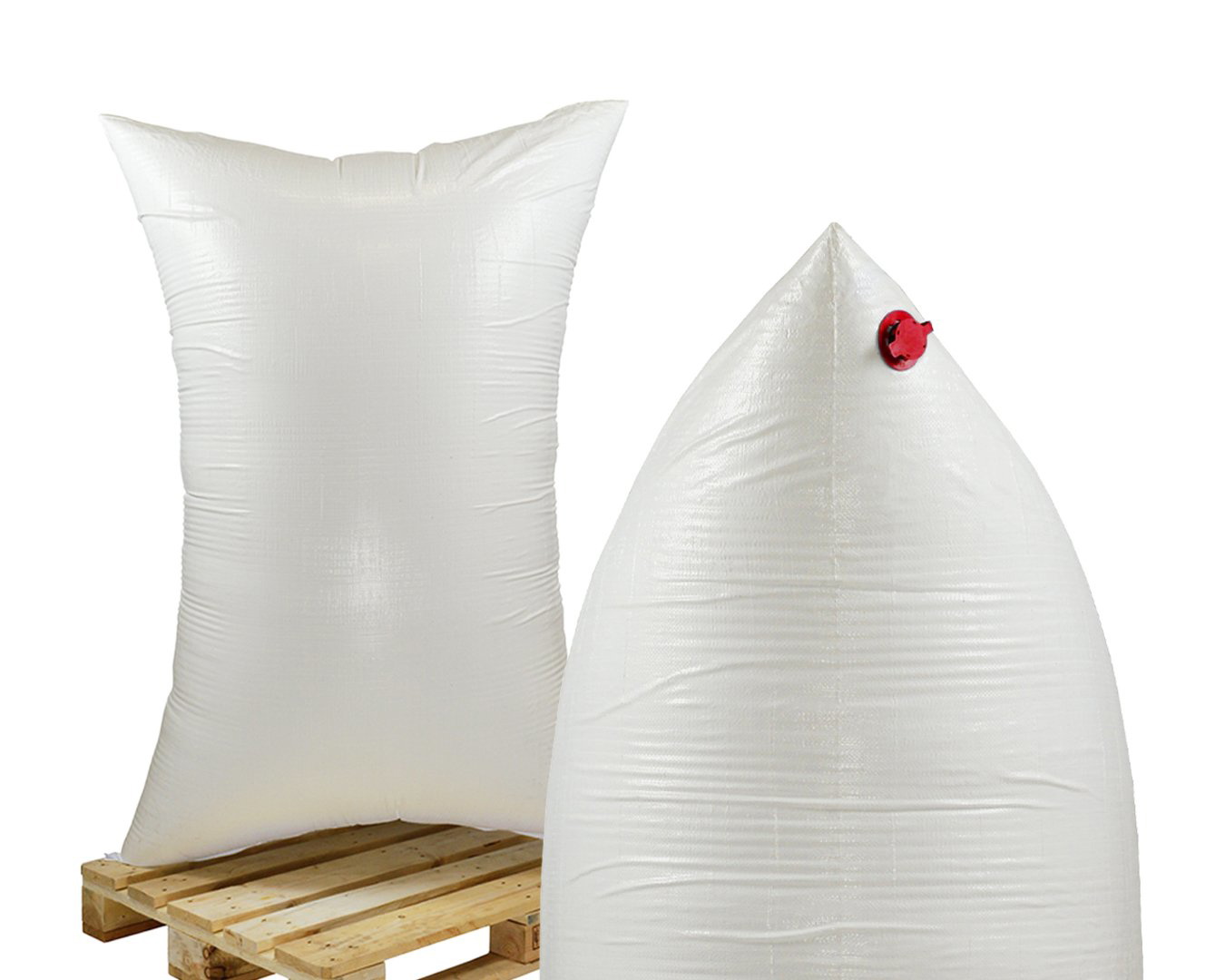

A dunnage bag fills the empty space between pallets, or between the load and the wall, and keeps the cargo in place during transport. The bag goes in deflated and is then inflated until it sits tight. Navacqs supplies two types: the reusable CargoSecure for road and sea freight, and the CargoPlus with AAR Level 1 approval for rail transport in the United States and Canada, among other uses.
Empty space in a container or trailer is often unavoidable, for example with pallets of different sizes or a load that does not fill the whole floor. During braking, cornering or heavy seas, the cargo shifts into that space. An inflated dunnage bag spreads the pressure across the face of the pallets and holds the load in position.

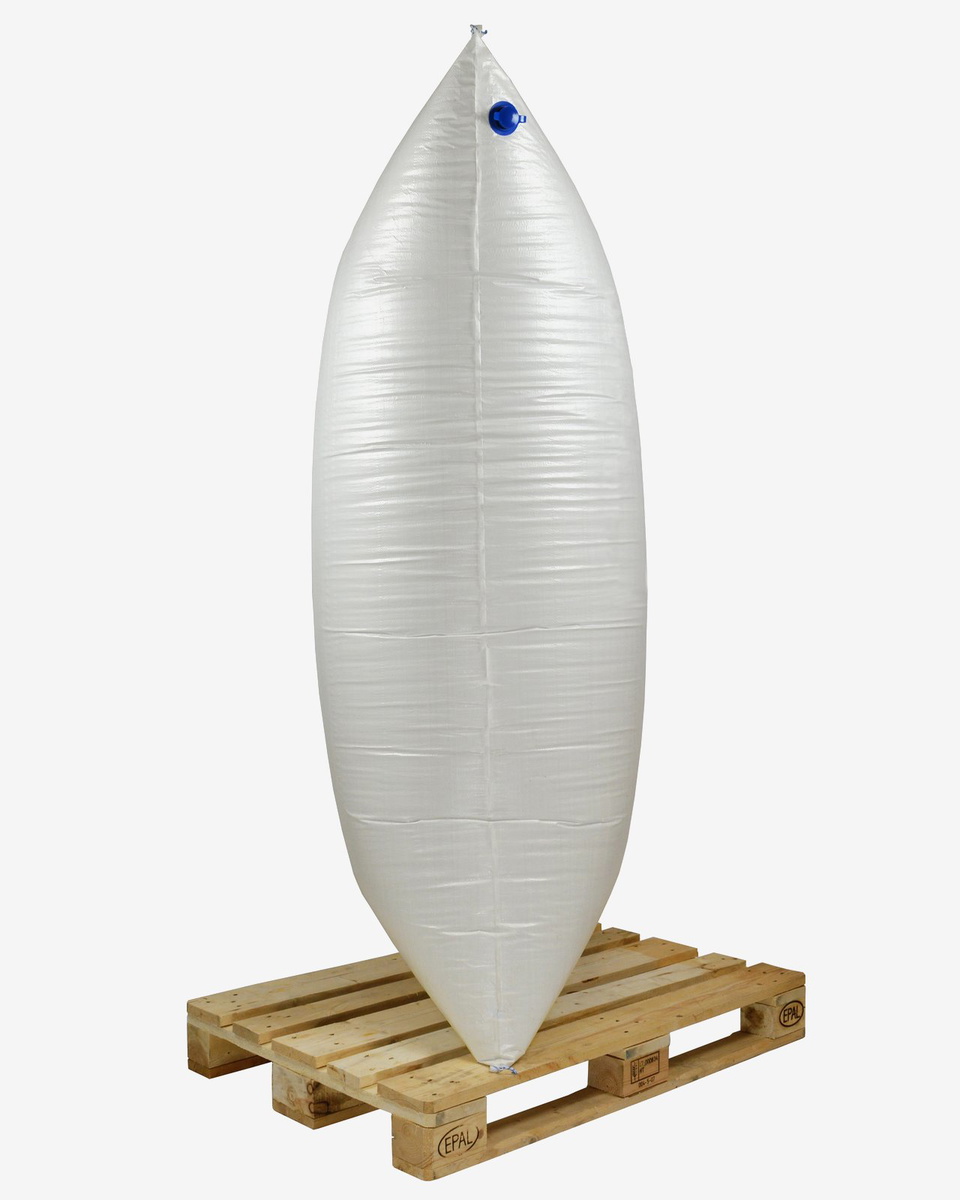

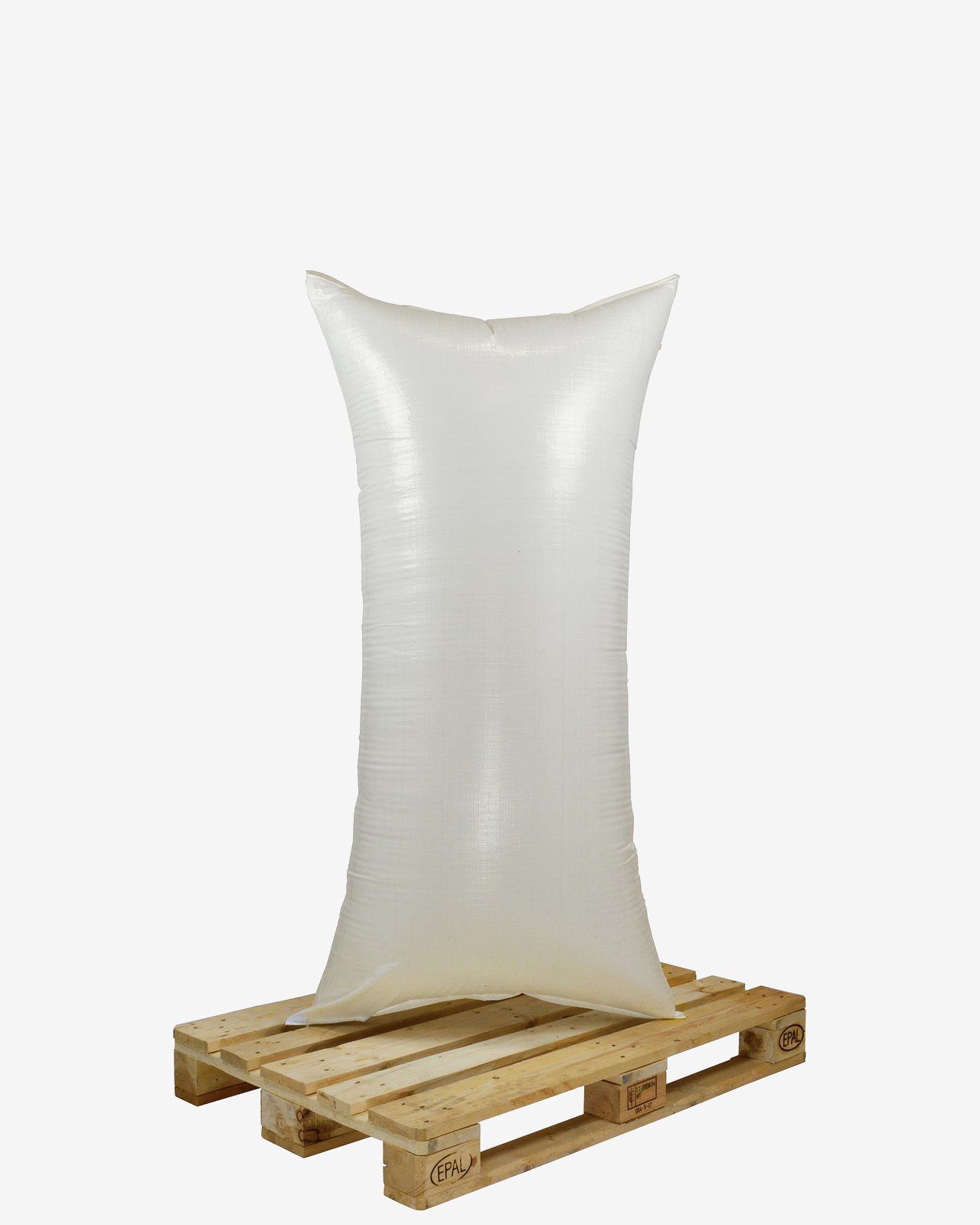

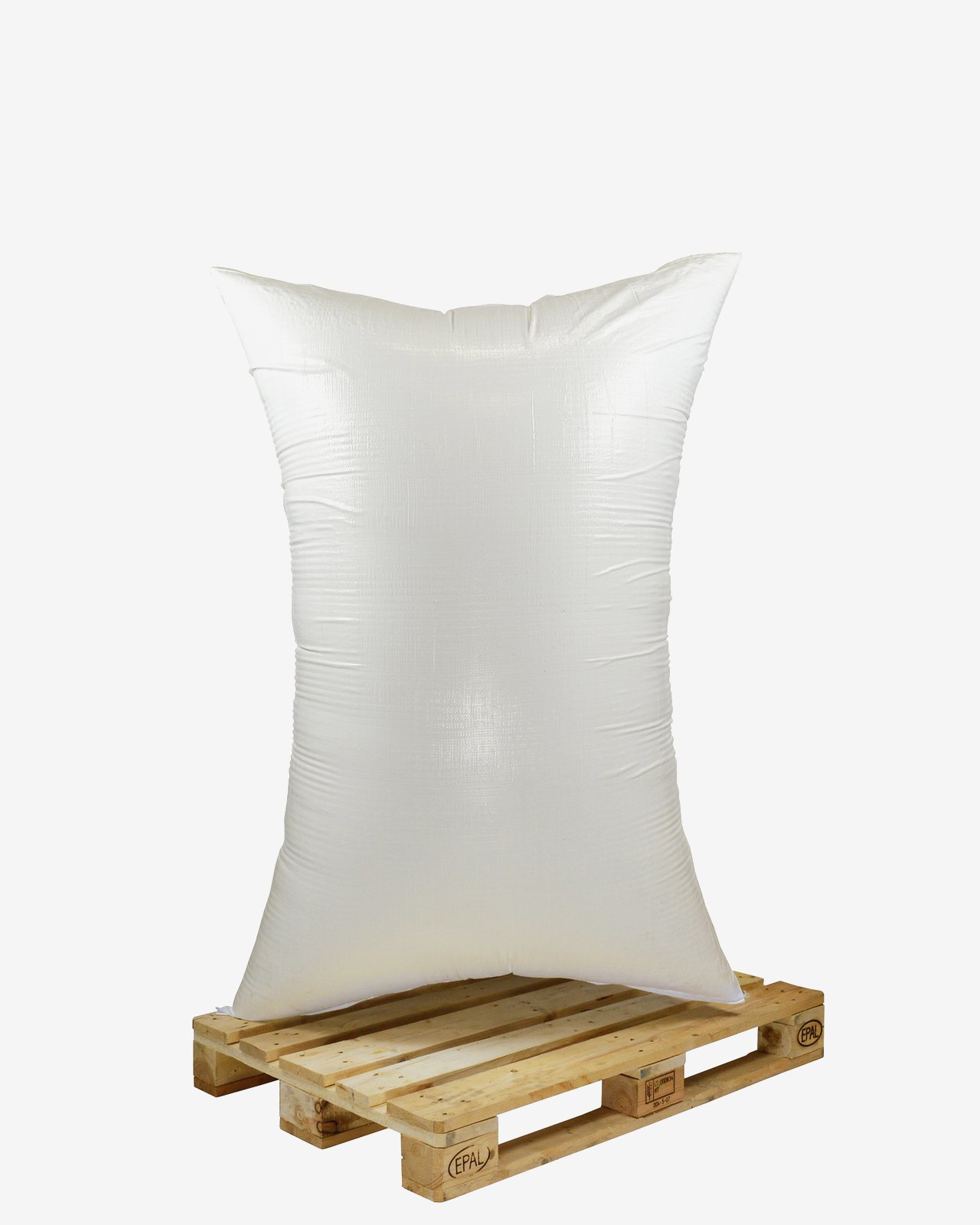

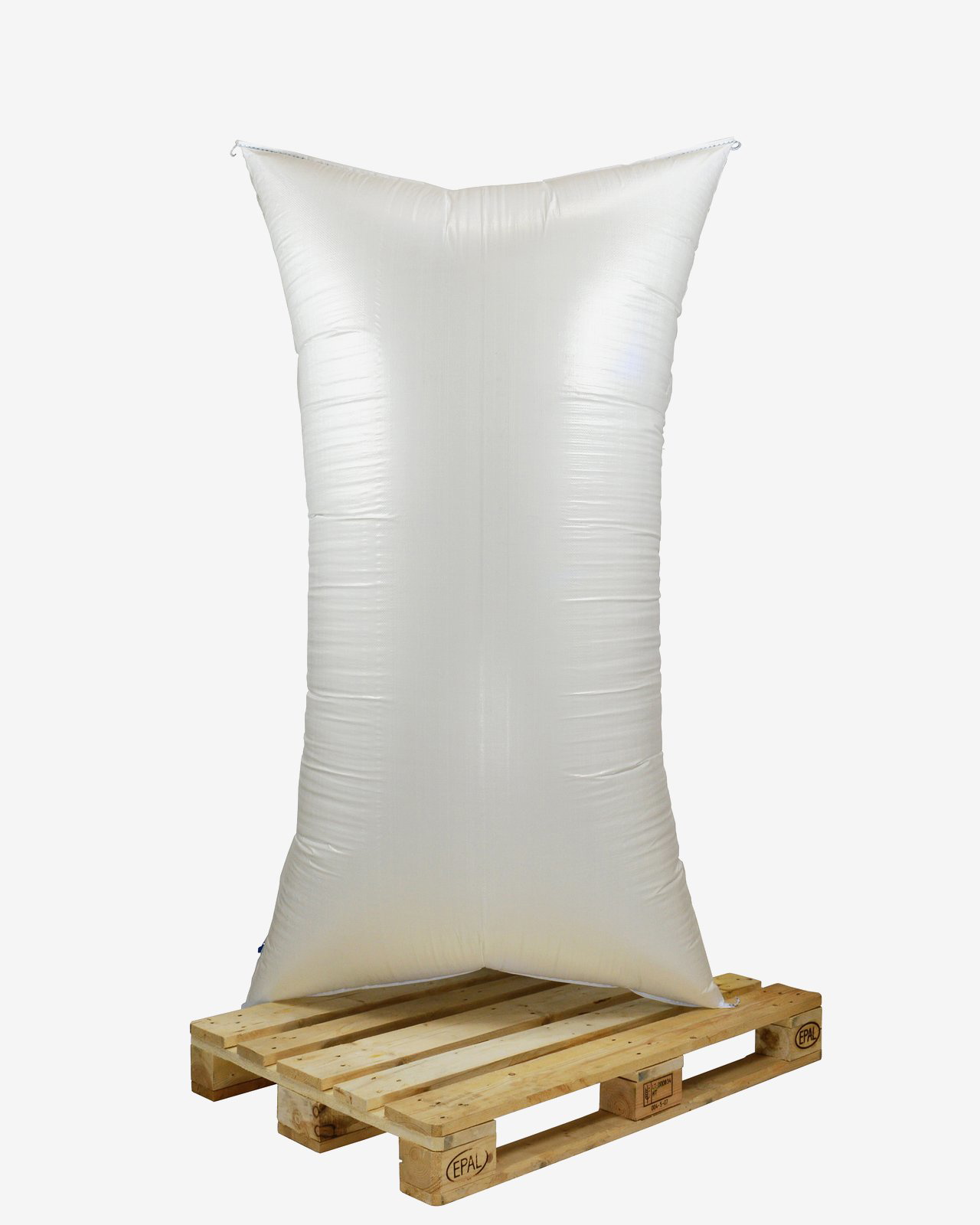

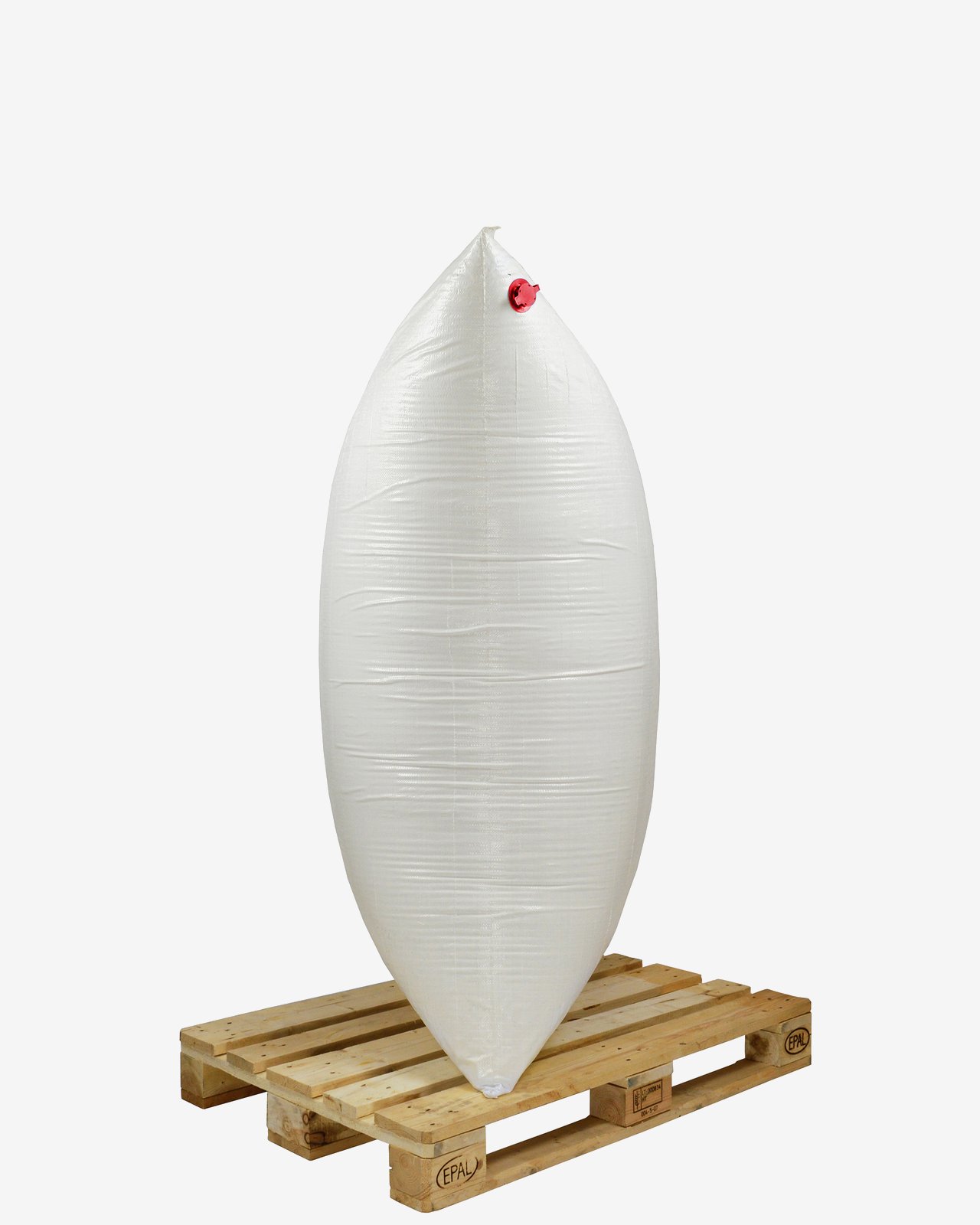

The width of the dunnage bag determines how large a gap it can fill. A 90 cm wide bag fills gaps up to 35 cm, a 120 cm wide bag gaps up to 55 cm. The length follows the height of the load: 120 cm for low pallets, 180 or 210 cm for tall or stacked pallets.

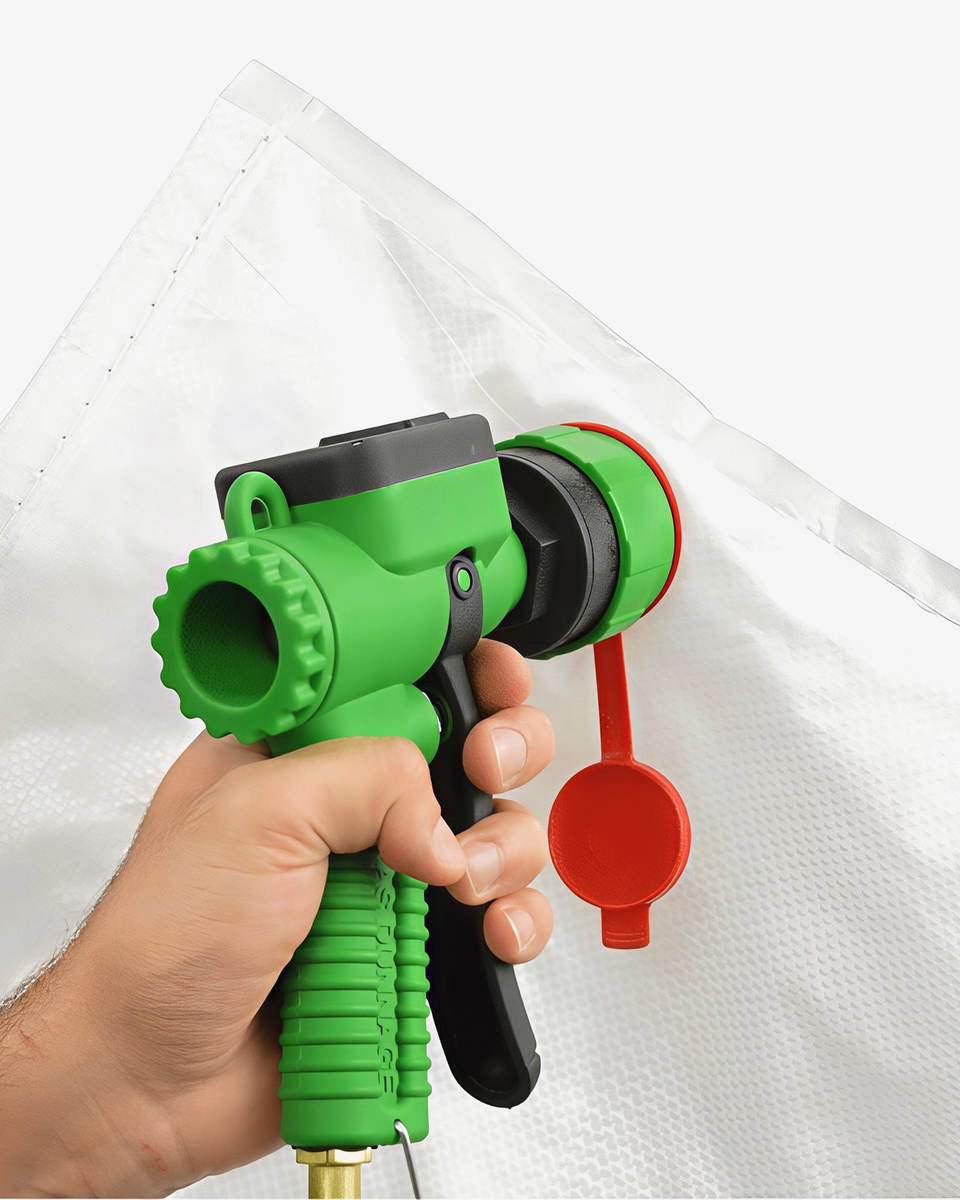

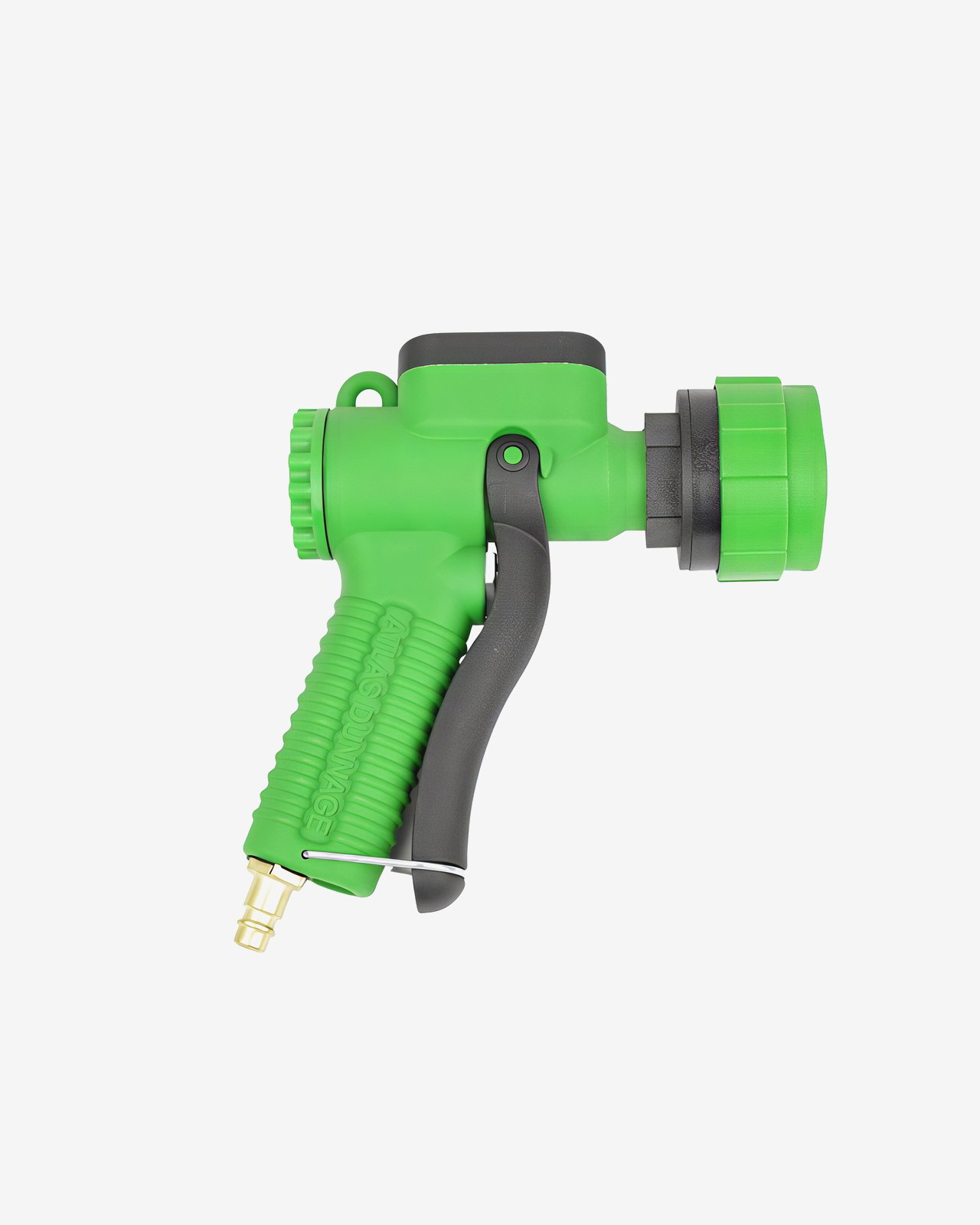

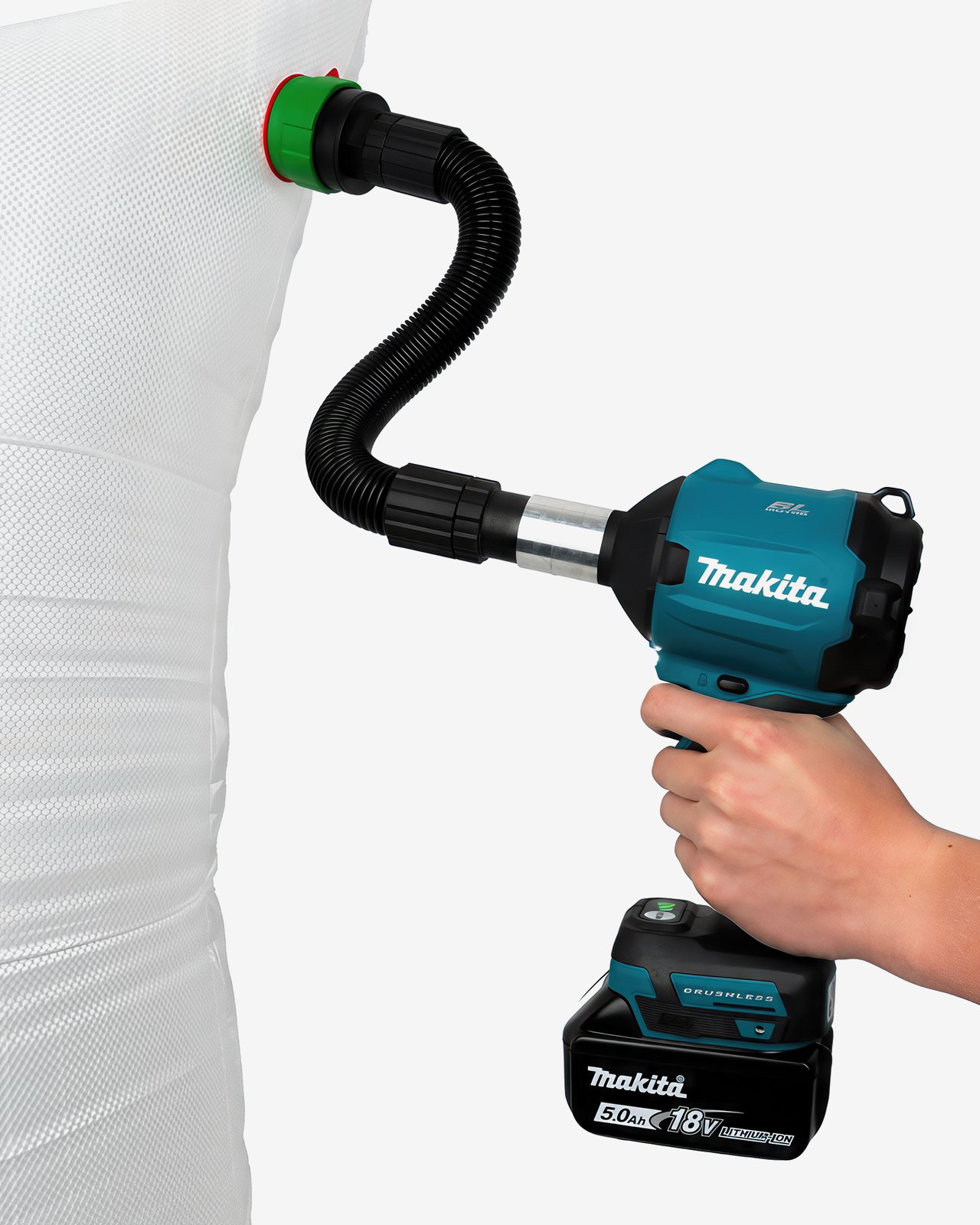

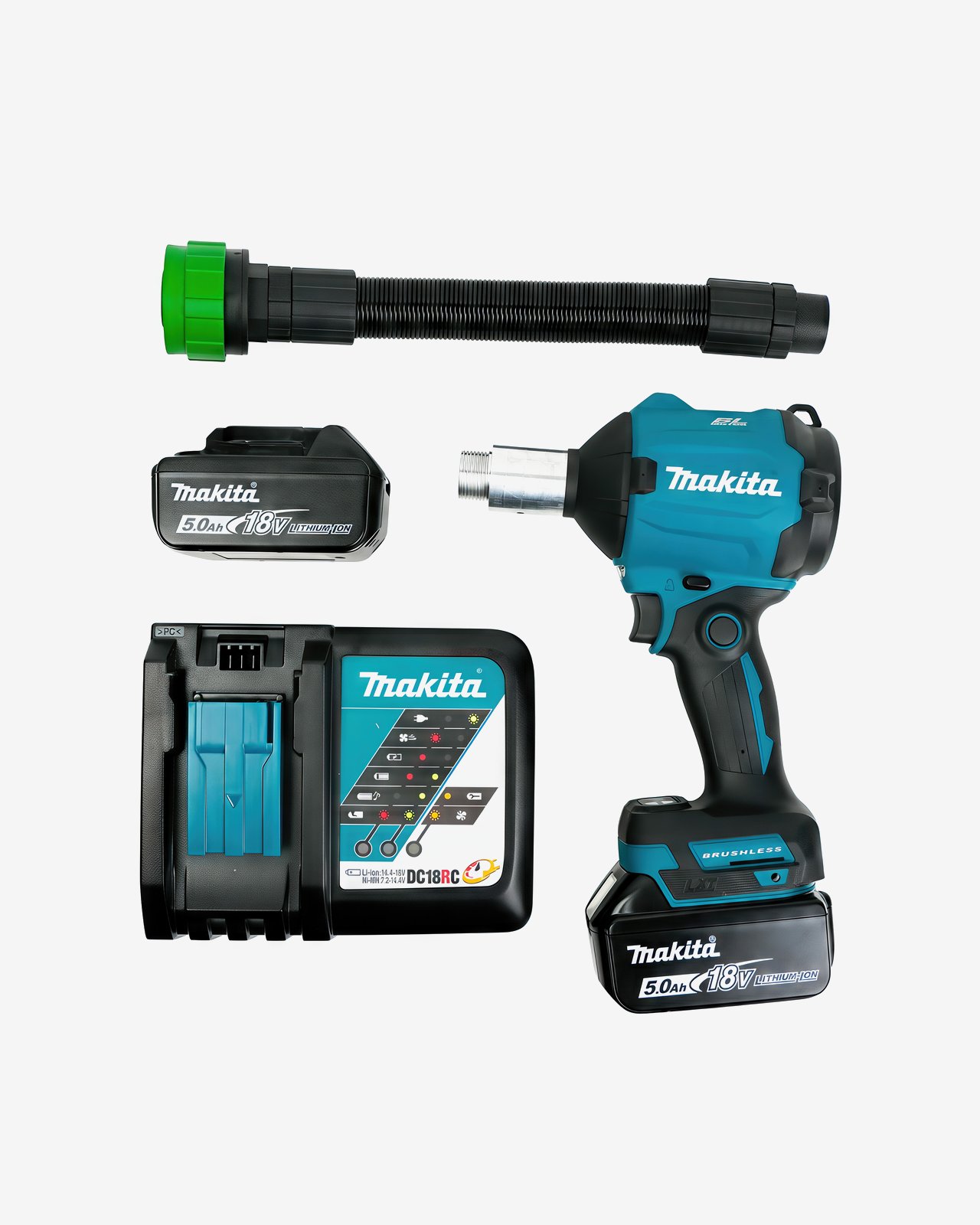

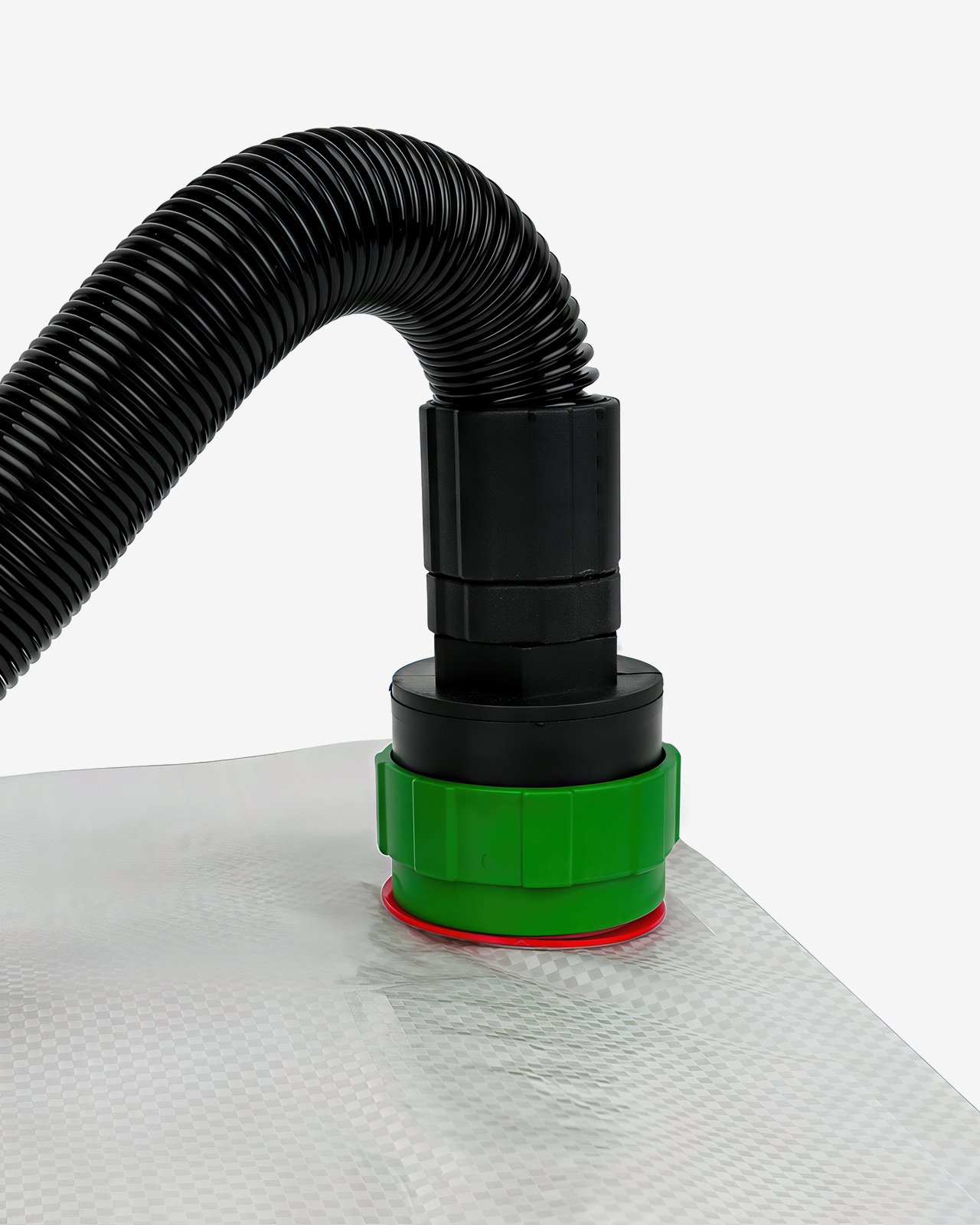

There are two ways to inflate. At a fixed loading site with a compressor, the Cargo Air Gun fills each bag to the right pressure and releases excess air by itself. At changing locations without mains power or compressed air, the Portable Air Master does the job and also deflates the bags afterwards.

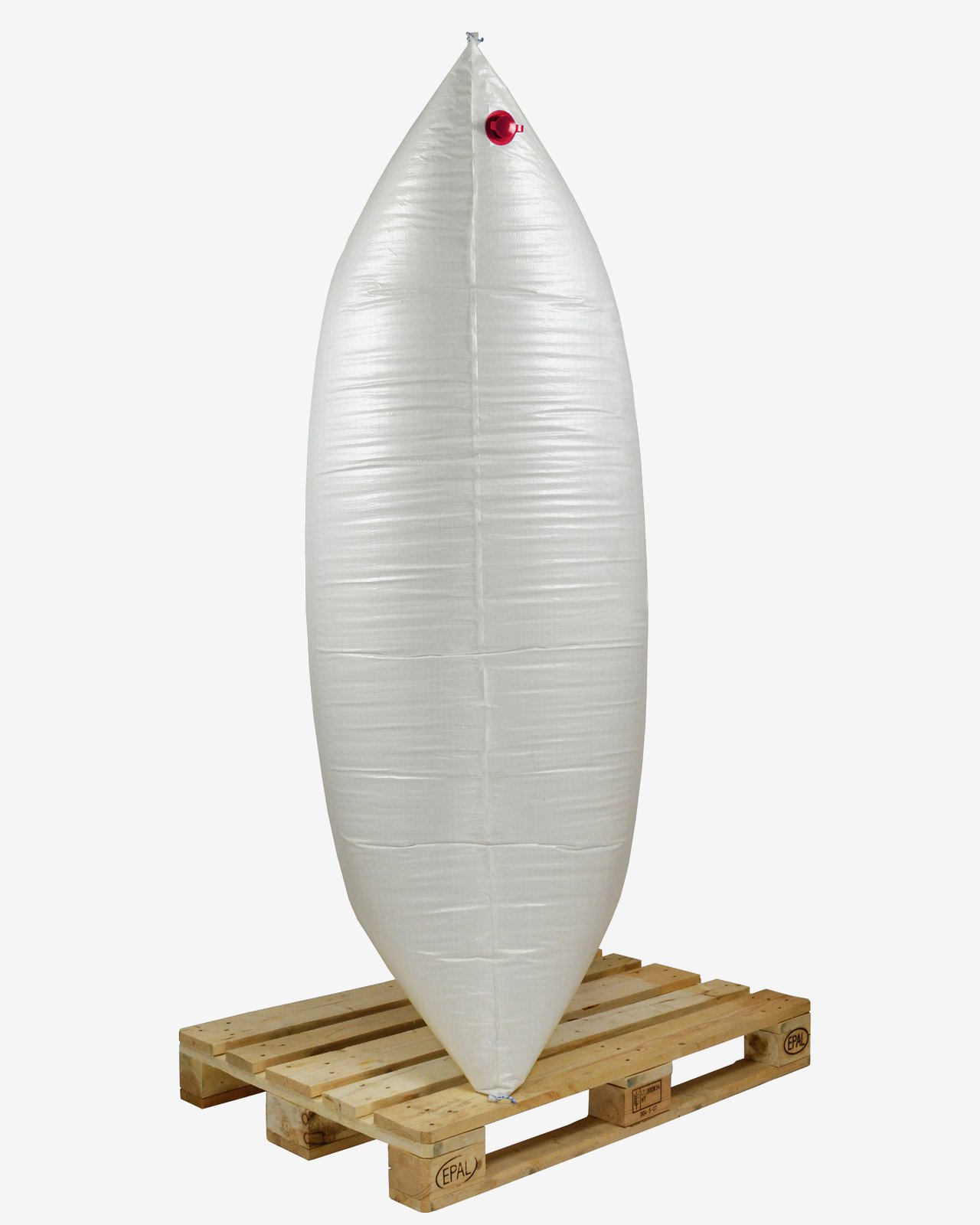

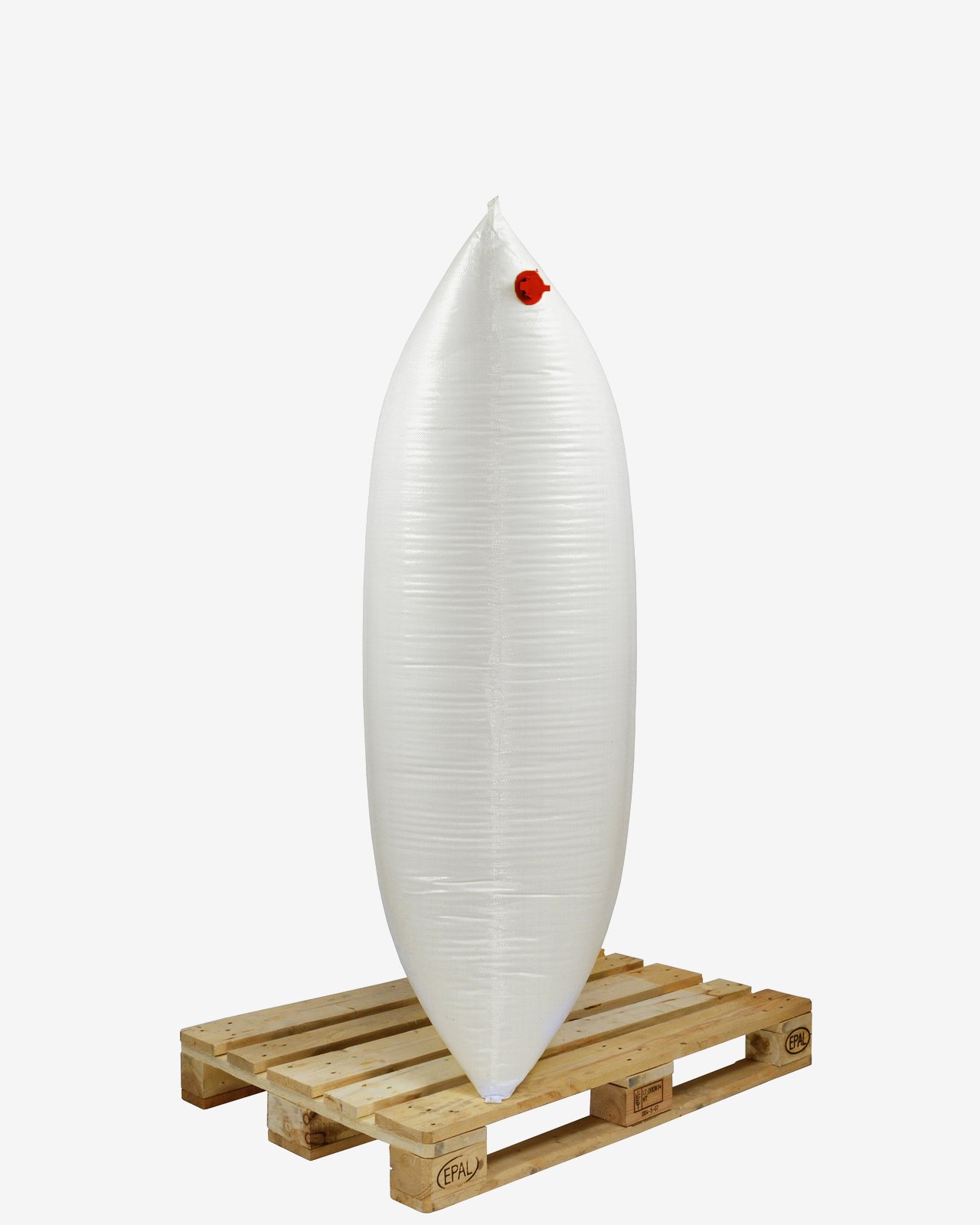

The CargoSecure is designed for road transport and containers, and can be ordered from 10 pieces. The CargoPlus has a heavier construction and is on the list of dunnage bags approved by the Association of American Railroads (AAR). This makes it suitable for rail transport in the United States and Canada, where the AAR requires approved dunnage bags.
A dunnage bag and an air cushion are the same product, also known as an air bag or inflatable dunnage bag. It is an inflatable bag that fills empty space between cargo. Navacqs supplies dunnage bags in four sizes, from 90 x 120 cm to 120 x 210 cm, for gaps up to 35 cm or up to 55 cm.
A dunnage bag should hang at least 10 cm above the floor. This keeps it clear of sharp edges on the floor or pallets, so it lasts longer. The bag should also rest against a flat part of the load, so the pressure is spread evenly across the pallets.
No, a dunnage bag belongs between the cargo and not directly against the container doors. When the doors are opened, the pressure of the bag can push the load outwards. At the doors, a different form of load securing is needed, such as lashing straps or a load bar.
