Name: Universal Seal
SKU: 01-05-2401-06
Price: 151.25 EUR
Availability: InStock

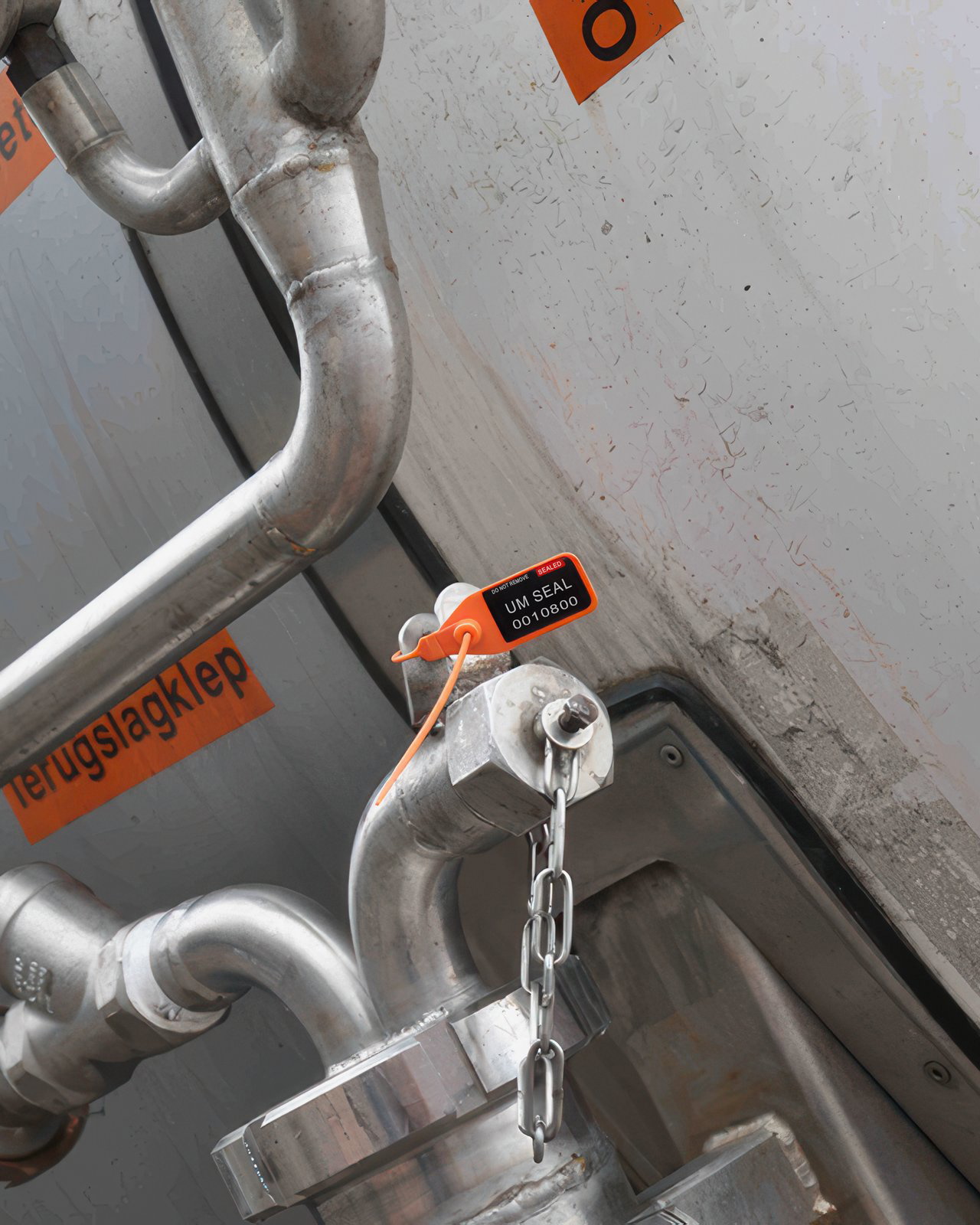

Sealing a tanker truck with Universal Seal (Medium)

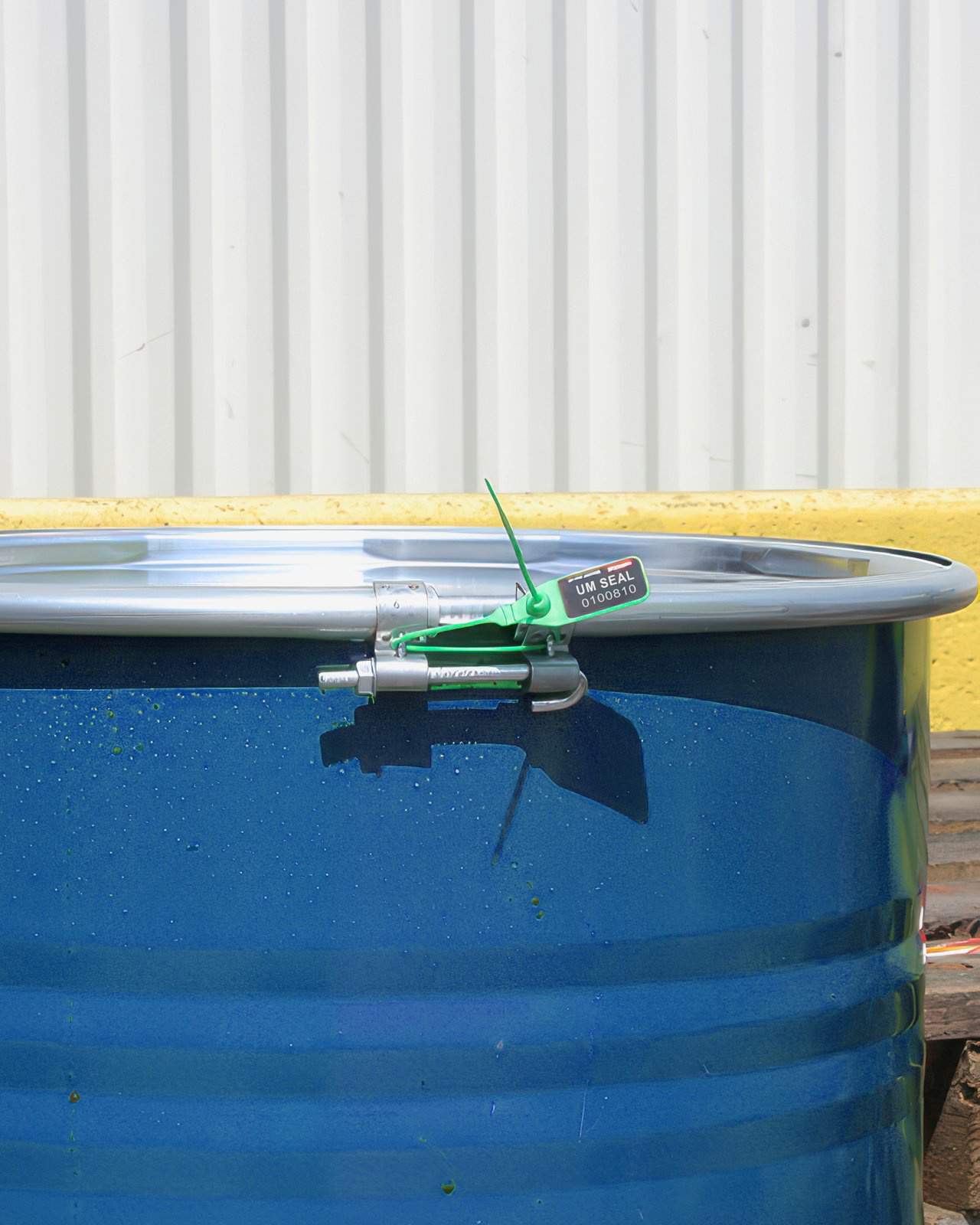

Sealing a drum (drums) with a Universal Seal (Medium) seal

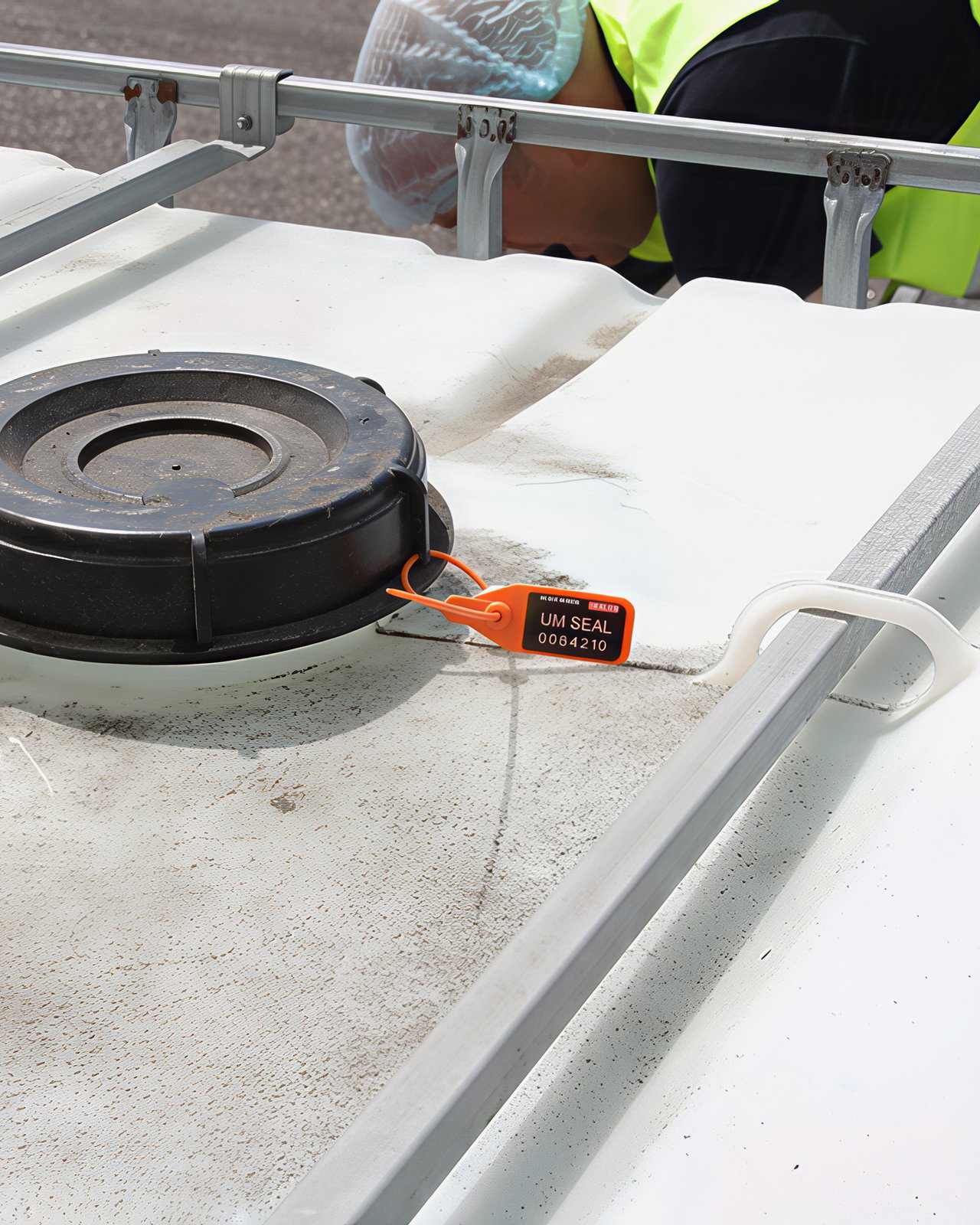

IBC container seal - Universal Seal (Medium)

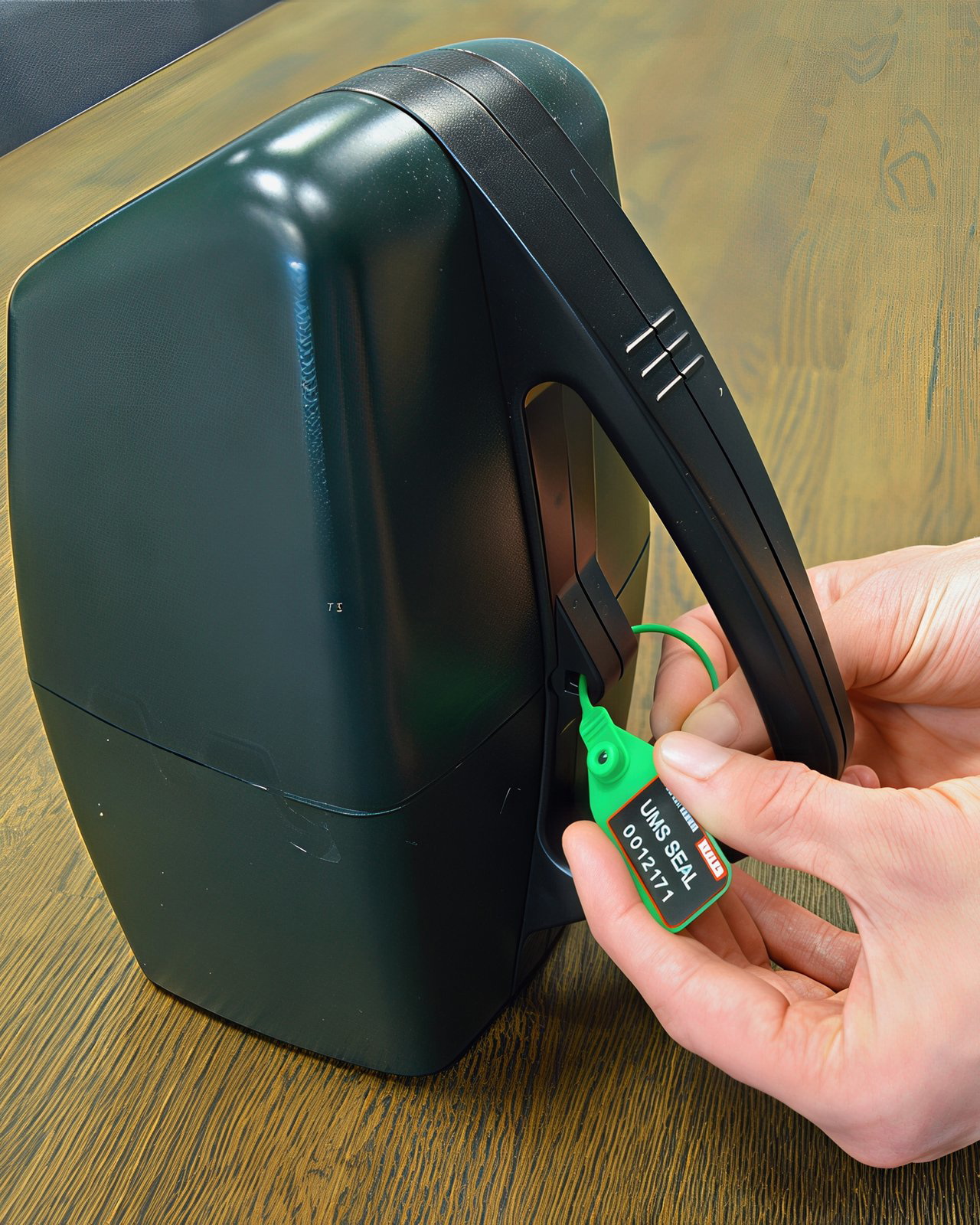

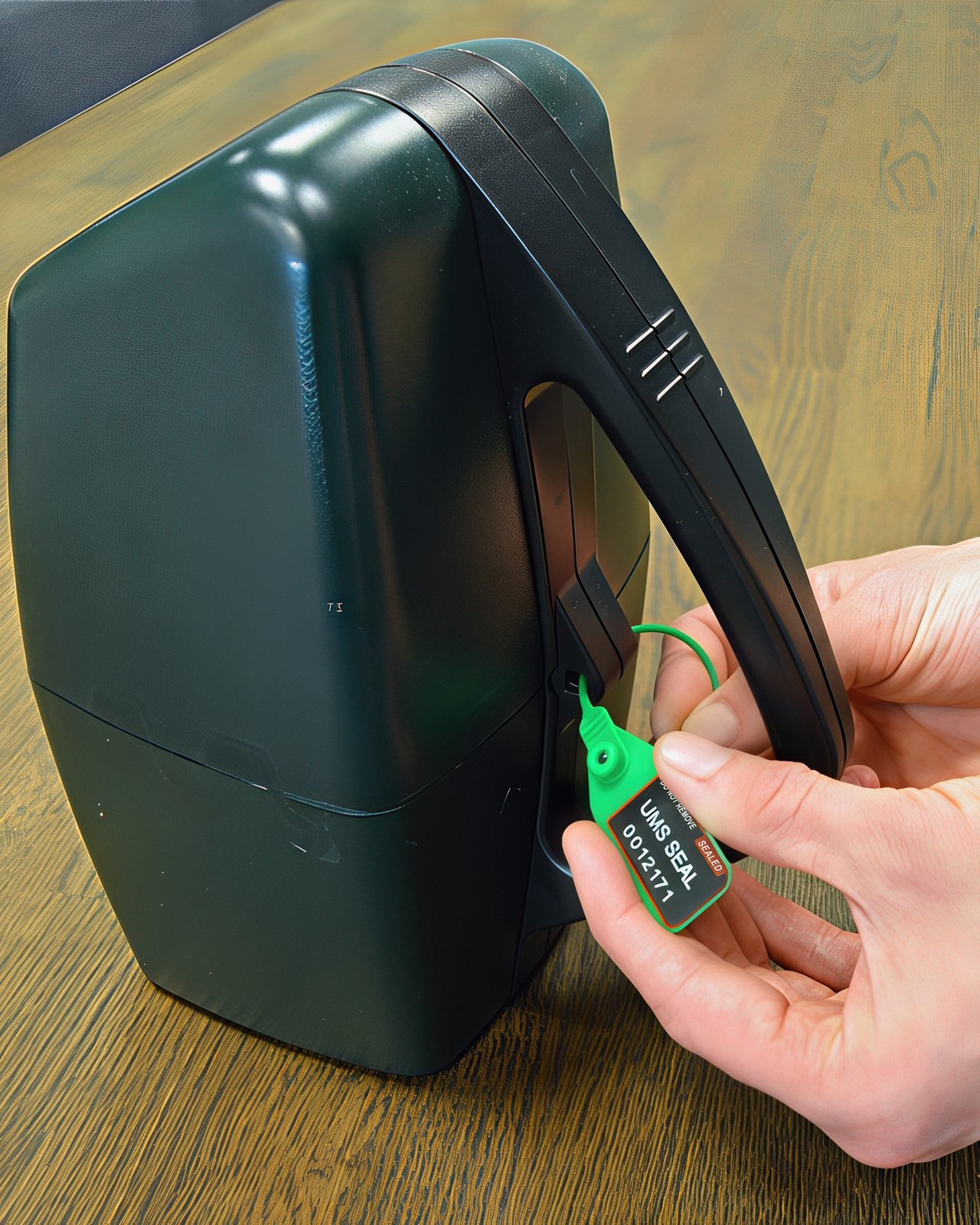

Collection box seal - Universal Seal (Small)

Specifications

Property	Red · 28,5 cm	Blue · 28,5 cm	Yellow · 28,5 cm	Orange · 28,5 cm	Green · 20,5 cm	Green · 28,5 cm	Green · 38,5 cm	White · 28,5 cm
Article number	01-05-2402-01	01-05-2402-02	01-05-2402-03	01-05-2402-05	01-05-2401-06	01-05-2402-06	01-05-2403-06	01-05-2402-04
Breaking strength	15 kg	15 kg	15 kg	15 kg	15 kg	15 kg	15 kg	15 kg
Colour	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White	Red, Blue, Yellow, Orange, Green, White
Diameter	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm	2,3 mm
Length	28,5 cm	28,5 cm	28,5 cm	28,5 cm	20,5 cm	28,5 cm	38,5 cm	28,5 cm
Material	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene
Numbering	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending	Unique and ascending
Printing	UM SEAL	UM SEAL	UM SEAL	UM SEAL	UMS SEAL	UM SEAL	UML SEAL	UM SEAL
Size	28,5 cm	28,5 cm	28,5 cm	28,5 cm	20,5 cm	28,5 cm	38,5 cm	28,5 cm
Usable length	20 cm	20 cm	20 cm	20 cm	12 cm	20 cm	30 cm	20 cm
Industry	Agri Business, Charity, Delivery, Transport & Logistics	Agri Business, Charity, Delivery, Transport & Logistics	Agri Business, Charity, Delivery, Transport & Logistics	Agri Business, Charity, Delivery, Transport & Logistics	Agri Business, Charity, Delivery, Transport & Logistics	Agri Business, Charity, Delivery, Transport & Logistics	Agri Business, Charity, Delivery, Transport & Logistics	Agri Business, Charity, Delivery, Transport & Logistics
Application	Barrels, Collection tins, Doors, IBC containers, Tank trucks, TIR cable, Trees and shrubs	Barrels, Collection tins, Doors, IBC containers, Tank trucks, TIR cable, Trees and shrubs	Barrels, Collection tins, Doors, IBC containers, Tank trucks, TIR cable, Trees and shrubs	Barrels, Collection tins, Doors, IBC containers, Tank trucks, TIR cable, Trees and shrubs	Barrels, Collection tins, Doors, IBC containers, Tank trucks, TIR cable, Trees and shrubs	Barrels, Collection tins, Doors, IBC containers, Tank trucks, TIR cable, Trees and shrubs	Barrels, Collection tins, Doors, IBC containers, Tank trucks, TIR cable, Trees and shrubs	Barrels, Collection tins, Doors, IBC containers, Tank trucks, TIR cable, Trees and shrubs

Description

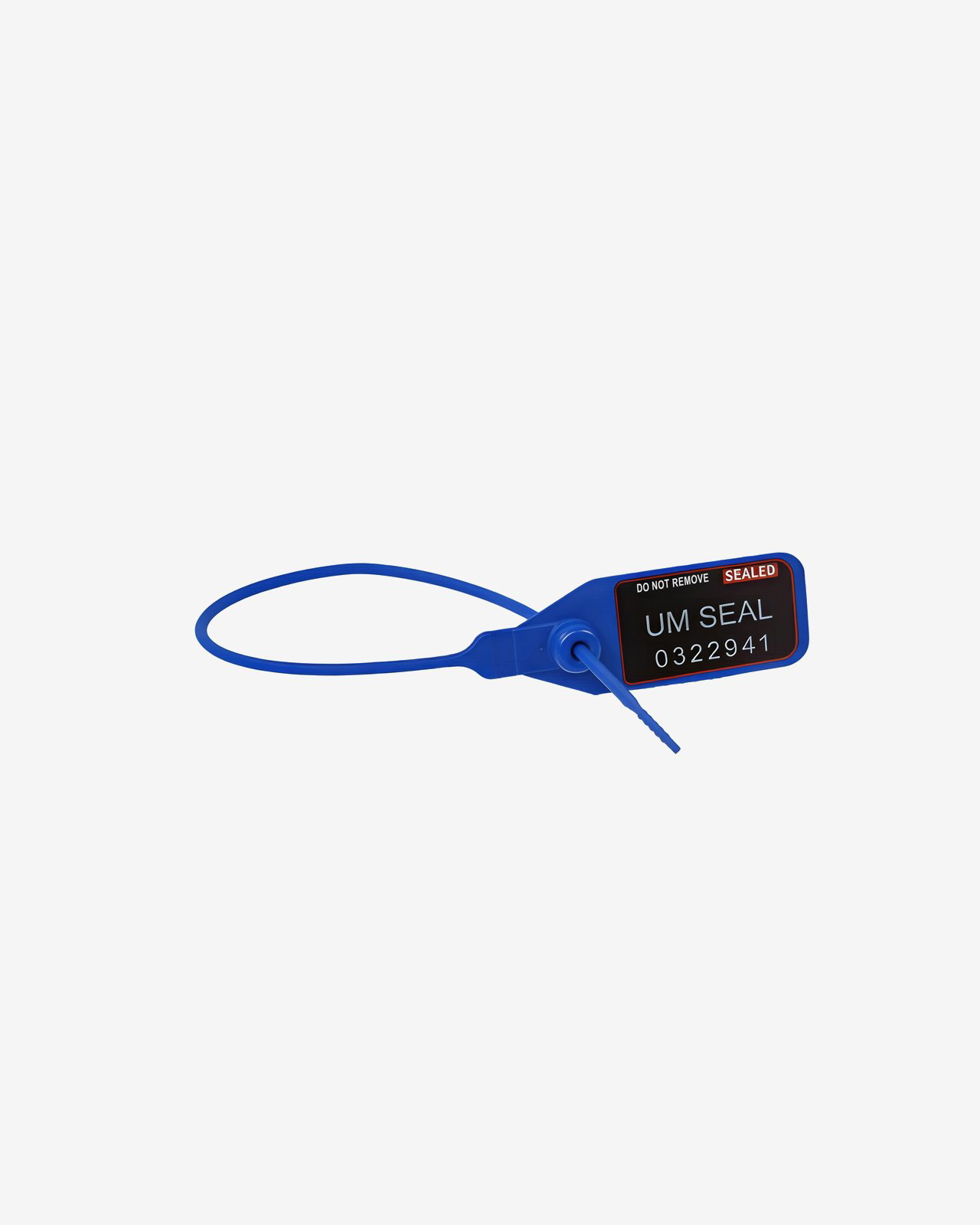

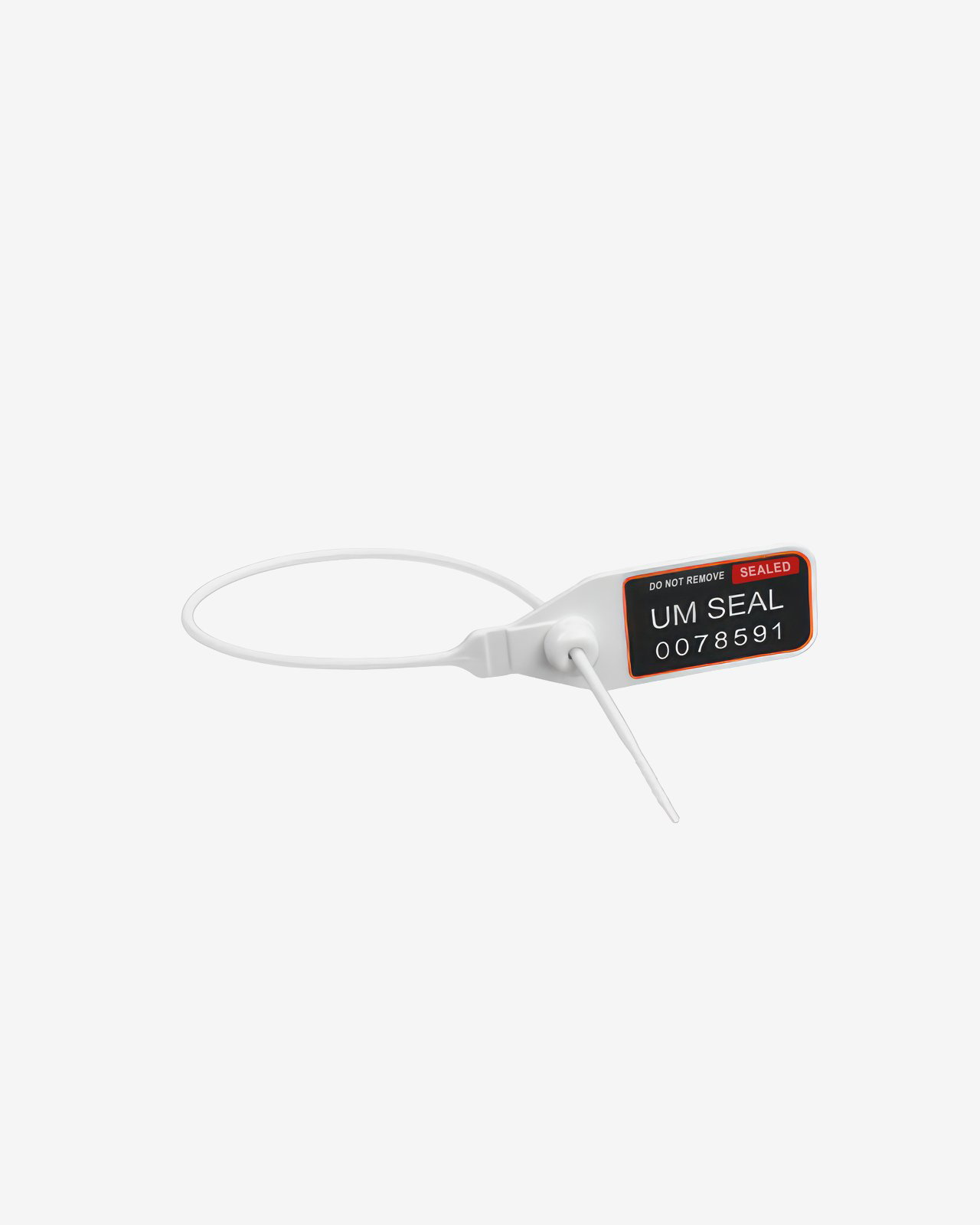

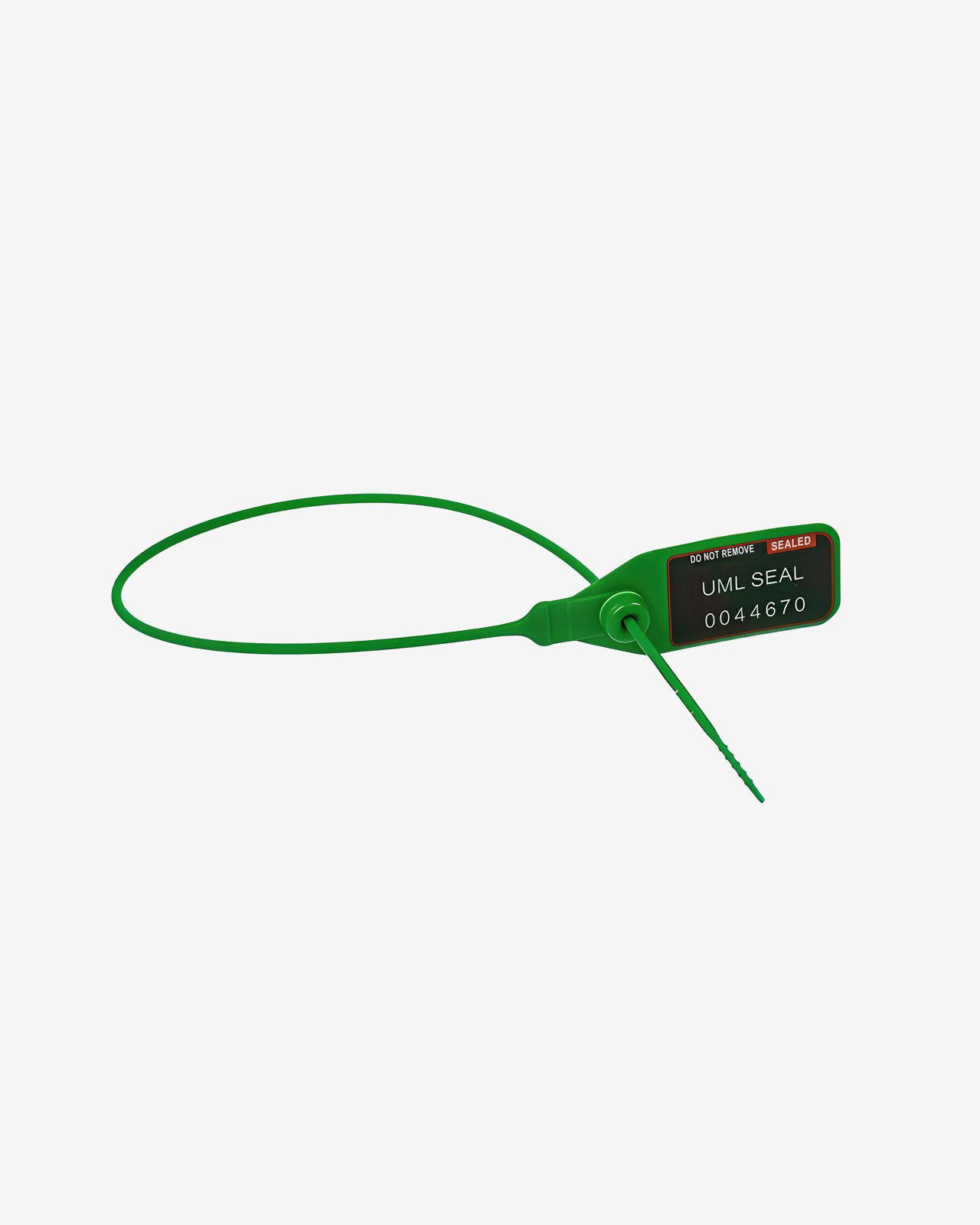

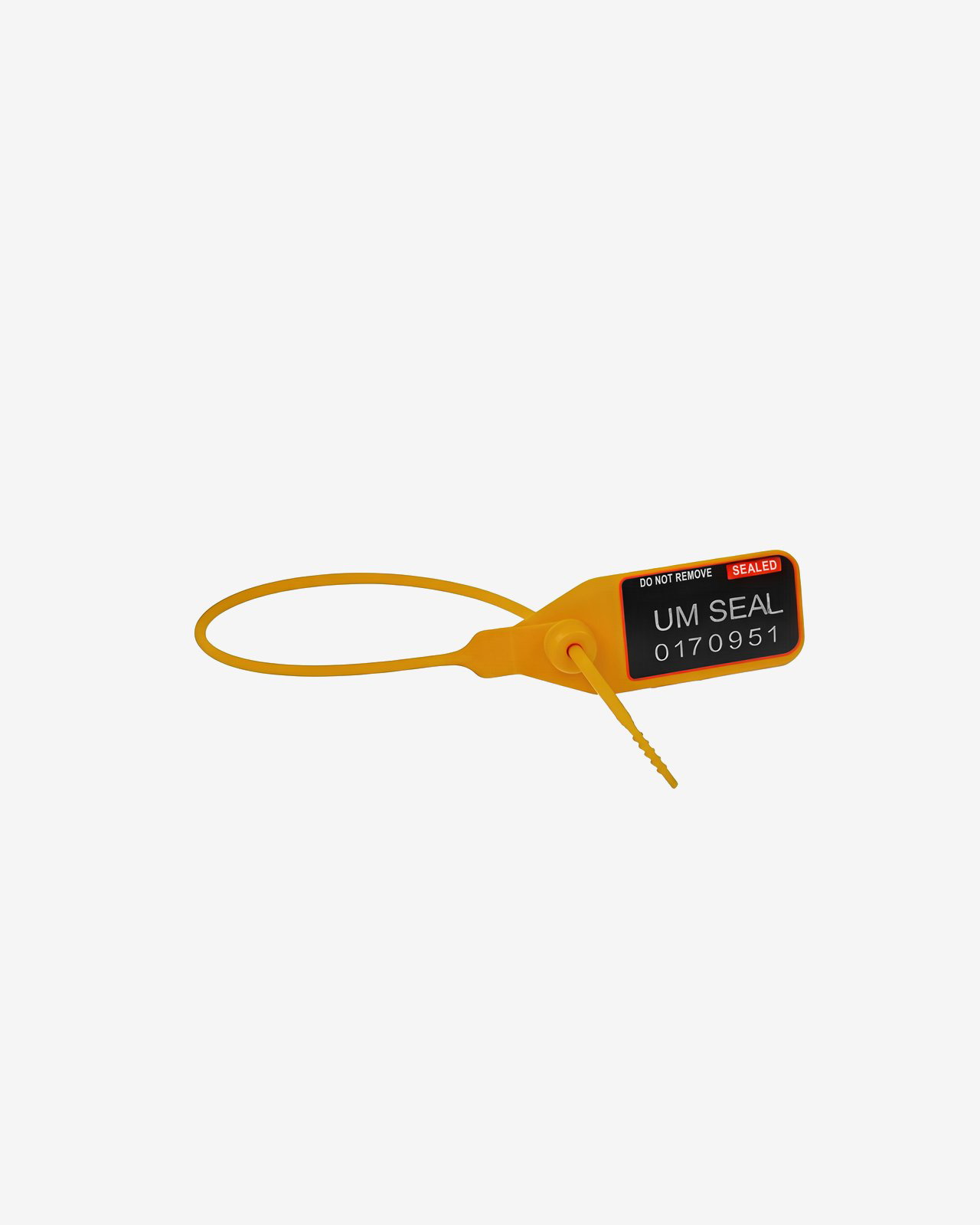

The Universal Seal is a versatile plastic security seal featuring a smooth tail with a thickness of only 2.3 mm. Thanks to its slim design, the seal is easy to apply, even in tight openings. It is available in three lengths: Small (20.5 cm), Medium (28 cm), and Large (39 cm). The Universal Seal is ideal for applications requiring flexibility, strength, and clear readability, such as sealing tankers, IBC containers, and collection boxes.

Smooth Tail and Stainless Steel Locking Mechanism

The smooth tail design allows the Universal Seal to pass easily through narrow openings without snagging. Small ridges at the end provide extra grip when tightening. The locking mechanism features a stainless steel ring with hook-shaped teeth that permit movement in only one direction, making reopening impossible without breaking the seal. Reuse is prevented, ensuring maximum reliability.

Strong and Flexible Polypropylene (PP) Construction

The Universal Seal is made of high-quality Polypropylene (PP), a material known for its combination of strength and flexibility. PP is resistant to most chemicals and performs well in temperatures ranging from -40°C to +80°C. This makes the seal suitable for use in demanding environments, including the chemical and food industries.

Average Breaking Strength of 15 kg

With a breaking strength of 15 kg, the Universal Seal provides robust security while remaining possible to break manually with some force. The combination of a stainless steel lock and smooth plastic tail makes it an indicative seal that offers the perfect balance between security and usability.

Available in Three Lengths

To ensure a suitable size for every use, the Universal Seal is available in three variants:

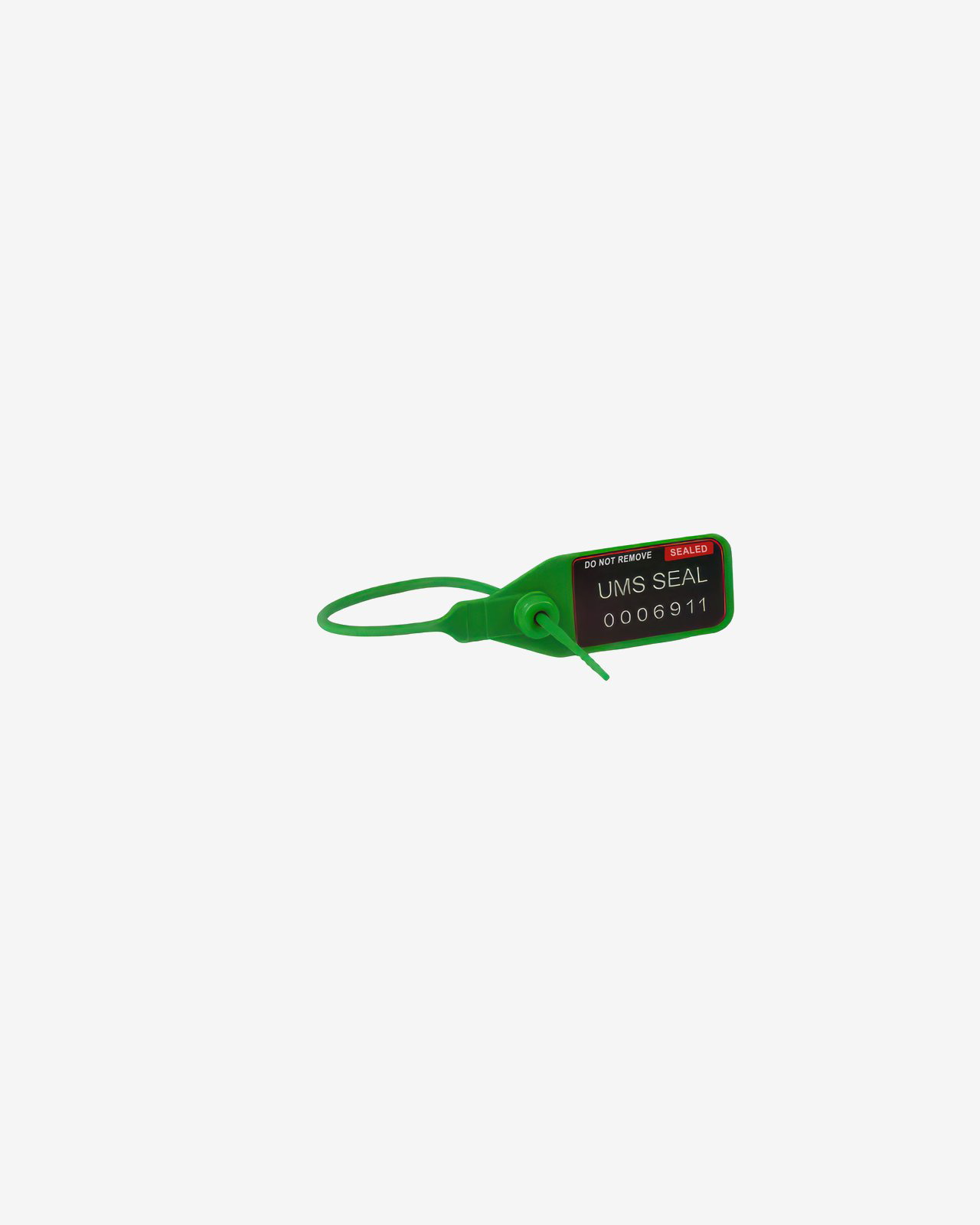

Small: 20.5 cm (usable length 12 cm)

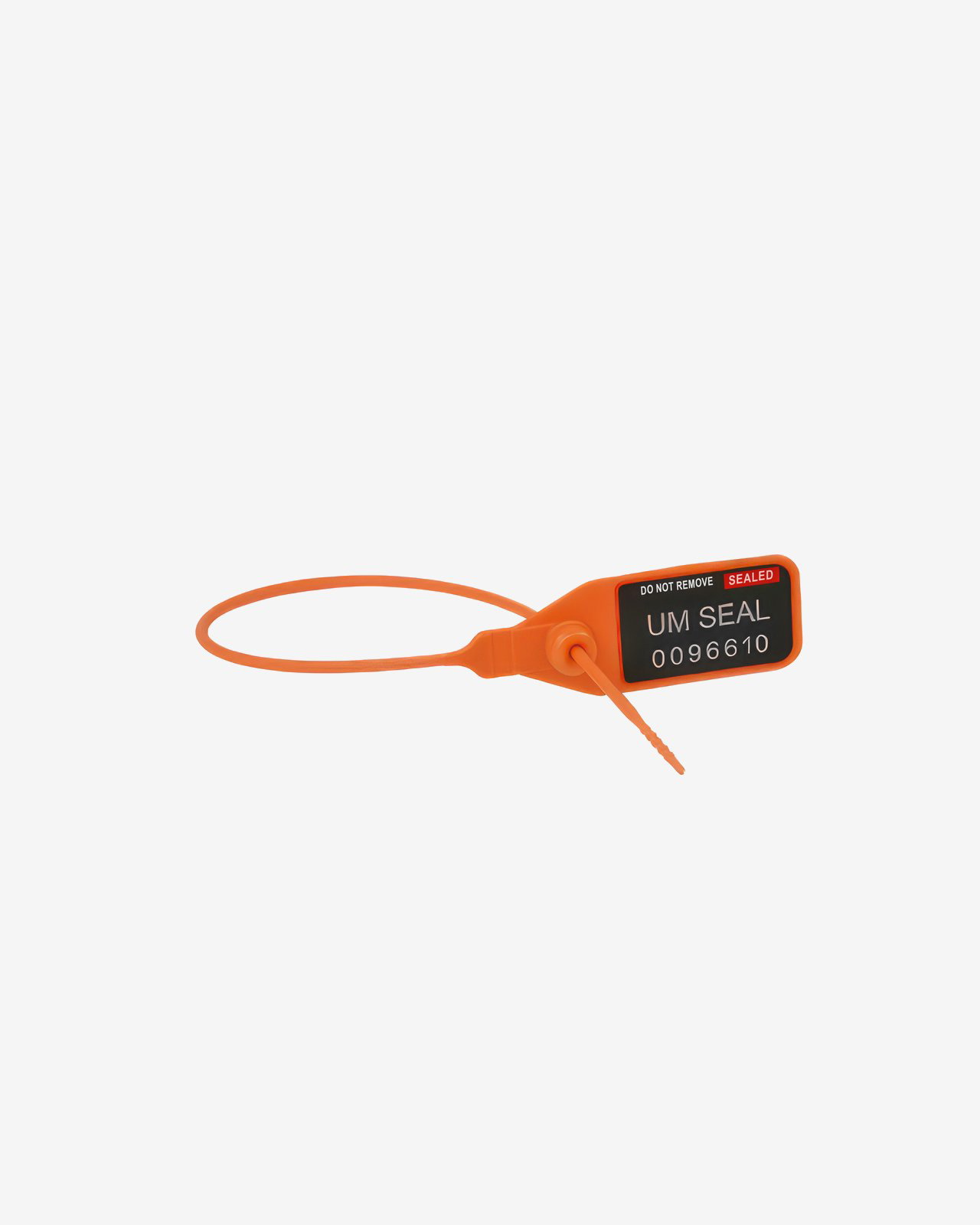

Medium: 28 cm (usable length 20 cm)
Large: 39 cm (usable length 30 cm)

The shorter version is ideal for collection boxes or smaller openings, while the longer versions are suitable for larger closures such as those on containers or tankers.

Highly Legible Marking and Customization

Each Universal Seal is laser-printed in white on a black background for optimal readability. Every seal includes a unique, sequential serial number produced only once to prevent reuse or fraud. Standard versions are available from stock with markings “UMS”, “UM”, or “UML”. Customization with a company logo, name, or specific color is available upon request.

Your Own Text or Logo?

Product Name

Universal Seal

Seal Color

Red, Blue, White, Yellow, Orange, Green. Additionally, any desired color or shade can be supplied at an extra cost.

Print Color: White
Text Printing Available: Yes
Logo Available: Yes
Unique Numbering Available: Yes
Barcode Available: Yes
Minimum Order Quantity: 1,000 pieces
Estimated Lead Time: Approximately 4–6 weeks

Please contact us for the current lead time.

Proven in practice

Free samples

Request free samples of this product and experience the quality for yourself.

Frequently asked questions

A Universal Seal is a plastic pull-tight seal with a breaking strength of 15 kg and a smooth seal tail of 2.3 mm. Thanks to this smooth tail, the seal can easily be inserted through small or narrow openings without catching.

The seal has a closure with a stainless steel ring with barbs that clamp the tail. This means the seal can only move in one direction and can't be opened without breaking it. The seal is made of polypropylene (PP) and is resistant to temperatures from -40 to +80°C.

Applications:

tanker trucks
IBC containers
collection boxes

A Universal Seal is used for applications where a seal needs to pass easily through an opening without catching. The smooth tail makes the difference on closures with limited space or sharp edges.

For example, on an IBC container. The opening of the closure is often narrow. Thanks to the smooth tail, the seal slides straight through without resistance.

Typical applications:

tanker trucks
IBCs
collection boxes

A Universal Seal has a breaking strength of 15 kg. This means the seal doesn't come loose easily during use, but can be broken by hand with enough force.

The thin 2.3 mm seal tail lets the seal pass easily through openings, while the stainless steel locking mechanism prevents it from coming loose.

Comparison:

light seal: around 6 to 7 kg
Universal Seal: 15 kg
heavy-duty seal: 22 kg or higher

You choose a Universal Seal when the seal needs to pass easily through small openings without getting stuck. The smooth tail lets you apply the seal quickly, even on hard-to-reach closures.

The seal is suitable when a standard ridged pull-tight seal is difficult to pass through an opening or gets stuck.

Typical situations:

narrow openings in closures
seals with limited space
applications where speed matters

A Universal Seal fits well through small openings thanks to its 2.3 mm diameter and smooth seal tail. Unlike ridged seals, it doesn't catch during application.

This makes the difference in applications with limited space, or where the seal needs to be guided through a narrow slot or opening.
