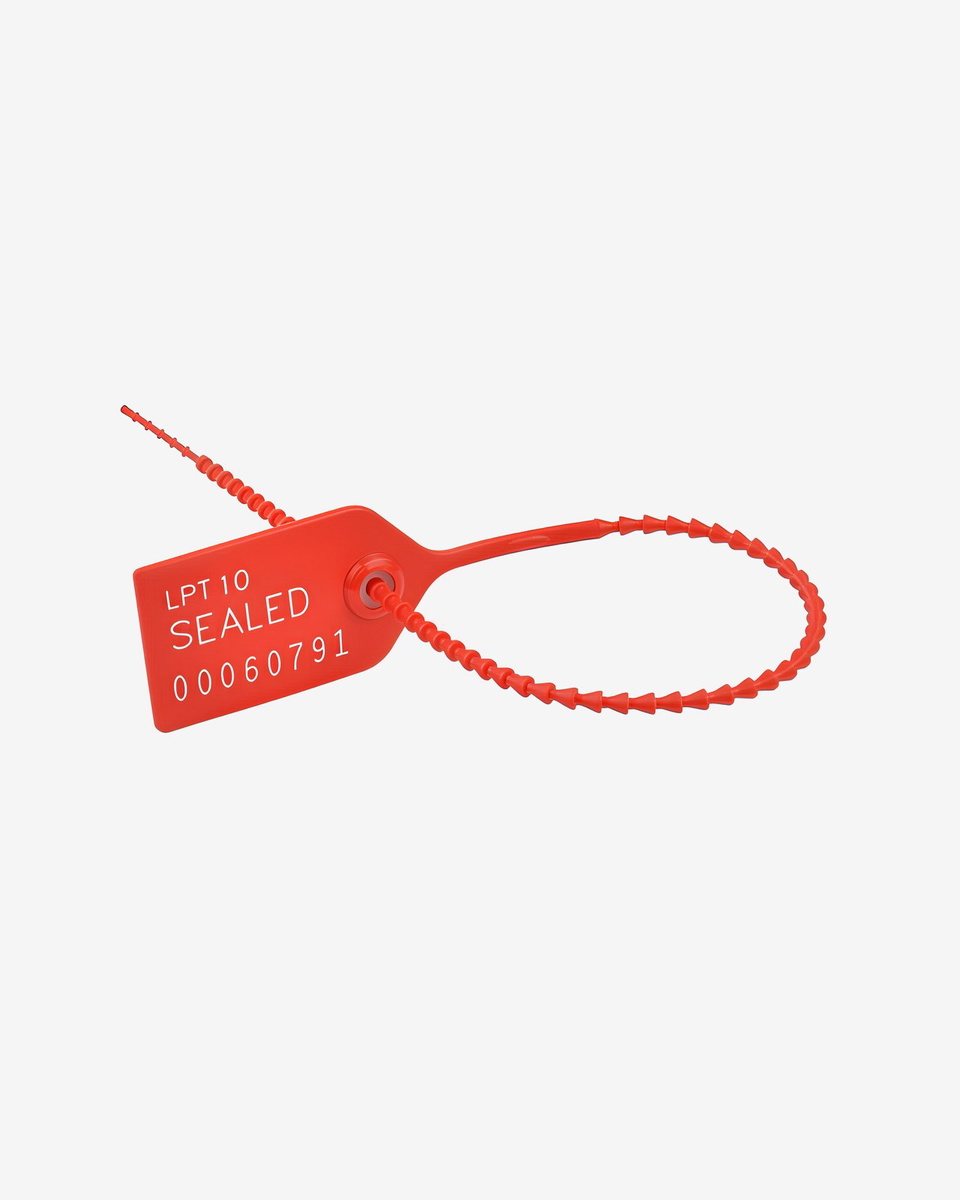

Light Duty Pull Tight Seal (LPT)

The Light Duty Pull Tight Seal is a flexible plastic seal with a breaking strength of 7 kg. This means it can be broken by hand, without tools. That makes the LPT suitable for equipment that must be accessible immediately in an emergency, such as AEDs, first aid kits and medical equipment.

Low breaking strength for emergency use

The LPT is an indicative seal. It does not form a physical barrier, but shows whether something has been opened. In an emergency, a short, firm pull is enough to remove it. A broken or replaced seal stands out straight away on inspection.

Thin tail and flexible design

The LPT has a total length of 10 inches (approx. 25 cm). The tail has a diameter of 2.5 mm, thinner than that of the Medium Duty Pull Tight Seal (2.8 mm). The thin tail bends easily and fits through small openings, such as the closure of a case or cabinet.

Delrin® insert

The locking mechanism has a Delrin® insert, a brand name for acetal (POM). This strong, wear resistant plastic replaces the metal clip found in many other seals. As the LPT contains no metal, it is also suitable for food processing and the medical sector.

HDPE plastic

The LPT is made of High Density Polyethylene (HDPE). This material is rigid, strong and resistant to most chemicals. The seal remains usable and flexible at temperatures from -40 °C to +80 °C.

Applications

Besides AEDs and first aid kits, the LPT seals safety cabinets, fire extinguisher cabinets and hygienically sealed supplies. It fits wherever a seal needs to show that something is untouched, while the contents remain accessible in one movement.

Unique print

Every LPT carries the standard print “LPT 10 SEALED” and a unique sequential number. Each combination is produced only once, so a replaced seal stands out as soon as the number is checked.

Own text or logo?

The Light Duty Pull Tight Seal (LPT) can be personalised with custom printing, such as a logo or company name. The options are listed below.

• Product name: Light Duty Pull Tight Seal (LPT)

• Seal colour: Red, Blue, White, Yellow, Orange, Green, Black

• Print colour: Black or white (depending on seal colour)

• Text printing available: Yes

• Logo available: Yes

• Unique numbering available: Yes

• Barcode available: Yes

• Minimum order quantity: 1,000 pieces

• Estimated lead time*: approx. 7 to 8 weeks

Please contact Navacqs for the current lead time.
