Mini Seal 140
Easy to break in an emergency situation (only 2 kg breaking strength)
| Property | Value |
|---|---|
| Article number | 01-05-2201-03 |
| Breaking strength | 5 kg |
| Colour | Yellow |
| Diameter | 1,6 mm |
| Length | 12,7 cm |
| Material | Polypropylene |
| Numbering | Unique and ascending |
| Printing | SEALED |
| Usable length | 6,2 cm |
| Industry | Seals in fire protection |
| Application | Fire extinguishers, Fire protection |

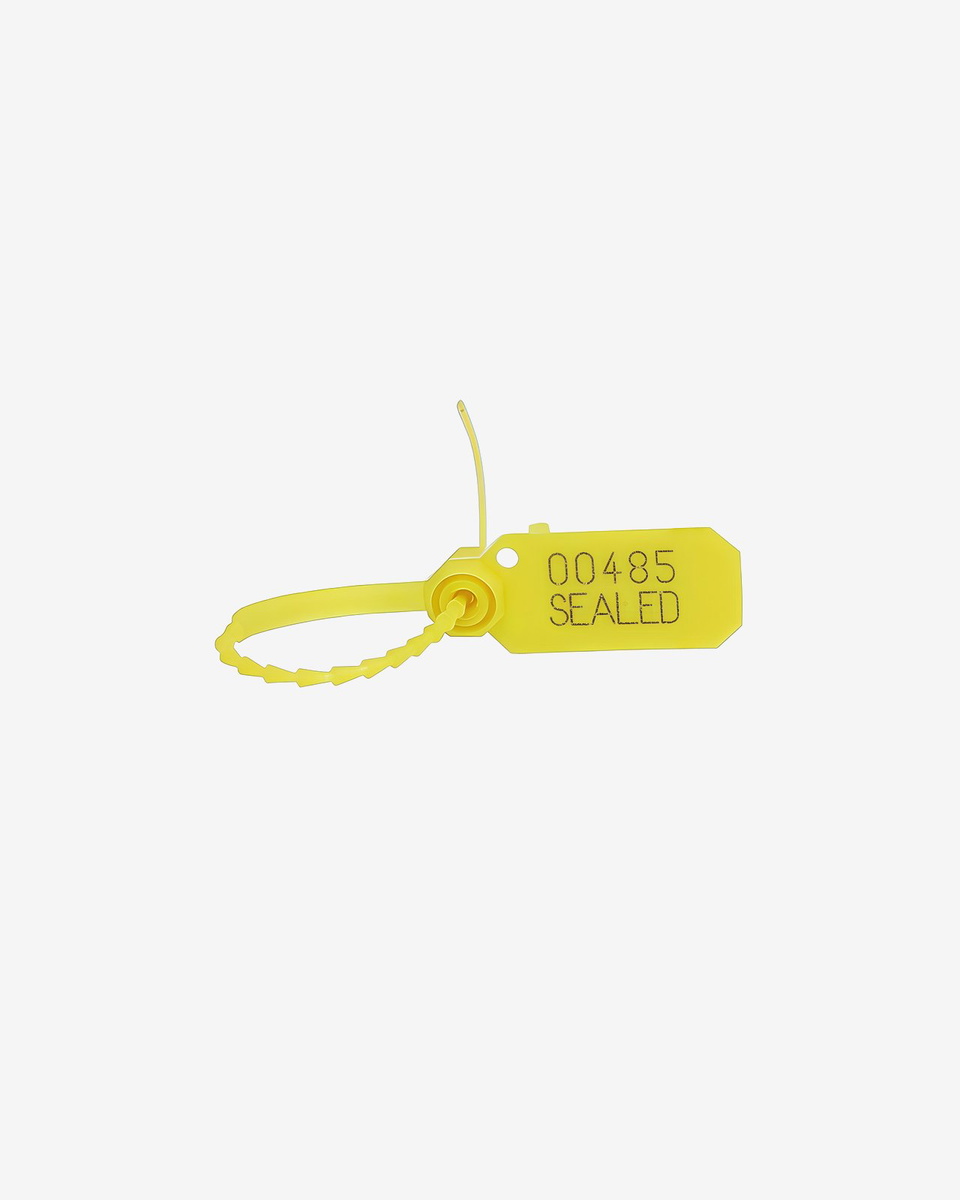

The Extin 2 Fire Extinguisher Seal is specifically designed for securing the safety pin of fire extinguishers. With its ultra-thin 1.6 mm sealing tail, it can be applied easily through the narrow hole of the safety pin. In an emergency, the plastic tail breaks quickly and effortlessly by hand. Each Extin 2 seal features a unique sequential number combined with the imprint “SEALED,” making it easy to document and register every individual extinguisher.
Thanks to its unique design and choice of materials, the Extin 2 Fire Extinguisher Seal is ideally suited for sealing the safety pins of fire extinguishers. The sealing tail fits perfectly through the safety pin hole. A fire extinguisher can only be operated once the pin has been removed, and to remove the pin, the seal must first be broken. Fire extinguishers are sealed to guarantee their functionality and integrity. Certified companies perform annual inspections, after which approved extinguishers are resealed. This makes it immediately visible whether the extinguisher has been checked and is ready for use.
Fire extinguishers must be ready for immediate use in emergencies. For that reason, the Extin 2 is specially designed to break easily when needed. With a breaking strength of only 5 kg, it is the weakest seal in the Navacqs range. For those seeking a slightly stronger option, the One Piece Seal is a suitable alternative.
The Extin 2 Fire Extinguisher Seal features an exceptionally thin tail of just 1.6 mm in diameter, making it one of the slimmest seals available. This thin design contributes to the seal’s low breaking strength, making it suitable not only for fire extinguishers but also for any application requiring a slim and easy-to-thread seal. The smooth surface ensures effortless application and quick removal when needed.
The seal is manufactured from high-quality Polypropylene (PP), a material known for its durability and temperature resistance. The Extin 2 withstands temperatures from -40°C up to +80°C, ensuring long-term performance once applied. With its low breaking strength, the Extin 2 is classified as an indicative seal.
Each Extin 2 Fire Extinguisher Seal is produced with a unique imprint. The standard version comes with the text “SEALED” and a sequential number that is generated only once. Both Navacqs and the manufacturer ensure that each combination is unique. If desired, the numbering can be logged during application to improve tracking and prevent tampering or misuse. In addition to the standard version, custom printing is available. The seal can be personalized with a company name or logo, and a barcode can be added upon request.
You can make the Extin 2 Fire Extinguisher Seal even more distinctive by adding your own custom print. It is possible to include your logo or company name on the seal. Below are the available customization options:
Product Name: Extin 2 Fire Extinguisher Seal
Seal Color: Red, Blue, Yellow
Print Color: Black
Text Printing Available: Yes
Logo Available: No
Unique Numbering Available: Yes
Barcode Available: No
Minimum Order Quantity: 5,000 pieces
Estimated Lead Time: Approximately 6–8 weeks
Please contact us for the current lead time.

Request free samples of this product and experience the quality for yourself.
If you want to register fire extinguishers, use a seal with a unique number. This lets you record which seal was applied to each extinguisher.
The Extin 2 has a unique number and fixed print. This makes it possible to track per extinguisher whether and when it was checked.
Typical applications:
registration after servicing
inspection per individual extinguisher
administration and inspection
The Extin 2 is a plastic seal for fire extinguishers with a breaking strength of around 5 kg and a unique number. You insert the seal through the safety pin and pull it tight.
The seal breaks immediately when you pull out the safety pin. Thanks to the numbering, each seal can be identified and registered individually.
Applications:
fire extinguishers
situations requiring registration
The Extin 2 has a number so each seal can be identified individually. This lets you record which seal was placed on each fire extinguisher. During inspection, the number can be noted down. If the seal is missing or has been replaced, you can immediately see that the extinguisher has been opened.
Practical use:
note the number when applying
check during inspection
quickly identify discrepancies
An Extin 2 has a breaking strength of around 5 kg. This means the seal breaks by hand, but less easily by accident than a lighter seal.
The slightly higher breaking strength means the seal is less likely to break accidentally, while still being immediately breakable in an emergency.
Comparison:
Mini Seal 140: 2 kg
Extin 2: ±5 kg
An Extin 2 has a unique number and is used for registration. A simple seal without a number is only used to see whether something has been opened.
With a numbered seal, you can track what happened per fire extinguisher. Without a number, you can only see whether the seal is still intact.
Brief difference:
Extin 2: inspection + registration
without a number: visual use only
Article number: 01-05-2201-03
