| Property | Value |
|---|---|
| Article number | 01-02-1102-02 |
| Breaking strength | 240 kg |
| Cable length | 220 mm |
| Colour | Blue |
| Diameter | 1,8 mm |
| Length | 21 cm |
| Material | Aluminium, Steel |
| Numbering | Unique and ascending |
| Printing | SEALED |
| Usable length | 22 cm |
| Industry | Transport & Logistics |
| Application | Electronic devices, Trucks |

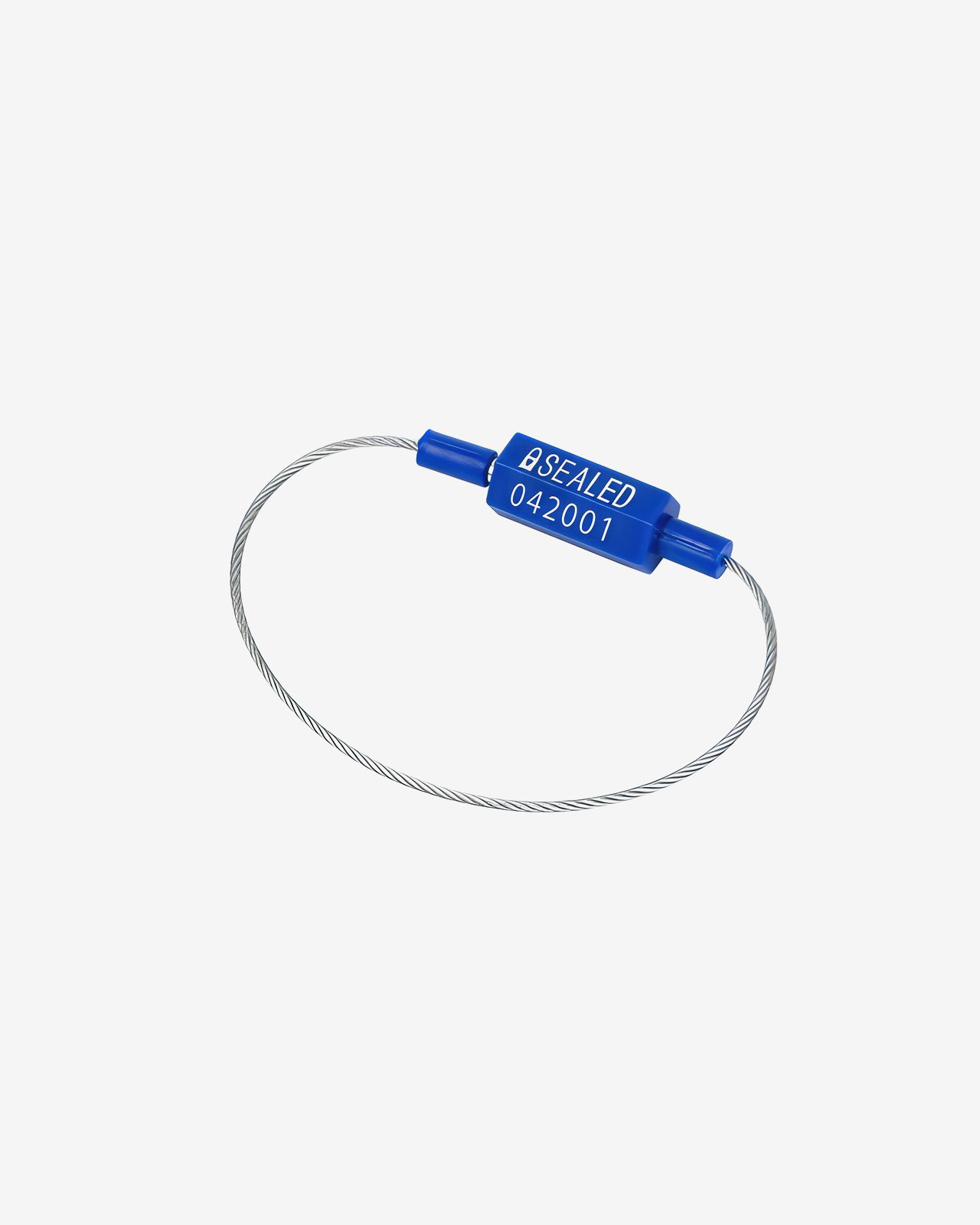

The Cable Seal 220 is a reliable fixed-length cable seal designed for applications where safety and control are essential. It consists of a 220 mm galvanized steel cable with a 1.8 mm diameter and a durable ABS housing. The internal steel locking mechanism provides a high breaking strength of 240 kg. This seal is ideal for securing machines, valves, trucks, and other assets where reuse or tampering must be prevented.

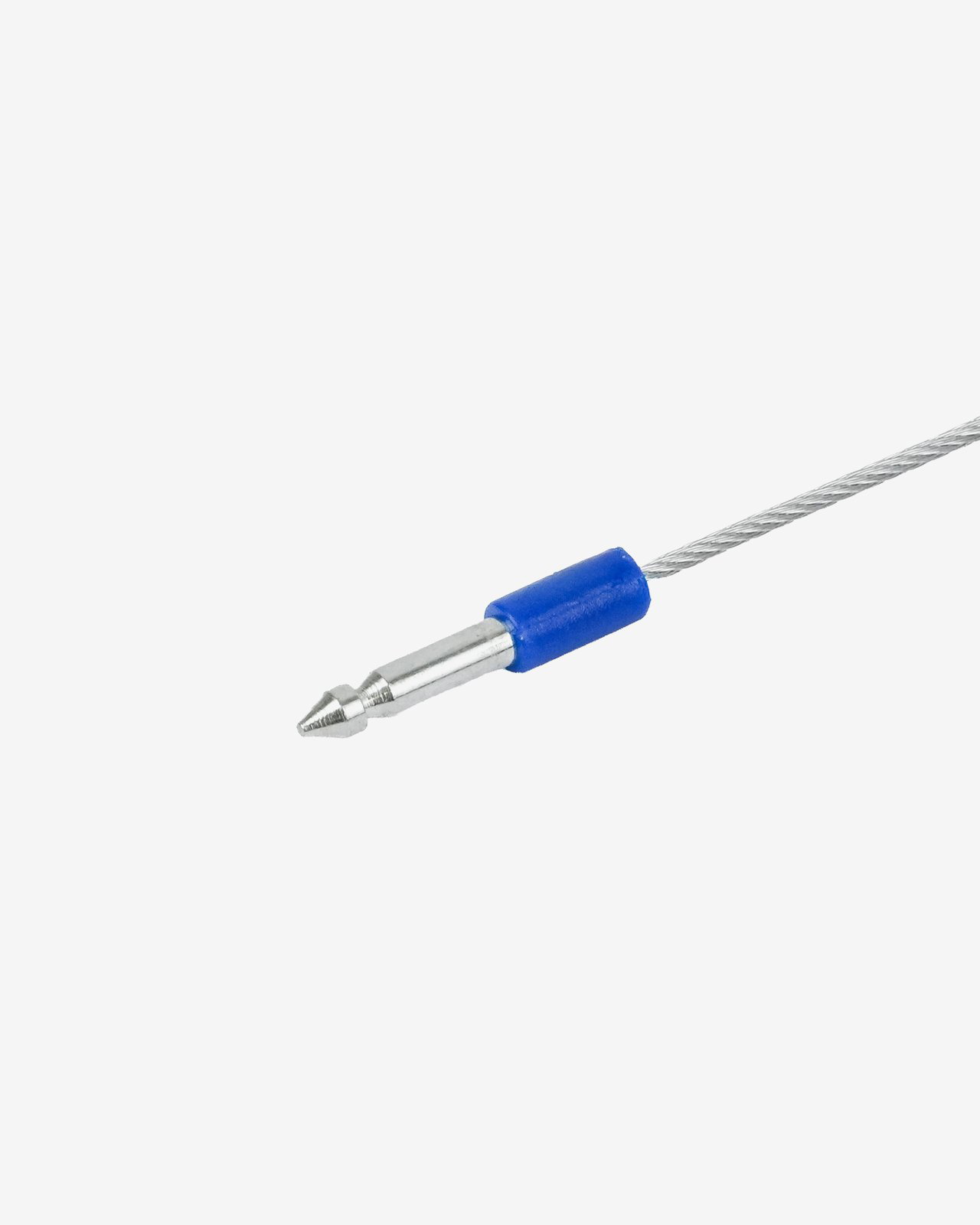

Unlike adjustable cable seals, the Cable Seal 220 has a fixed operational length. The pin at the end locks securely into the housing, ensuring that the seal cannot be over-tightened. This design is particularly useful for moving parts or vehicles where excess tension could damage the seal. The fixed length guarantees a stable and secure closure.
The Cable Seal 220 falls under the category of Security Seals and cannot be opened by hand. Constructed with galvanized steel and a solid locking mechanism, the seal achieves a breaking strength of 240 kg. A cable cutter is required for removal. This provides an excellent balance of strength and flexibility, especially in applications subject to dynamic stress or vibration.
The multi-strand steel cable has a total diameter of 1.8 mm. When cut, the individual wires fray apart, making reuse impossible. This provides an immediate visual indication of tampering or unauthorized access.
The Cable Seal 220 is widely used for sealing machines, valves, and technical installations, especially in areas with sensitive equipment. It is also suitable for trucks and TIR lines, providing extra protection against unauthorized access. Its combination of strength, flexibility, and fixed length makes it a versatile and secure choice.
Each Cable Seal 220 is laser-marked with the text “SEALED” and an individual serial number. Both Navacqs and the manufacturer guarantee that every combination is produced only once. Upon request, the seal can be customized with a company name or logo.
Request free samples of this product and experience the quality for yourself.
You use a Cable Seal 220 when a seal shouldn't be pulled fully tight, but still needs to stay firmly in place. The fixed usable length of 220 mm means the seal is always applied with some slack.
That matters for moving parts, such as valves, doors or guards on machinery. The seal moves along and therefore doesn't come under constant tension.
A Cable Seal 220 is a cable seal with a fixed usable length of 220 mm and a breaking strength of 240 kg. The seal consists of a galvanized steel cable, a steel locking system and a plastic housing.
Unlike many other cable seals, you don't pull this seal tighter than its fixed length. This means there's always some room left between the seal and the closure point.
Applications:
machinery
valves and doors
trucks
TIR cables
The Cable Seal 220 has a breaking strength of 240 kg. This means the seal can't be broken by hand, and cutters or cable shears are needed to remove it.
This strength is high enough to prevent unauthorized opening, but for this product the main distinguishing feature is the fixed length. That makes the seal specifically suitable for applications with movement at the closure point.
Comparison:
Cable Seal 180: 300 kg
Cable Seal 150: 330 kg
Cable Seal 220: 240 kg
The fixed length prevents the seal from being pulled tight and therefore under continuous load. With a regular cable seal, you can pull the cable fully tight. With the Cable Seal 220, you can't.
That matters for moving parts or vehicles. Think of a machine valve or door that vibrates or moves during use. Because the seal isn't pulled tight, it experiences less peak load and stays intact better.
Article number: 01-02-1102-02
