One Piece Seal (OPS)
Thin (2.3 mm) and solid seal with breaking strength of 6 kg
| Property | Value |
|---|---|
| Article number | 01-05-3801-01 |
| Breaking strength | 6 kg |
| Colour | Red, Blue, Yellow, Green |
| Diameter | 2,4 mm |
| Length | 34 cm |
| Material | Polypropylene |
| Numbering | Blank |
| Usable length | 27,5 cm |
| Industry | Hospitality & Catering, Industry, Seals in fire protection |
| Application | Fire hose reels, Fire protection |

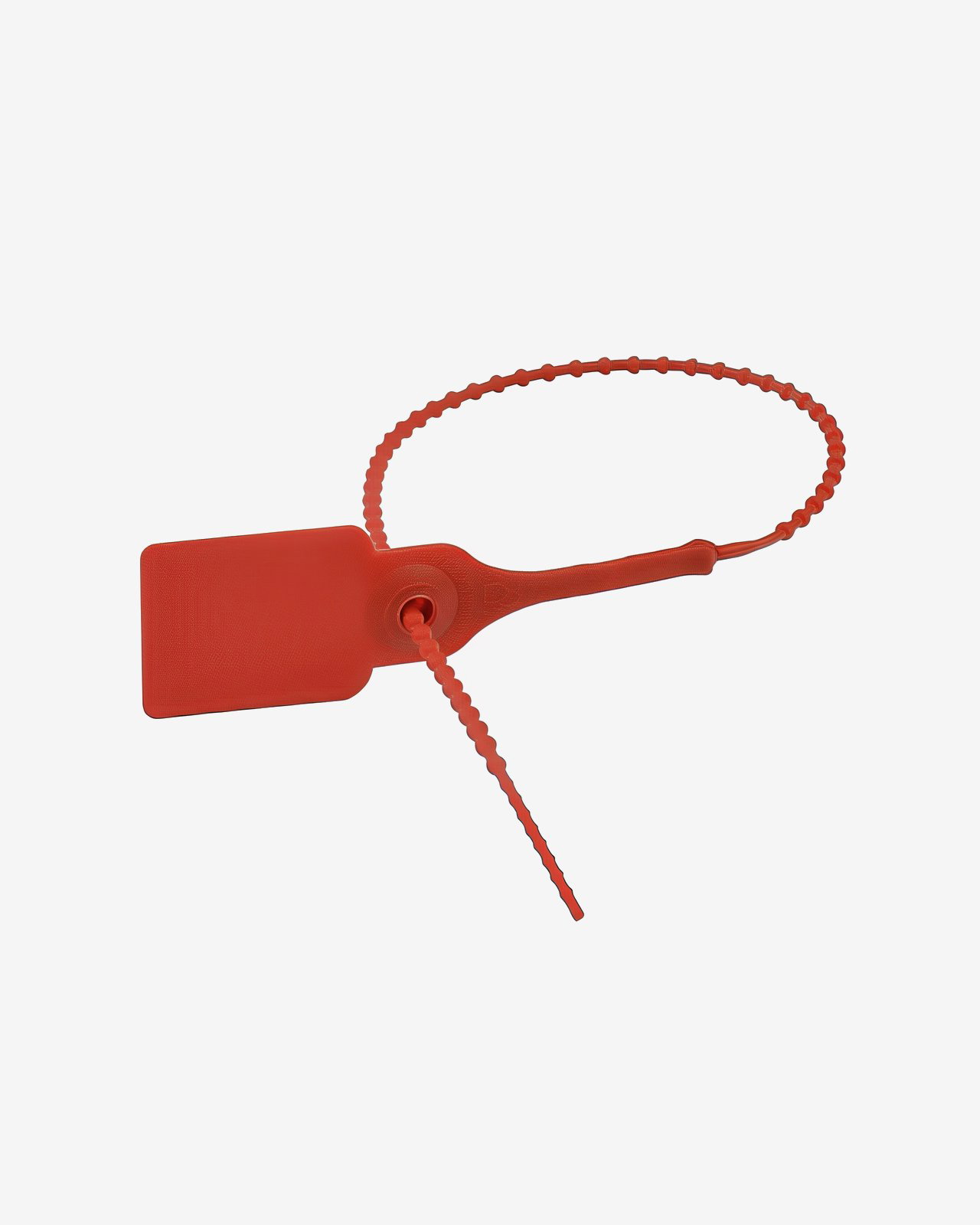

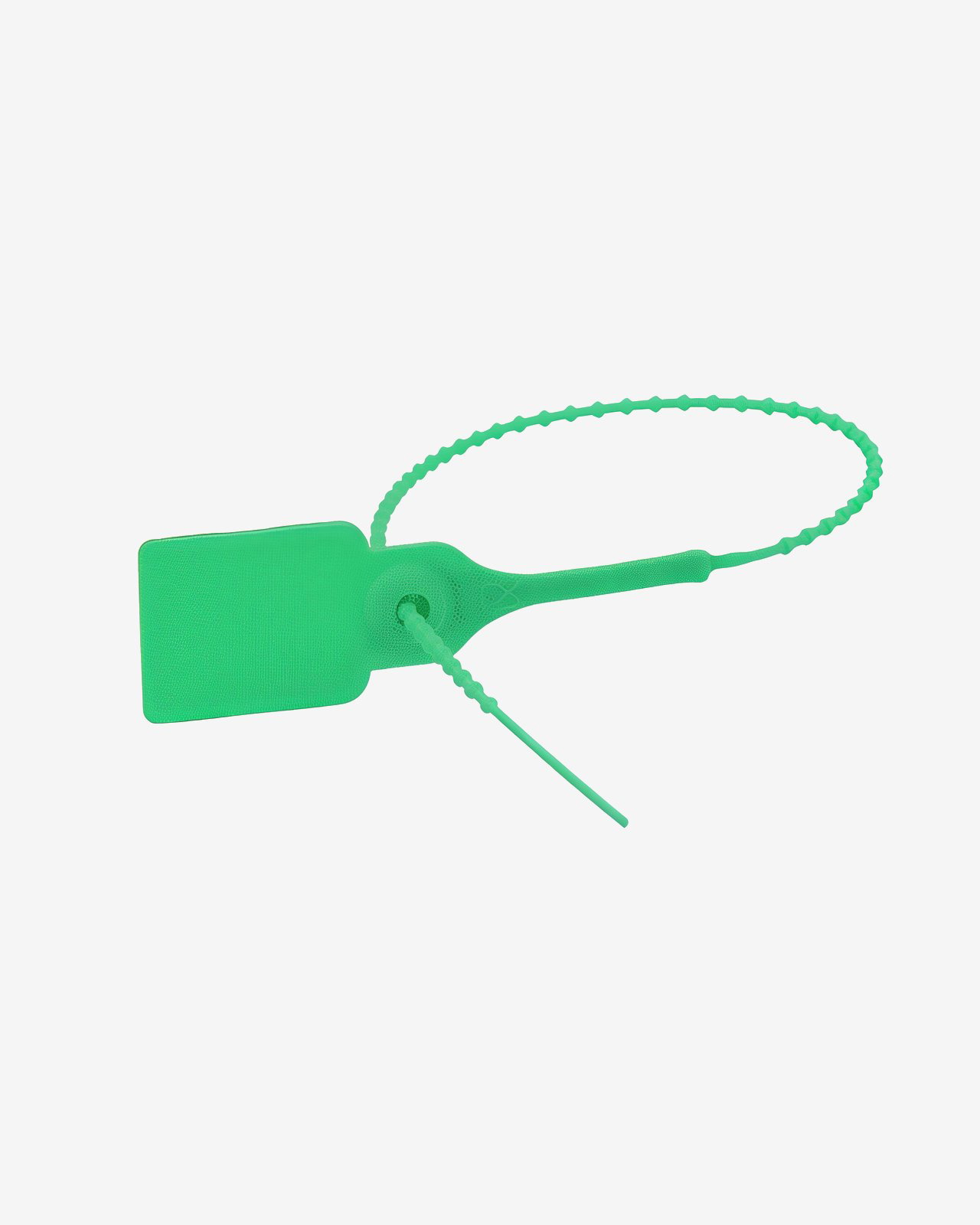

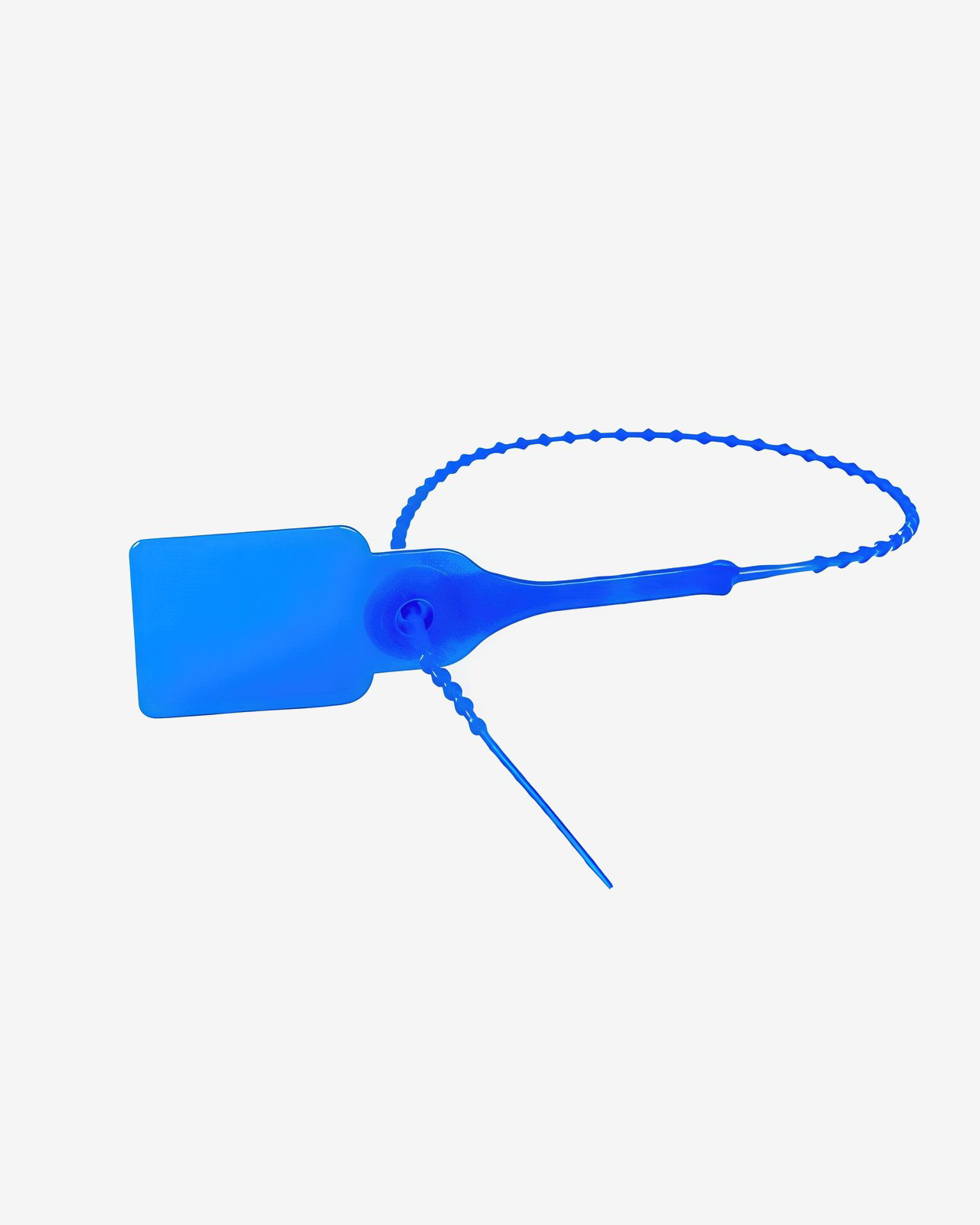

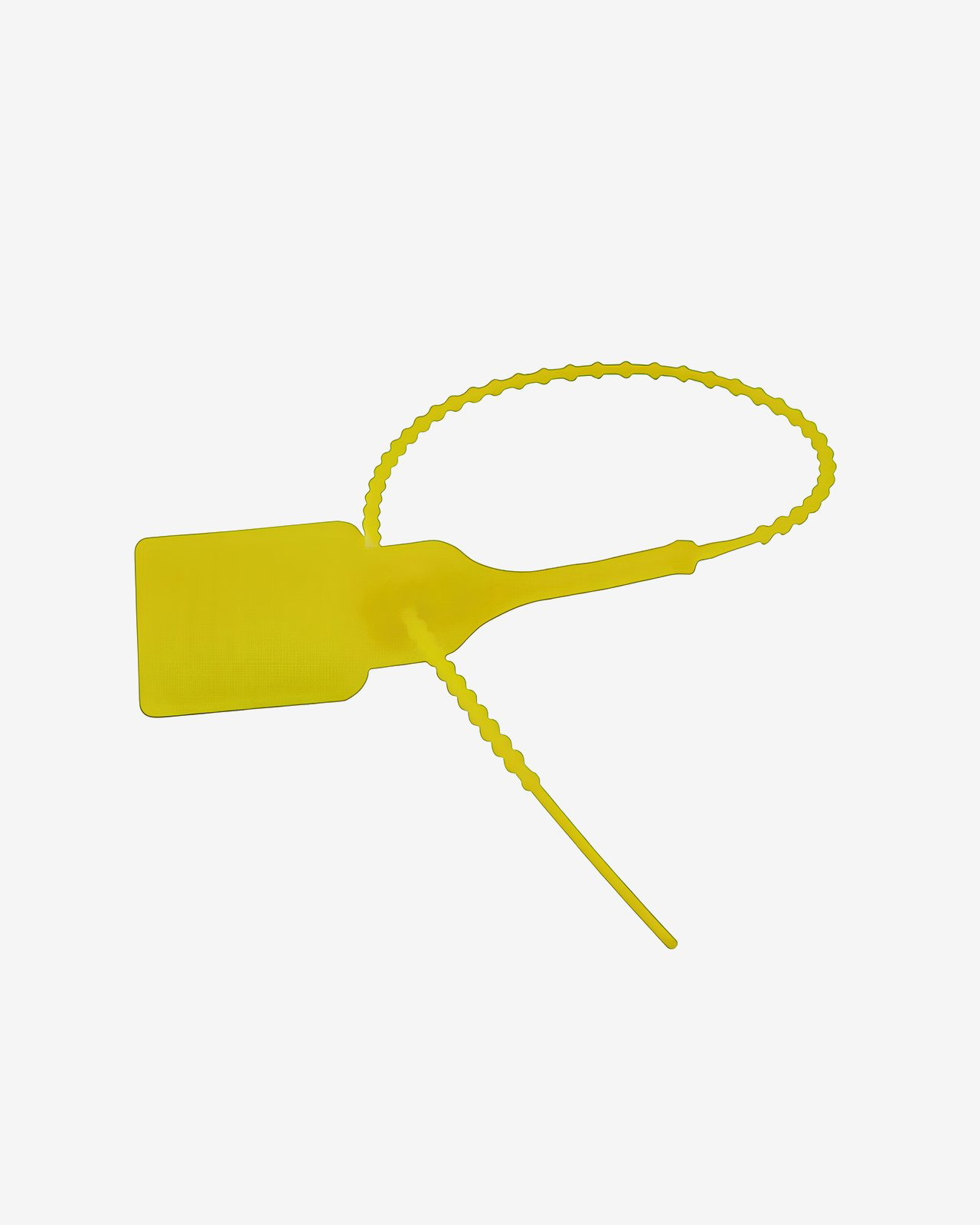

The Pull Tite 300 is designed specifically for sealing fire hose reels to prevent the risk of Legionella contamination. This indicative seal features a 300 mm tail that can be fully tightened for a secure fit. The thin sealing tail gives the seal a low breaking strength of only 6 kg, allowing it to be easily broken in an emergency. The FS-300 is supplied without any imprint as standard but can be custom printed from 1,000 pieces with, for example, a warning message or company logo.
The Pull Tite 300 Fire Hose Reel Seal is developed to secure fire hose reels after inspection. Thanks to the extra-long tail, the seal easily fits around the valve or nozzle of the hose reel. Fire hose reels are inspected and flushed annually by certified companies. After inspection, the approved hose reel is sealed immediately. This not only indicates that the hose reel has passed inspection but also serves as a safety measure. Fire hose reels are intended for emergency use only. Standing water inside the hose can lead to Legionella growth. To prevent this, hose reels are sealed with easily breakable seals such as the FS-300. The FS-300 is available from stock in red, yellow, and green, allowing for immediate visual confirmation that the hose reel is properly sealed.
In case of fire, hose reels must be instantly accessible. The FS-300 has a low breaking strength of only 6 kg, making it one of the easiest-to-break seals in the Navacqs range. It can be removed quickly and safely by hand without tools.
The Pull Tite 300 features a thin tail of just 2.4 mm in diameter. This slim design provides both flexibility and ease of application. Thicker seals can be too rigid for this purpose and unsuitable when fast access is critical. The flexible tail allows for smooth installation and quick removal when needed.
The FS-300 is manufactured from high-quality Polypropylene (PP), a durable and temperature-resistant plastic. It can withstand temperatures from -40°C to +80°C, ensuring reliable performance over time. As an indicative seal, it is designed to show clear evidence of use rather than act as a physical barrier.
The standard Pull Tite 300 Fire Hose Reel Seal is supplied without imprint or numbering. However, it can be customized from 1,000 pieces with a company name, logo, barcode, or warning text. This makes it ideal for organizations seeking improved traceability or brand identification.
You can make the Pull Tite 300 Fire Hose Reel Seal even more distinctive by adding your own custom print. Below are the customization options:
Product Name: Pull Tite 300 Fire Hose Reel Seal
Seal Color: Red, Blue, Yellow, White, Green
Print Color: Black or white (depending on seal color)
Text Printing Available: Yes
Logo Available: Yes
Unique Numbering Available: Yes
Barcode Available: Yes
Minimum Order Quantity: 1,000 pieces
Estimated Lead Time: Approximately 1–2 weeks
Please contact us for the current lead time.

Request free samples of this product and experience the quality for yourself.
A fire hose reel is sealed to prevent unnecessary use. If a reel is used without an emergency, water stays standing in the hose, where bacteria such as legionella can grow. If the reel is used later, this contaminated water can be released. And that's something you want to avoid.
The seal shows whether the reel has been used. If the seal is broken, the reel needs to be checked and flushed.
Typical functions:
preventing unnecessary use
making use visible
safeguarding hygiene and safety
A seal prevents a fire hose reel from being used without reason. This keeps the hose closed off and prevents unnecessary standing water.
If a reel has been used and the seal is missing, you know the hose needs to be flushed. This reduces the risk of legionella in the system.
In practice:
seal intact → not used
seal broken → check and flush

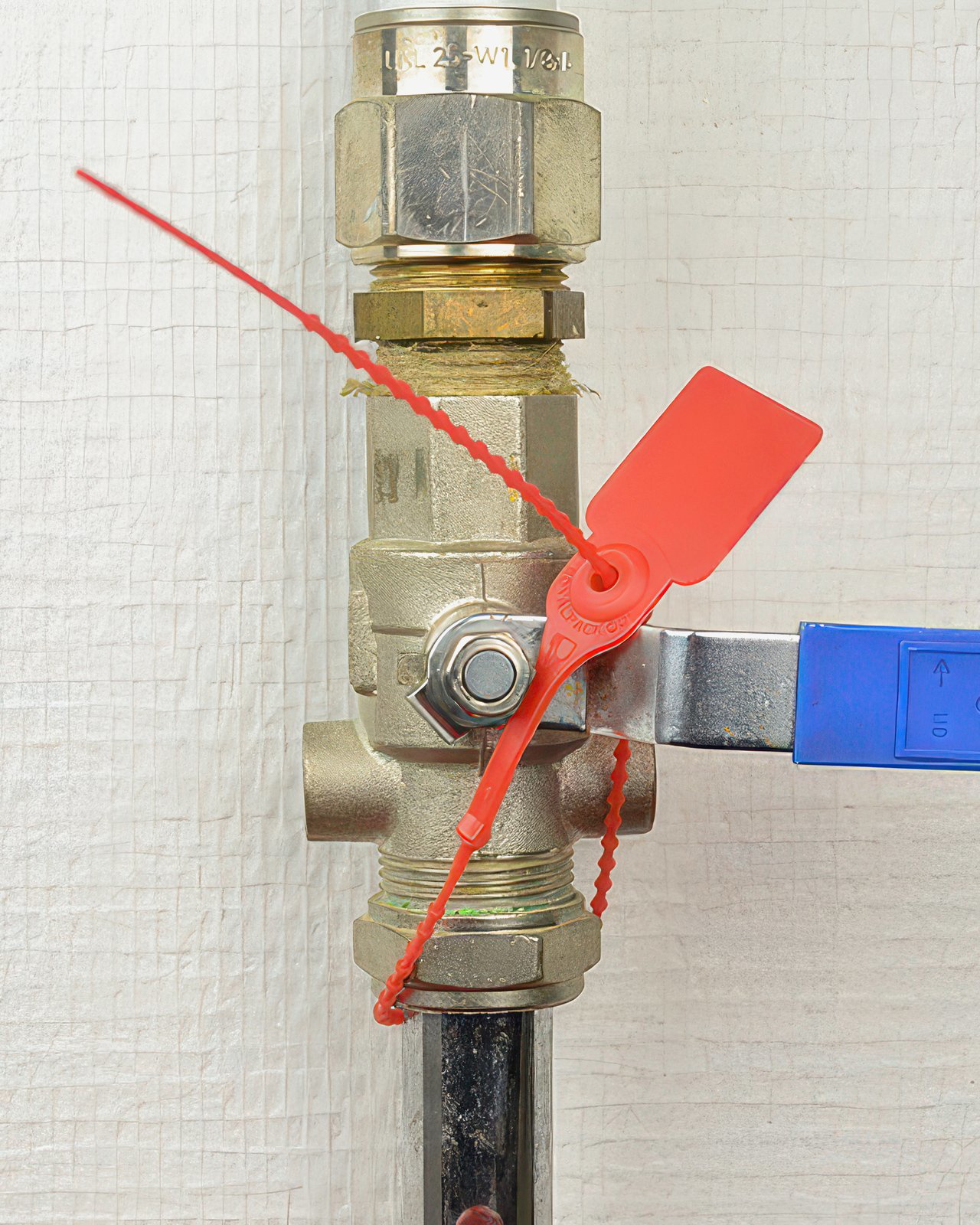

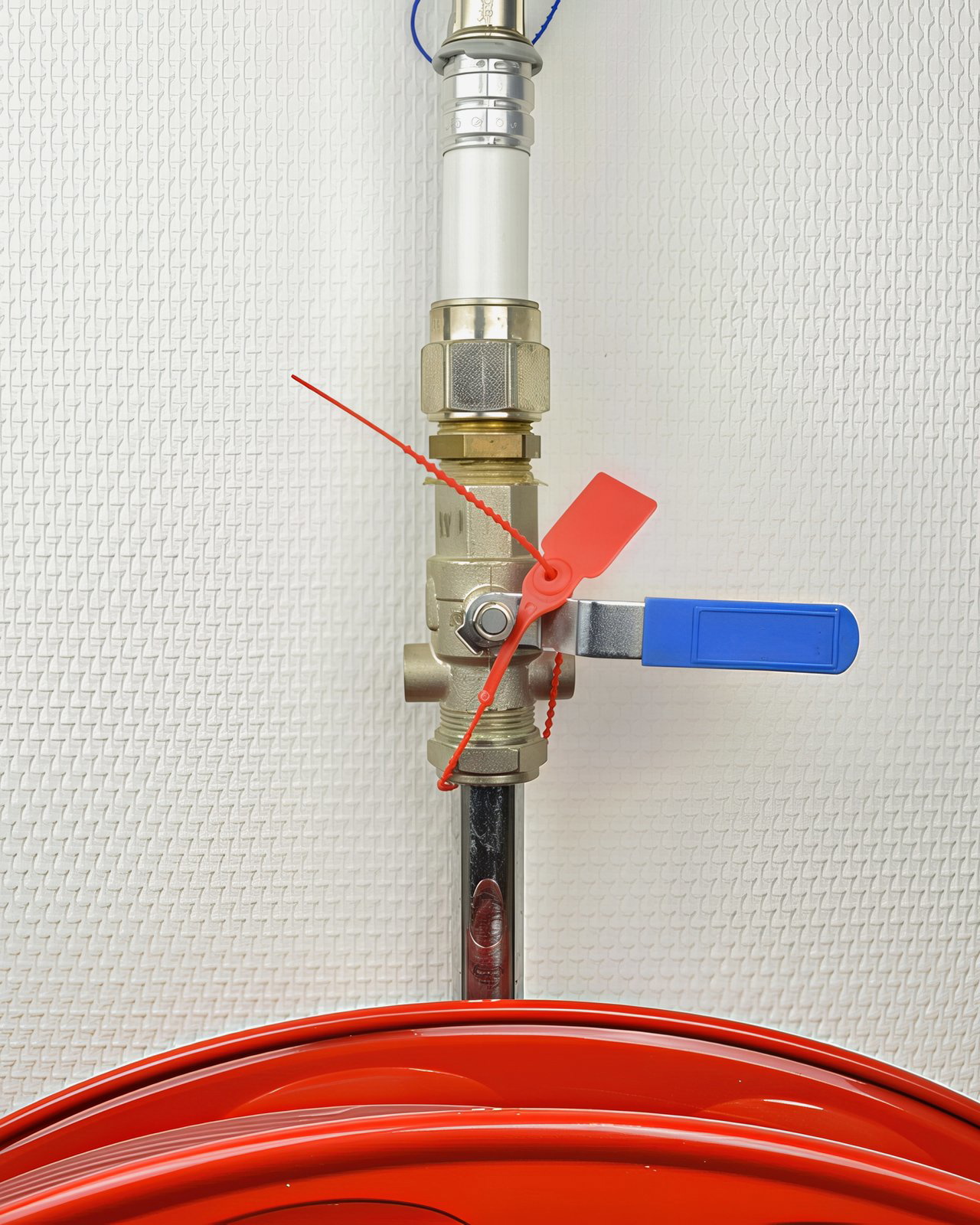

The FS-300 is a plastic seal with a length of 300 mm and a breaking strength of 6 kg, specifically for fire hose reels. The seal is placed around the tap or valve and pulled fully tight.
The seal breaks immediately by hand when the reel is used. Thanks to its length, the seal fits easily around different types of reels.
Applications:
fire hose reels
water connections
The FS-300 has a breaking strength of 6 kg. This means the seal can be broken by hand without tools.
The strength is chosen so the seal stays in place during normal use, but breaks immediately in an emergency when the reel is used.
Comparison:
fire extinguisher seals: 2-5 kg
FS-300: 6 kg
Article number: 01-05-3801-01
