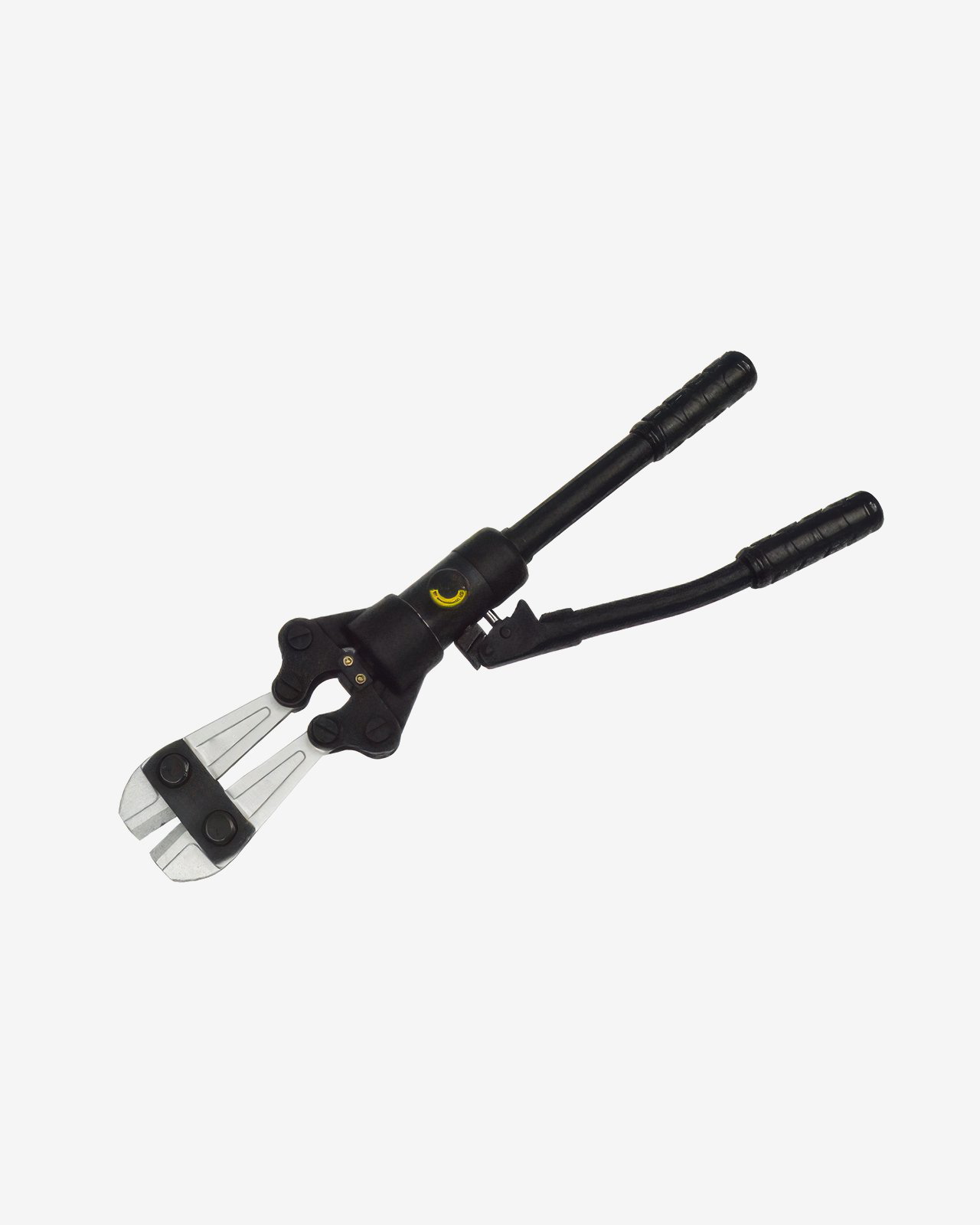

Hydraulic bolt cutter (with barrier seal)

Specifications

Property	Value
Article number	11-01-0007-00
Length	54 cm
Industry	Construction & Infra, Customs, Transport & Logistics, Wholesale

Description

The Hydraulic Bolt Cutter is an efficient and easy-to-use cutting tool specifically designed for cutting metal objects such as Bolt Seals and Cable Seals. With its wide cutting jaws and a jaw depth of 10 mm, it requires minimal effort to cut through container seals. These seals have a high breaking strength and are ISO 17712:2013 certified, making them impossible to remove by hand.

Ideal for Cutting Container Seals

The Hydraulic Bolt Cutter enables fast and efficient cutting of metal security seals. Measuring 54 cm in length and 15 cm in width, the cutter is compact and easy to handle. At just 5 kg, it is much lighter and shorter than the 75 cm HB Bolt Cutter, making it highly portable and convenient for on-site use.

Minimal Effort Required

One of the key advantages of the Hydraulic Bolt Cutter is its compact width of only 8 cm, making it easy to handle even in confined spaces. The hydraulic mechanism increases pressure within the cutting jaws as you squeeze the handles, meaning the hydraulic system performs most of the heavy work for you. This results in effortless operation and precise cutting with minimal physical strain.

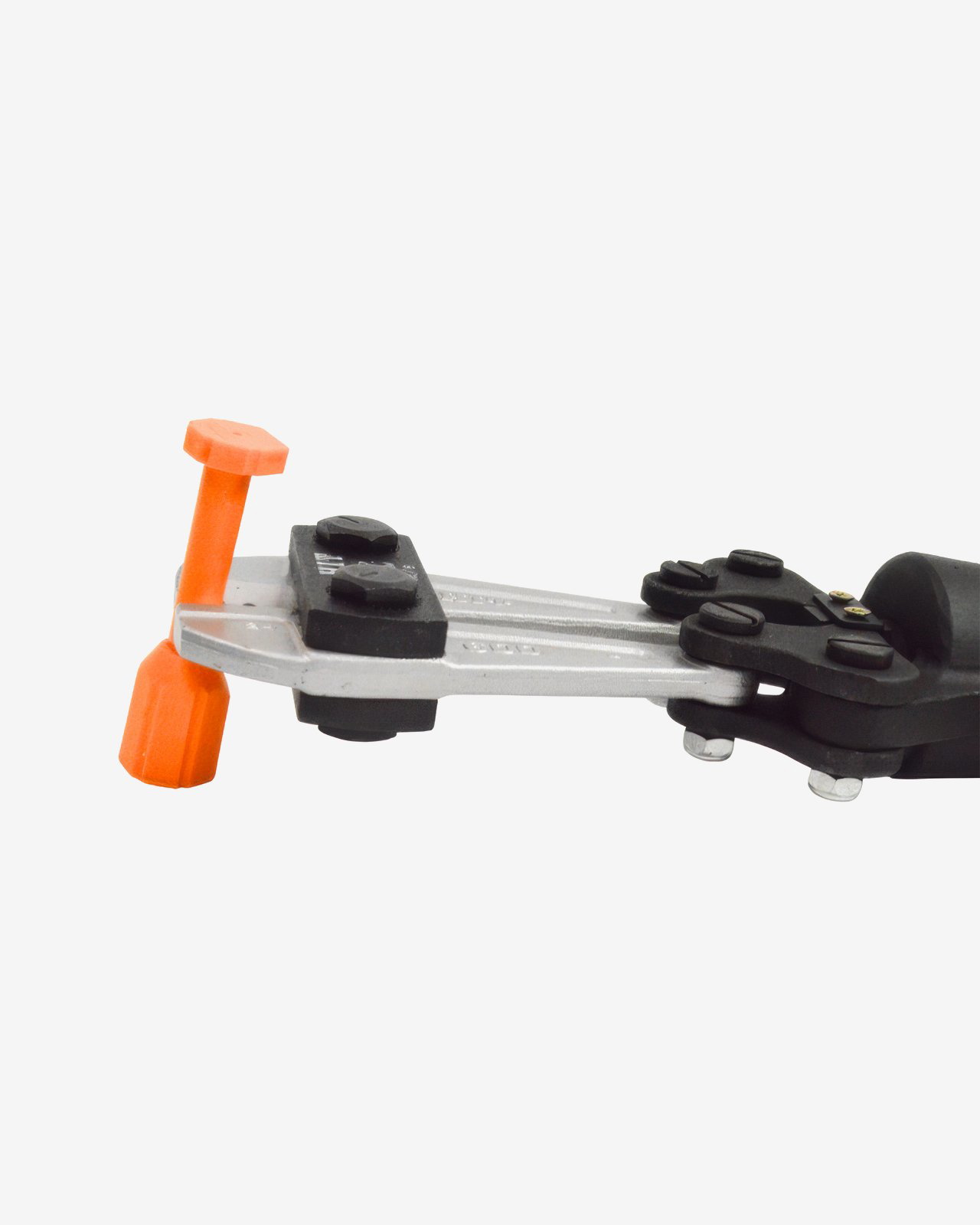

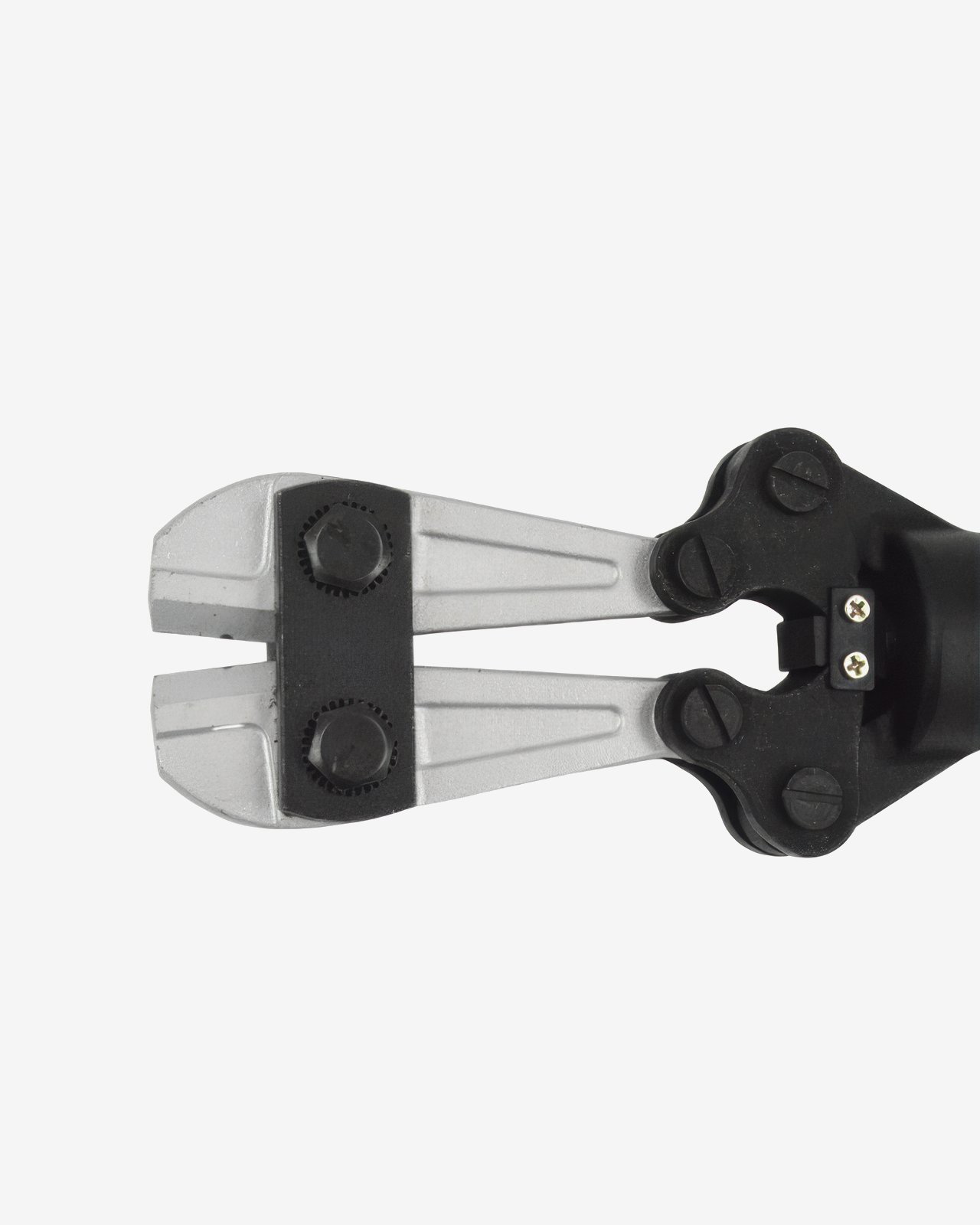

10 mm Jaw Depth for Easy Seal Cutting

With a jaw depth of 10 mm, cutting container seals is quick and simple. This depth is ideal for breaking Bolt Seals up to 8 mm thick, making the Hydraulic Bolt Cutter the perfect choice for professionals who regularly encounter container seals in daily operations.

Durable Construction

The Hydraulic Bolt Cutter is made from a combination of hardened steel and PVC components, ensuring durability and stability even under frequent use. This robust construction guarantees reliable performance over time.

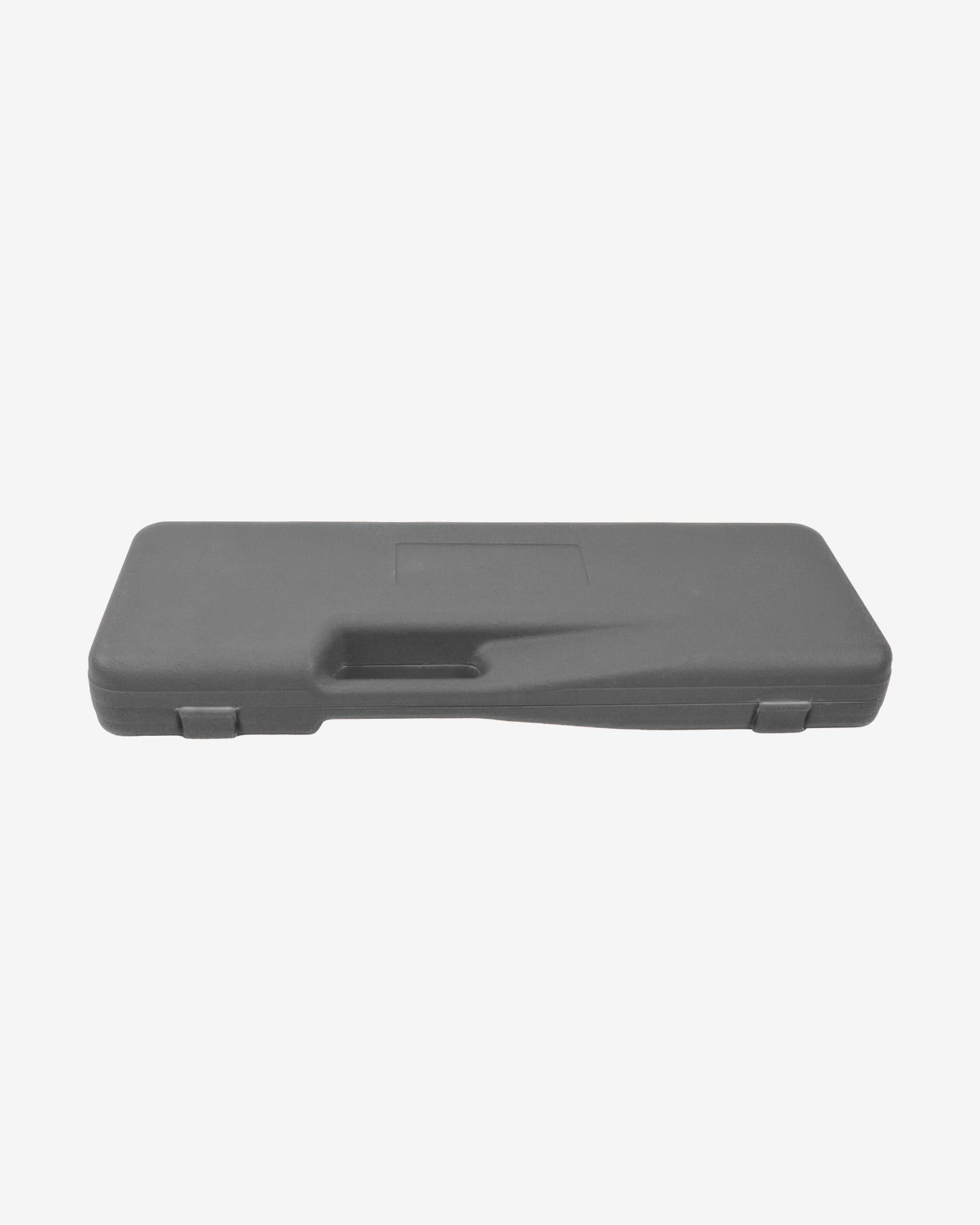

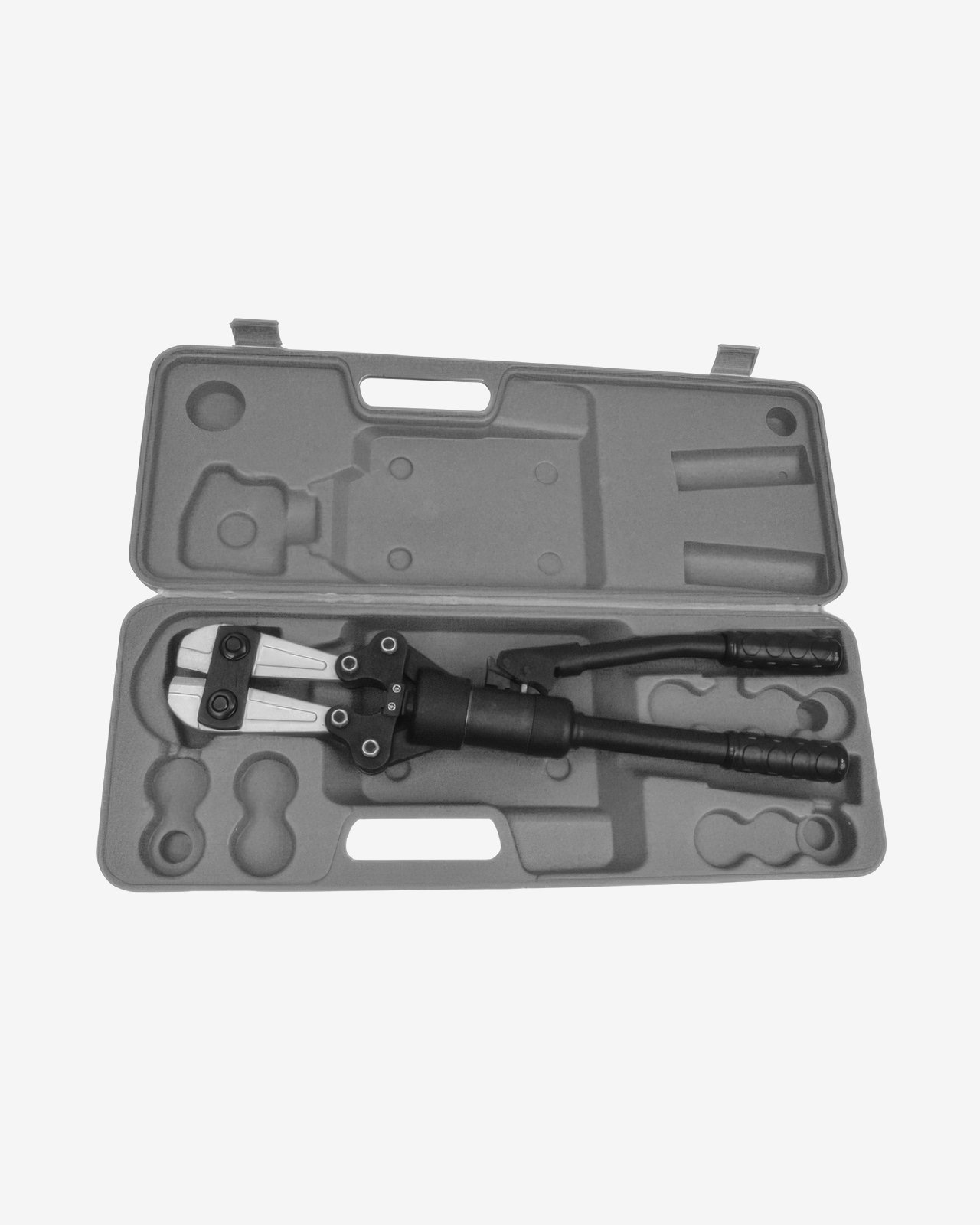

Supplied with Convenient Carrying Case

The Hydraulic Bolt Cutter comes in a sturdy and practical carrying case for easy transport and protection against external elements. Once stored in its case, the tool remains shielded from dust and weather conditions, ensuring long-lasting performance. The case dimensions are 60 cm in length, 22.5 cm in width, and 8 cm in height.

Frequently asked questions

A hydraulic bolt cutter is a compact bolt cutter in which cutting force is built up through a hydraulic system. Instead of squeezing hard in one go, you build up the force step by step through several squeezing motions.

Inside the cutter is a cylinder filled with oil that amplifies the pressure. Each time you squeeze, the force on the cutting jaws increases, until the material is cut through.

The cutter is suitable for cutting container seals such as bolt seals and cable seals.

You choose a hydraulic bolt cutter when you regularly need to break seals and want to do so with as little force as possible.

Because of the hydraulic system, force builds up as you squeeze, so you don't need to apply a lot of force all at once. This is useful when you need to cut multiple seals in a row, or when you'd rather not work with a long, heavy cutter.

With a hydraulic bolt cutter, cutting force is built up through several squeezing motions. The hydraulic system converts this motion into high pressure at the jaws.

In practice:

you squeeze several times
pressure builds up
the seal is cut through

This means the user needs to apply less force than with a traditional bolt cutter.

The hydraulic bolt cutter is suitable for cutting metal seals and smaller metal components.

The cutter is suitable for:

bolt seals up to around 8 mm diameter
cable seals
other metal components within the jaw depth

Because of the smaller jaws, its use is more specific than a long bolt cutter.

A standard bolt cutter relies on leverage (length), while a hydraulic bolt cutter works through pressure build-up via a hydraulic system.

The HB bolt cutter is longer and powerful through leverage.

The hydraulic bolt cutter is more compact and requires less physical effort.

The choice depends on:

available space
required force
frequency of use

Hydraulic bolt cutter

Article number: 11-01-0007-00
