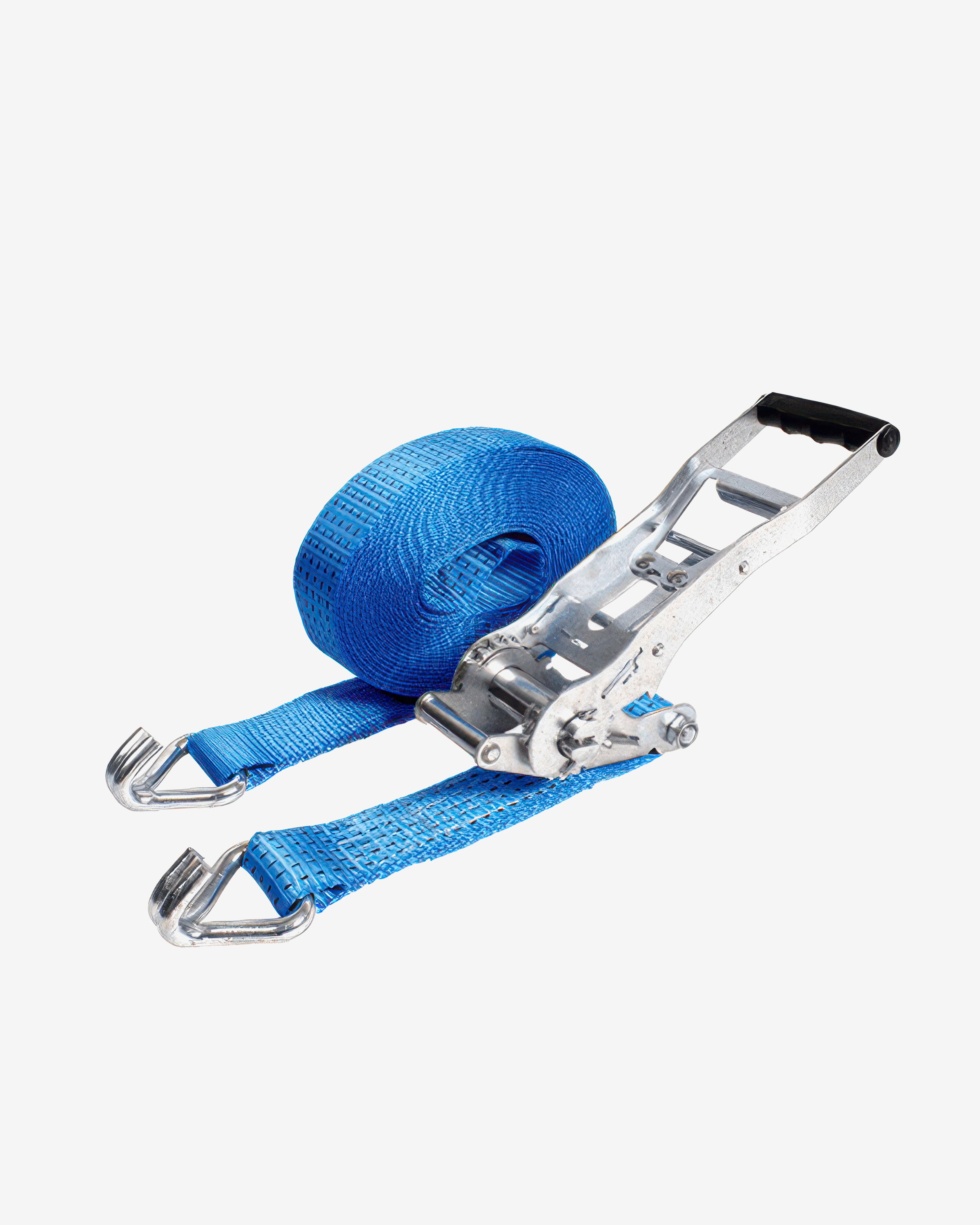

The Ratchet Strap 5 T ERGO is specifically developed for professional transport and fully complies with the European standard EN 12195-2. Equipped with the ERGO ratchet, which is often required in Germany, this strap is perfectly suited for securing heavy loads on trucks, trailers, and semi-trailers. The ERGO ratchet operates in reverse compared to a standard ratchet, allowing higher tension to be achieved with less physical effort. Ideal for securing heavy cargo safely and efficiently.
Suitable for transport in Germany
This Ratchet Strap features a professional ERGO ratchet that provides stronger tension and safer operation. This ratchet type is frequently required by German inspection authorities. Combined with its high breaking strength, it offers a reliable solution for international road transport.
Length: 9 m – Strap Width: 50 mm
With a length of 9 meters and a width of 50 mm, the Ratchet Strap 5 T ERGO provides sufficient reach and grip for securing large or heavy cargo.
Professional ERGO ratchet
The ERGO ratchet is designed for heavy-duty use and operates by pulling downward instead of upward. This design helps reduce strain on shoulders and back, while providing maximum safety and comfort during use.
Breaking Strength: Lc 2,500/5,000 daN
The Ratchet Strap 5 T ERGO offers a breaking strength of 2,500 daN in straight tension and 5,000 daN when looped around the load. It is ideal for securing machinery, vehicles, or other heavy freight.
Ideal for medium to heavy-duty applications
Perfect for logistics and construction-related operations where reliability and strength are essential.
Customization available
This Ratchet Strap can be ordered in alternative colors and lengths. It can also be personalized with your company name or logo. Navacqs offers tailor-made solutions for professional transport requirements.
This video comes from YouTube. You can watch it here if you accept marketing cookies.
You tension an ERGO ratchet by moving the handle downward, while a standard ratchet is operated upward. This means with an ERGO ratchet, you use your body weight instead of just arm strength.
You notice this especially with heavier cargo. Pushing down gives more control and requires less effort, particularly when multiple straps need to be tensioned one after another.
For example: when securing machinery on a trailer, an ERGO ratchet lets you build up tension faster and more consistently than a standard ratchet.
You use an ERGO strap when higher force is needed when tensioning, or when many straps are used one after another.
This applies, for example, to:
heavy machinery or steel structures
transport requiring multiple straps per load
situations involving prolonged work with straps
Because you work downward, you're less likely to run short on force when tensioning. That makes the difference for heavier applications or intensive use.
Germany has stricter guidelines for cargo securing (VDI 2700). These focus on applying sufficient force when tensioning straps.
An ERGO ratchet helps achieve that force more consistently, because you can use your body weight. This reduces the chance of a strap being applied too loosely.
For example: during roadside inspections, cargo is checked to see if it's secured tightly enough. This is easier to reproduce with an ERGO ratchet than with a standard one.
RatchetStrap5TERGO
Article number: 06-10-0007-02
